AHS 41


AHS 41 | 17jewels.info - The Movement Archive

AHS 41

Description

The AHS caliber 41 is similar in size and functions to the caliber 40. The only difference is, that the balance wheel runs in synthetic jewels, which is good for the precision, but bad for the survival of bad shocks.

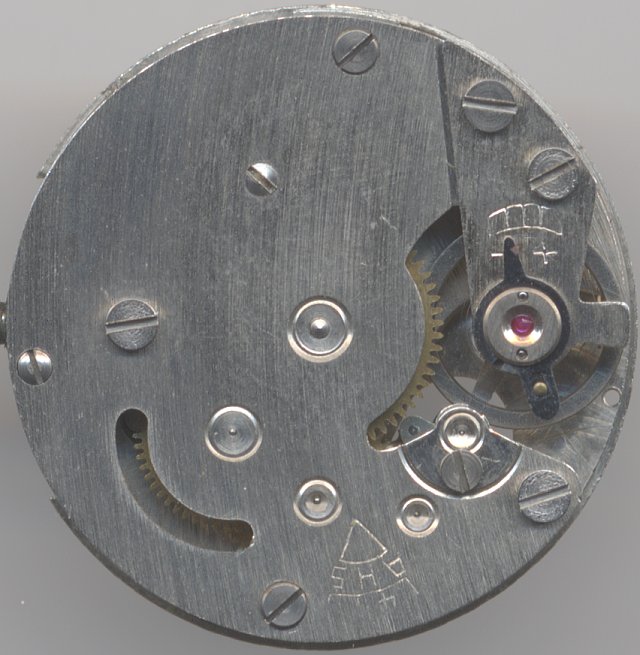

This movement is also available in different versions; the one displayed here has got a double plate on the balance.

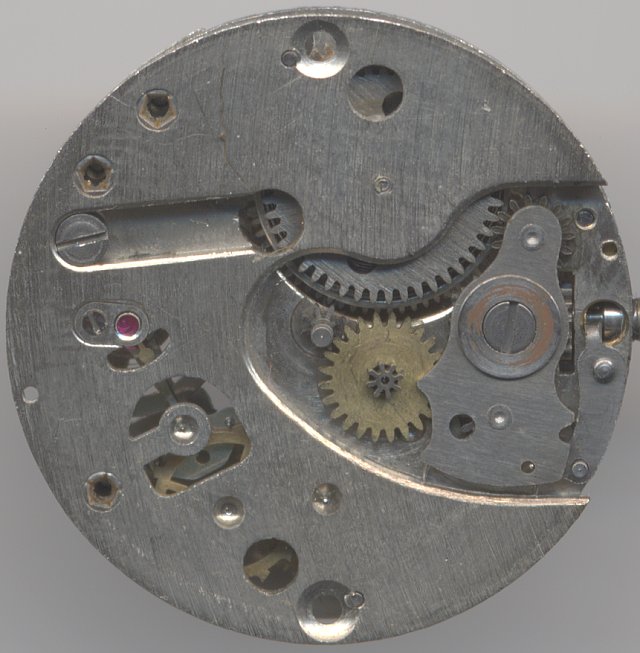

AHS 41: AHS 41 dial side view

AHS 41 dial side view


Technical data

Manufacturer:AHS
Caliber:41
Size:10 1/2'''
A/h:18000
Number of jewels:4
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever, escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Features:
  • s (decentral seconds)
References: Flume: 1962 26

Usage gallery

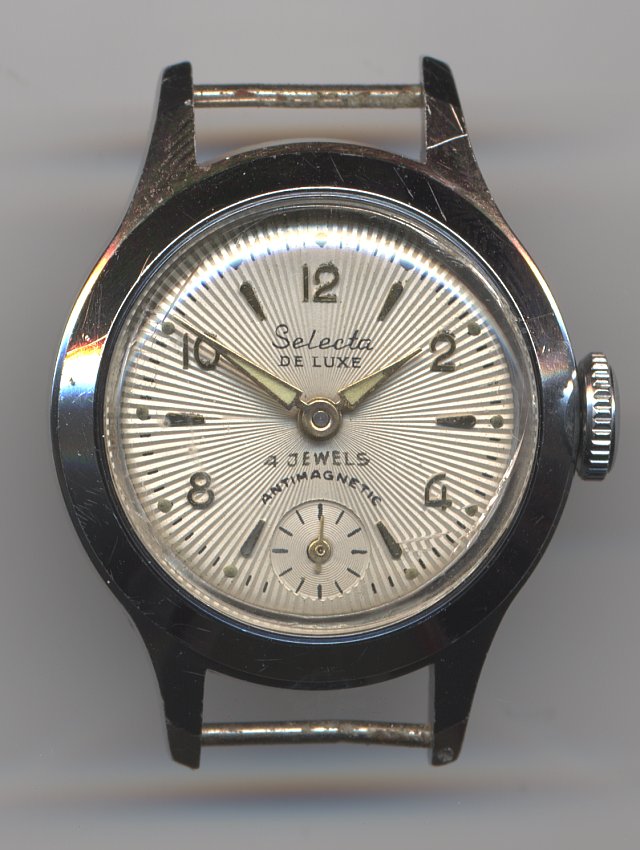

AHS 41: Selecta de Luxe ladies' watch

Selecta de Luxe ladies' watch
