Description

The AS 1051 is a ladies' watch form movement, which still has got the older, larger size of 5 3/4 x 8 3/4 lignes. Due to its sice and the missing shock protection, it was probably made in the 1940ies.

AS 1051: AS 1051 dial side — AS 1051 dial side

Technical data

Manufacturer:	AS
Caliber:	1051
Size:	5 3/4 x 8 3/4'''
A/h:	18000
lift angle:	52.23°
Number of jewels:	15
Escapement:	Pallet lever
Balance types:	Nickel screw balance
Shock protection(s):	none
Balance bearing / direction hairspring:	Counterclockwise
Moveable stud:	no
Adjust mechanism:	Long regulator arm
Construction:	lever escape wheel, seconds wheel, third wheel, center minute wheel mainspring barrel
References:	Flume: 1947 119
Mentioning in literature (years):	1964

Usage gallery

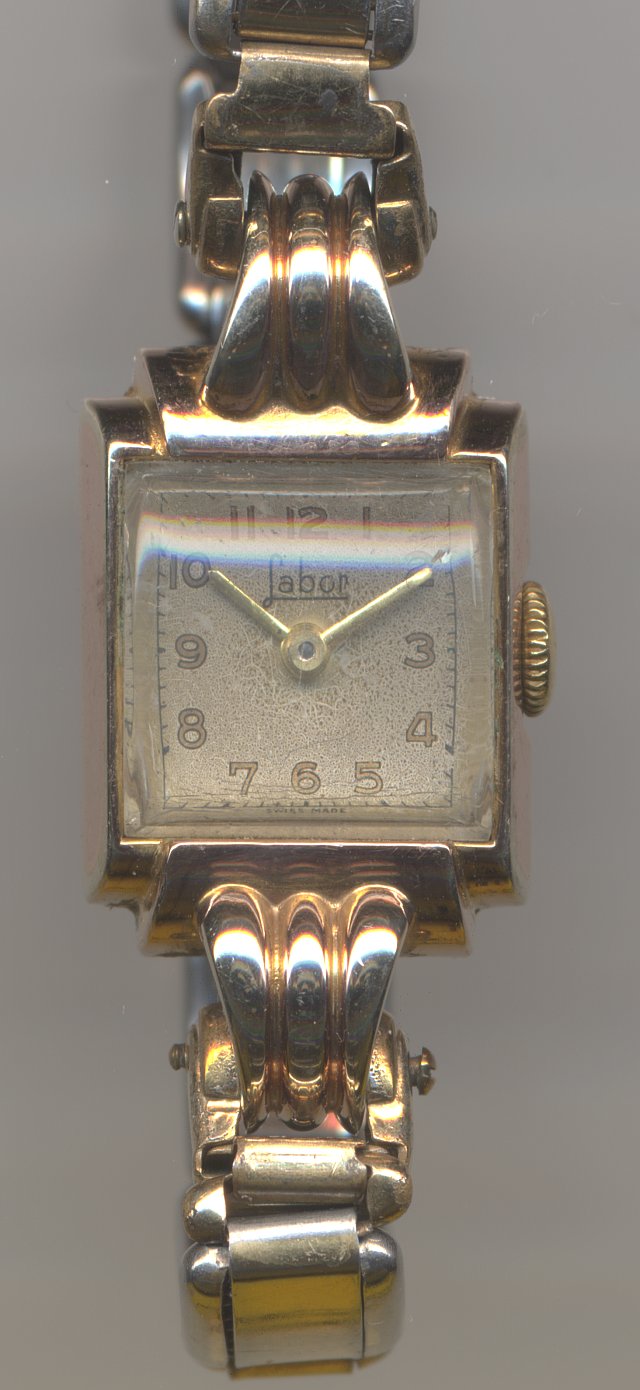

AS 1051: Labor ladies' watch — Labor ladies' watch

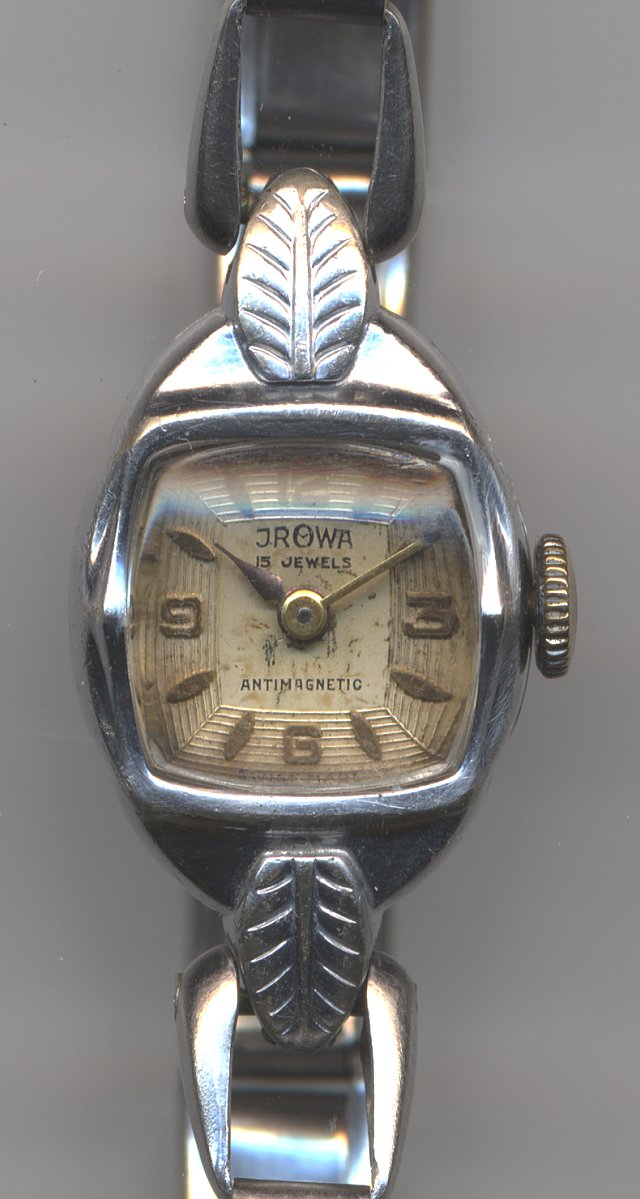

AS 1051: Irowa ladies' watch — Irowa ladies' watch
