AS 1180

Description

The AS 1180 is a typical ladies` watch movement from the mid of last century. It is typical, since one the one hand, its diameter measures the familiar 8 3/4 lignes, and on the other hand, since it builds rather high due to the construction of the direct driven center second hand mechanism.

The AS 1180 already uses an Incabloc shock protection system for the screw balance, a long regulator arm for better fine-tuning and three cap jewels for anchor- and second wheel. The upper plate is quite small (compared to e.g. an ETA 1301) and even contains two chatons for a more precise location of the jewels.

Of course, on the dial side, you`ll find a yoke winding system and you`ll also notice two cap jewels.

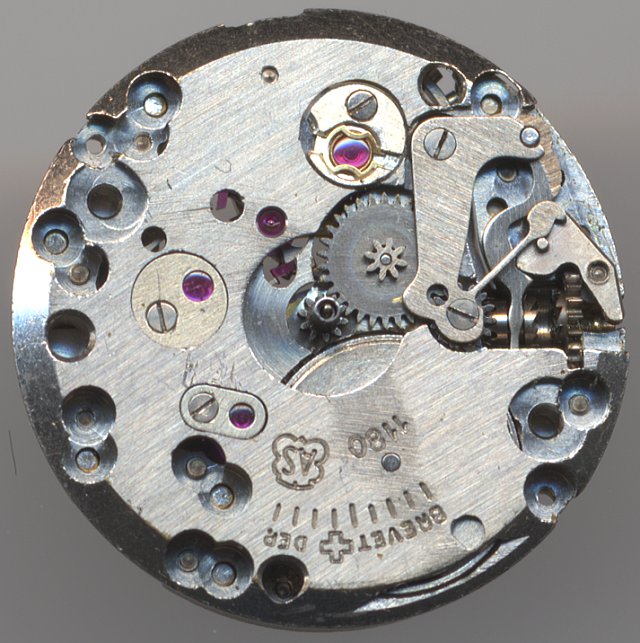

AS 1180: AS 1180 dial side

AS 1180 dial side

Technical data

Manufacturer:AS
Caliber:1180
Size:8 3/4'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Features:
  • SCD (direct center seconds)
References: Flume: 1952 2

Usage gallery

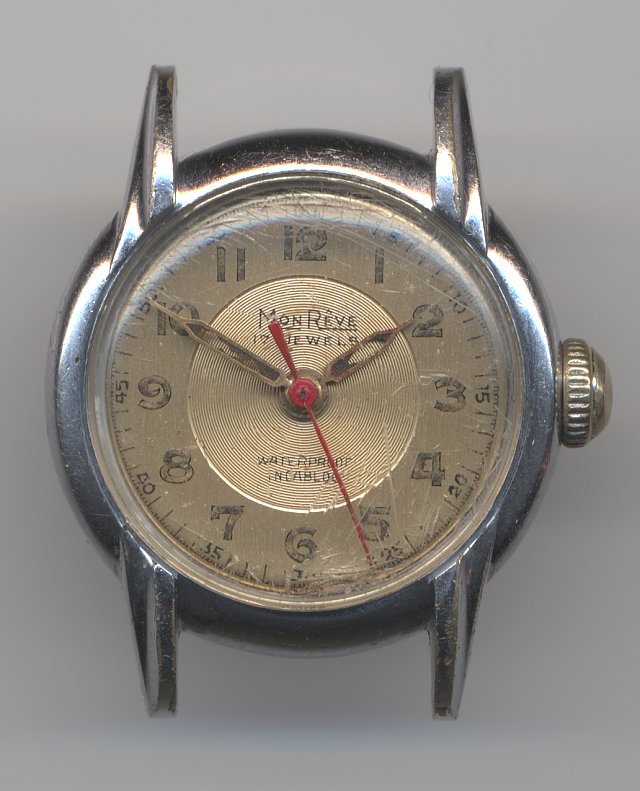

AS 1180: MonReve ladies' watch

MonReve ladies' watch
