AS 175


AS 175 | 17jewels.info - The Movement Archive

AS 175

Description

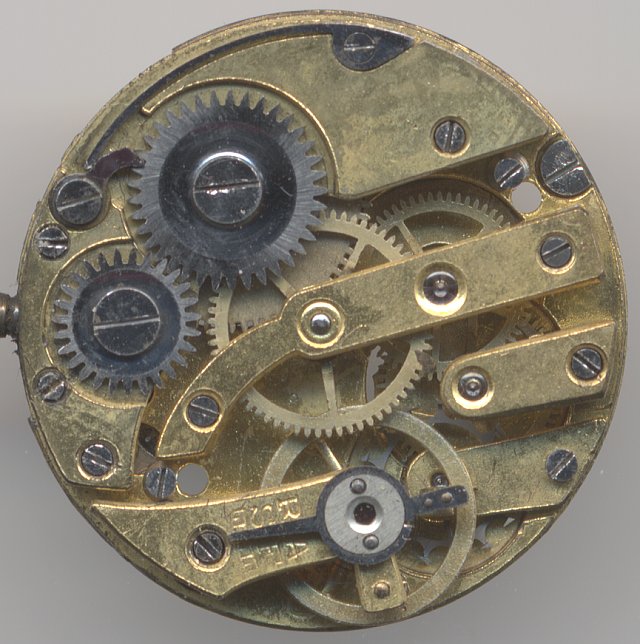

The movement shown here is a pre WW-II cylinder movement by AS, most probably an AS 175, at least as identified by the Flume K1 Werksucher. Since there are also two stamped digits on the dial side, there’s a small possibility, that this movement is one of its precessors, maybe an AS 67.

It has got a cylinder escapement and a classically constructed gear layout with distinct bridges. Altogether, only seven jewels were used. Those kinds of movements are as precise as a chronometer, they might gain or lose several minutes a day and from time to time even stop. The specimen displayed here does exactly that, too.

An interesting fact is, that one the dial-side there’s a rocking bar winding mechanism, which winds the mainspring there, but on the movement side, there’s the click spring for it. And what the crown wheel of the winding system is for, is unknown, since it has no use at all.

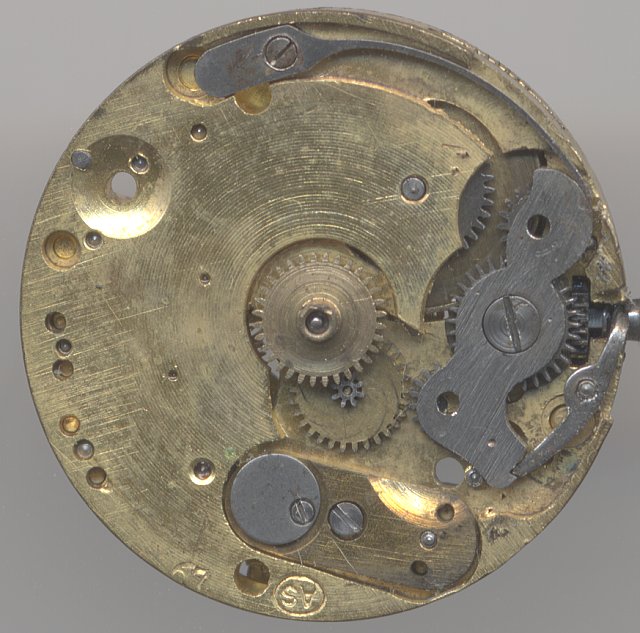

AS 175: AS 175 dial side

AS 175 dial side


Technical data

Manufacturer:AS
Caliber:175
Size:10 1/2'''
A/h:18000
Number of jewels:7
Escapement:Cylinder
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • escape wheel
  • seconds wheel
  • third wheel, center minute wheel
  • mainspring barrel
References: Flume: 1947 101

Usage gallery

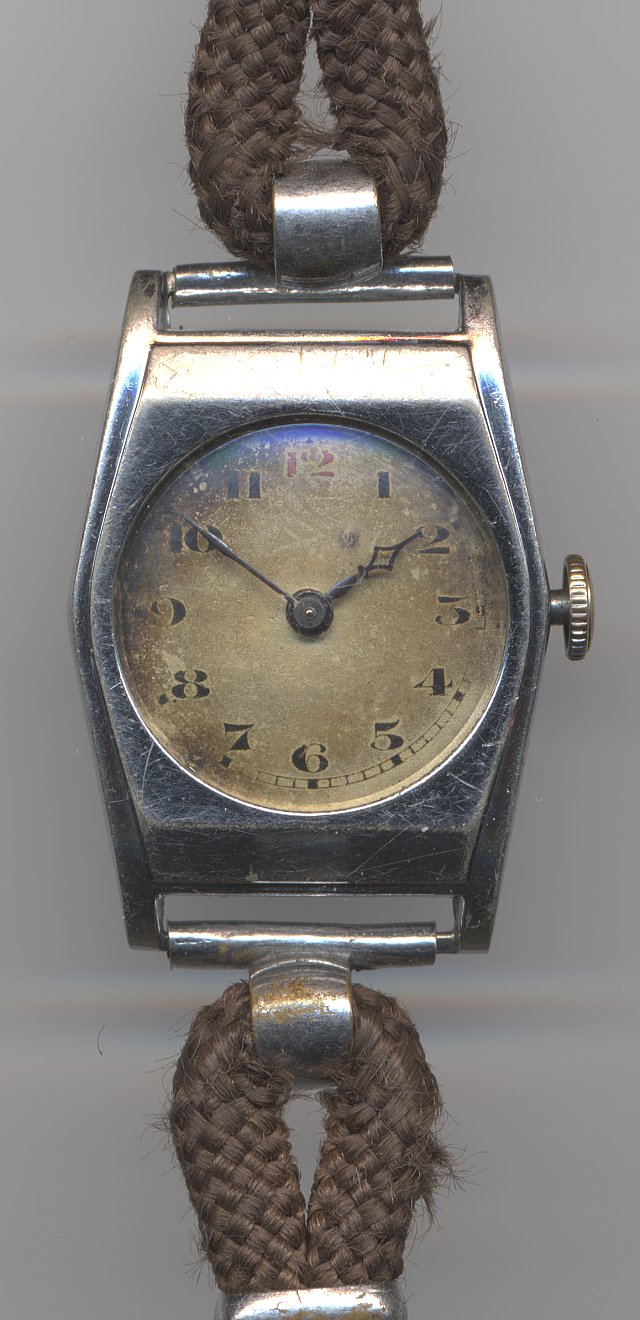

AS 175: anonymous wristwatch

anonymous wristwatch
