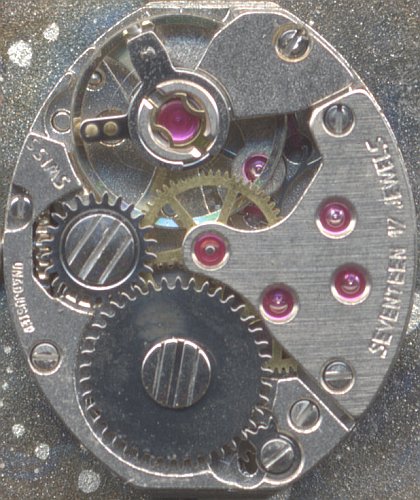

Description

This shaped movement was put into many ladies’ watches of the seventies. It appeared in different version on the market.

This movement only displays hour and minute. That’s a tribute to its small size.

This movement also carries the suffix “INT”, which stands for the combination of Durowe, SEFEA and Ebauches S.A..

The AS marking is pretty wrong here, since that movement differs a lot to the AS 1977.

Technical data

Manufacturer:AS
Caliber:1977-2 INT
Size:5 1/2 x 6 3/4'''
A/h:21600
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
References: Flume: K3 77

Related Movements

Beat rate 18000 A/h, fixed hairspring stud
increased beat rate to 21600 A/h, moveable hairspring stud
changed setting lever screw
Durowe version
fixed hairspring stud
moveable hairspring stud
increased beat rate to 21600 A/h
Durowe version
Durowe version
