AS 1977-2 INT


AS 1977-2 INT

AS 1977-2 INT

Description

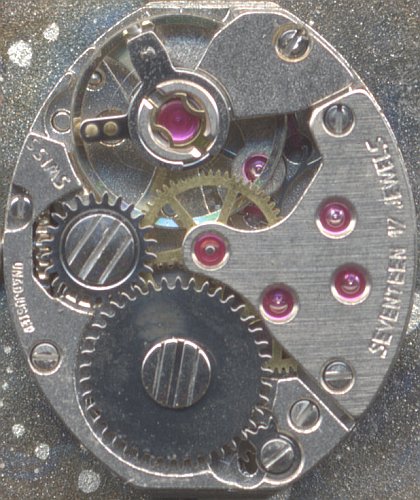

This shaped movement was put into many ladies’ watches of the seventies. It appeared in different version on the market.

This movement only displays hour and minute. That’s a tribute to its small size.

This movement also carries the suffix “INT”, which stands for the combination of Durowe, SEFEA and Ebauches S.A..

The AS marking is pretty wrong here, since that movement differs a lot to the AS 1977.

Technical data

Manufacturer:AS
Caliber:1977-2 INT
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Functions:hour, minute
A/h:21600
Size:5 1/2 x 6 3/4'''
Literature: Flume: K3 77
