AS 2063 | 17jewels.info - The Movement Archive

Description

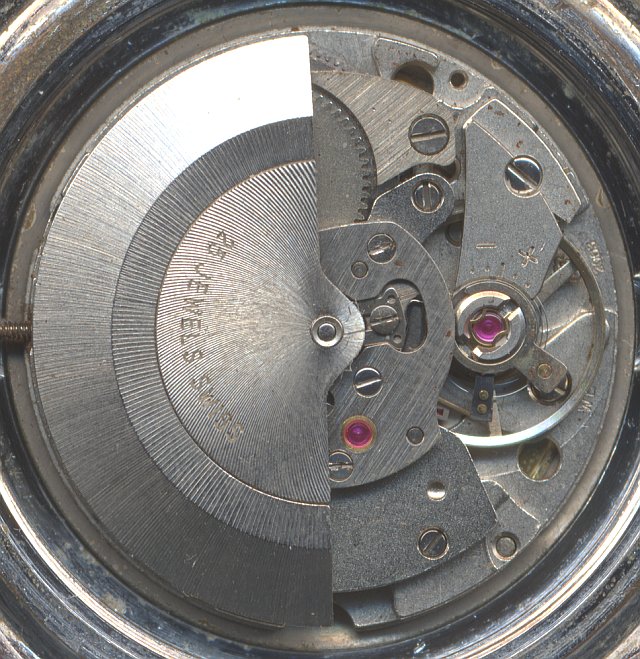

The AS 2063 is one of the late AS selfwinding mens' movements. It uses the knowledge of fourty years development and research of selfwinding movements and thus offeres many useful features, such as a single-direction (counterclockwise) winding mechanism, an Incabloc shock protection, a date quickset mechanism (middle position of the stem) and chatons for the selfwinding mechanism. AS surely developed this movement with longevity and not beauty in mind.

Technical data

Manufacturer:	AS
Caliber:	2063
Size:	11 1/2'''
A/h:	21600
lift angle:	52°
Number of jewels:	25
Escapement:	Pallet lever
Balance types:	Nickel anular balance
Shock protection(s):	Incabloc
Balance bearing / direction hairspring:	Clockwise
Moveable stud:	yes
Adjust mechanism:	Hairspring key
Features:	SCD (direct center seconds) QG (date indication (aperture)) RDR (date corrector) AUT (selfwinding)
Production period:	1969-1978

Usage gallery

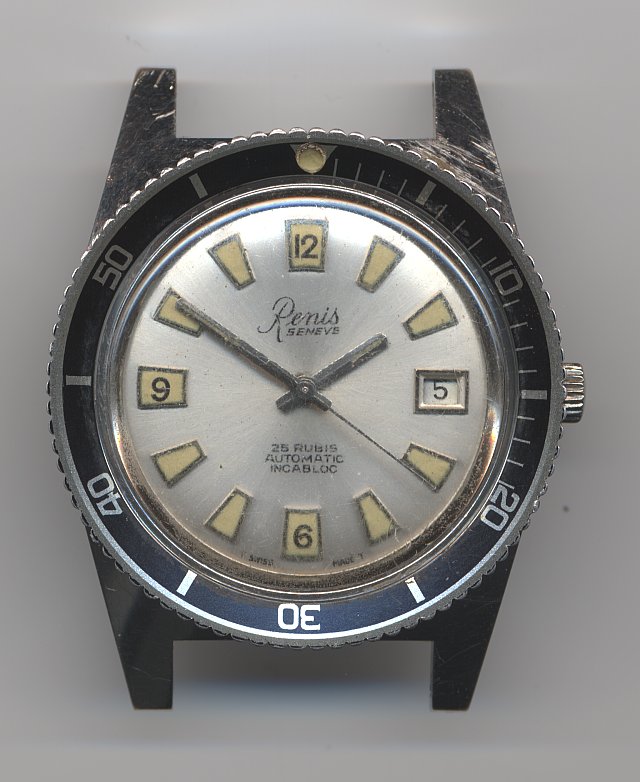

AS 2063: Renis divers' watch — Renis divers' watch
