AS 530.622 | 17jewels.info - The Movement Archive

Description

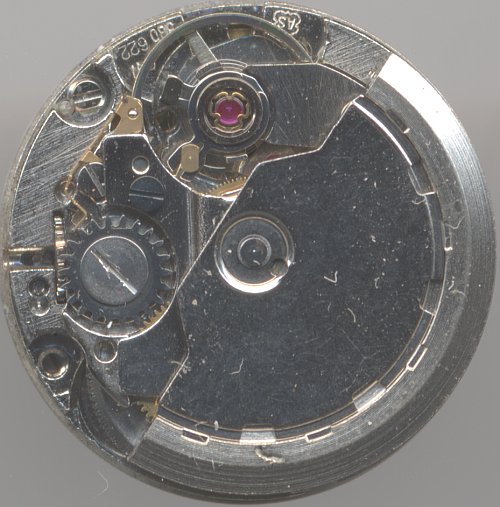

This movement seems to be one of the very last native AS movements before AS was integrated in to ETA. Its very unusal (for AS) naming scheme already reminds to that of ETA quartz movements, and the hairspring stud and simple regulating mechanism is exactly the same as of modern ETA movements.

This movement lacks any decoration and looks pretty cheap produced, but at least, the day and date can be corrected fast in the middle crown position.

Technical data

Manufacturer:	AS
Caliber:	530.622
Size:	8 3/4'''
A/h:	21600
Number of jewels:	17
Escapement:	Pallet lever
Balance types:	Nickel anular balance
Shock protection(s):	KIF Trior
Balance bearing / direction hairspring:	Counterclockwise
Moveable stud:	yes
Adjust mechanism:	Hairspring key
Features:	SCD (direct center seconds) AUT (selfwinding) JG (weekday indication (aperture)) QG (date indication (aperture)) RDR (date corrector)

Usage gallery

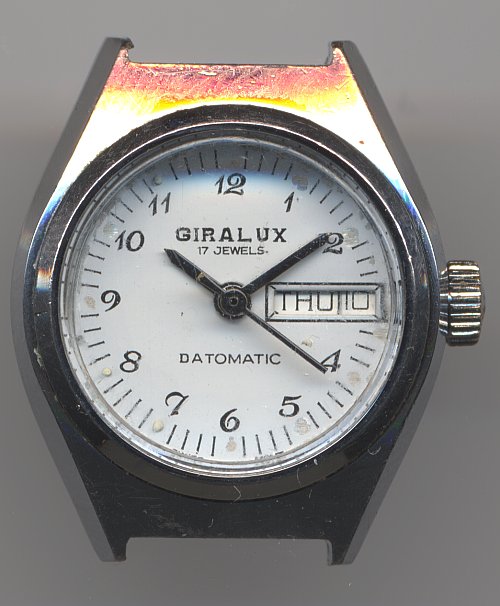

AS 530.622: Giralux Datomatic ladies' watch — Giralux Datomatic ladies' watch
