AS 676

Description

This is an early AS (Adolph Schild) movement, which was already equipped with an anchor escapement, while the bridges and dial screws still remind of an cylinder movement.

On the dial side, there are still the old AS- and the Ebauches Trust marks. Probably this movement was released under the Ebauches Trust roof.

The movement didn’t use a shock protection, but has got a long regulator arm, which ends on a very detailed scale. The bearing jewels are located in chatons, on the visible side, and the anchor wheel bridge is very helpful for service works.

Altogether, this is a very pleasing movement, technically as well as optically.

AS 676: dial side

dial side


Technical data

Manufacturer:AS
Caliber:676
Size:8 3/4'''
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
References: Flume: 1947 23

Usage gallery

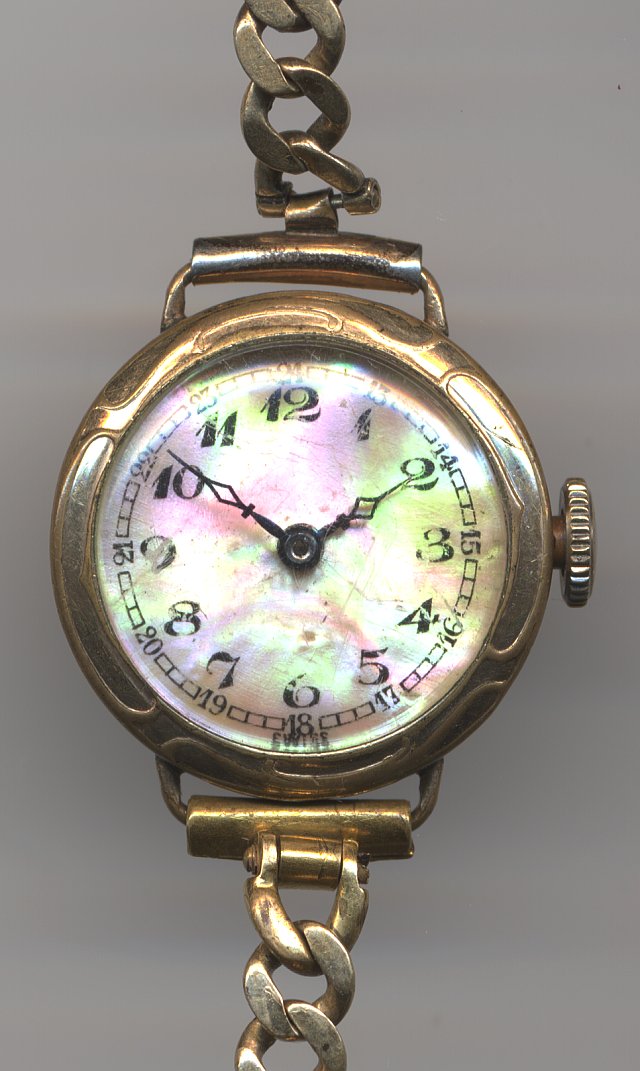

AS 676: unmarked ladies' watch with mother of pearls dial

unmarked ladies' watch with mother of pearls dial
