Baumgartner 582/31
Description
Die Baumgartner 582/31 is a rather late pin lever movement, probably dating from the mid-1970ies. It beats semi-fast with 21600 A/h, has got a KIF-Trior secured nickel balance and contains only two synthetic rubies, both for the balance wheel.
A different version only uses one jewel and a Novodiac shock protection.
The movement is not very service-friendly constructed: All four gears are below one large plate, and in case of service, all of them have to be put carefully into their position simultaneously. The advantage of this construction is, that you don’t have adjusting problems with differtly adjusted plates. All trains are in an optimal position.
As usual on Baumgartner movement, the minute hand is indirectly driven by the bottom plate of the mainspring. This means, that on correcting the time with the yoke lever winding mechanism, the bottom plate of the mainspring is turned.
The version with date indication (caliber 852/31) switches the date slowly forth and back. A fast correction is not possible.

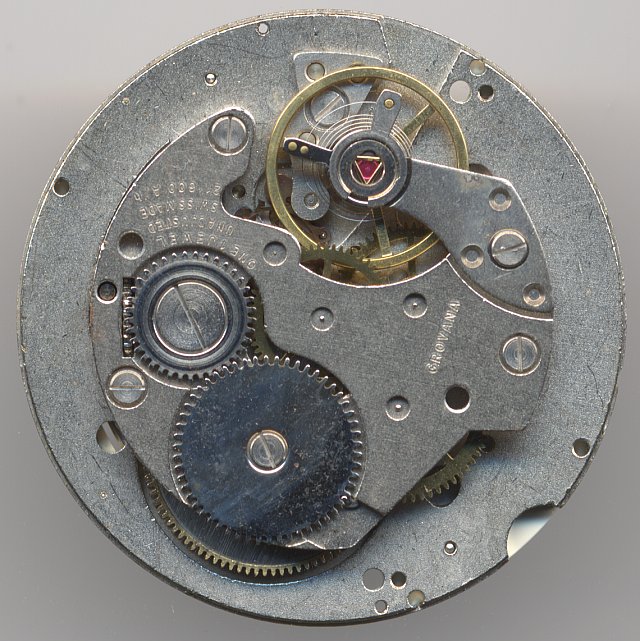

version with 1 jewel

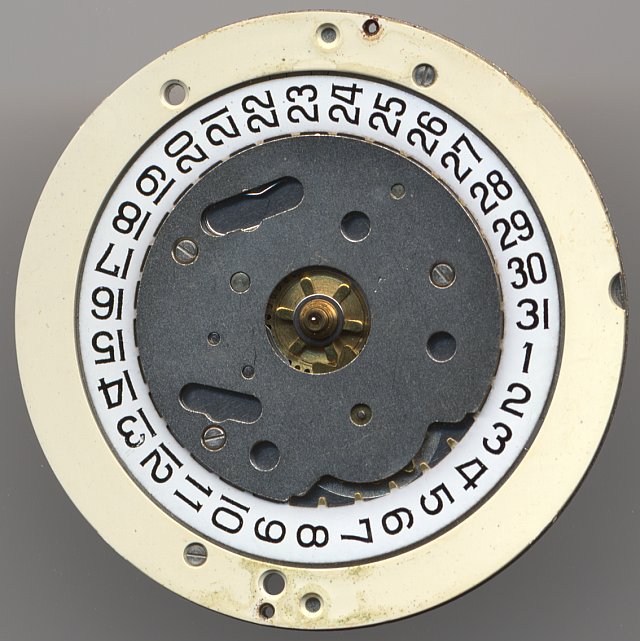

dial side view
Baumgartier 582/31: Dial side view
Usage gallery
Astromaster mens' watch

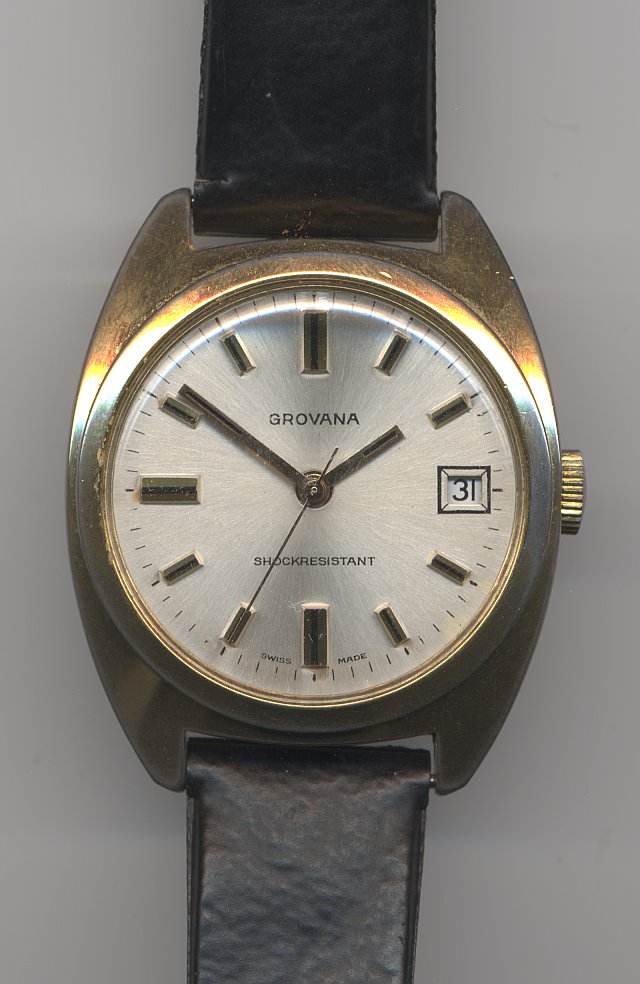

Grovana mens' watch
