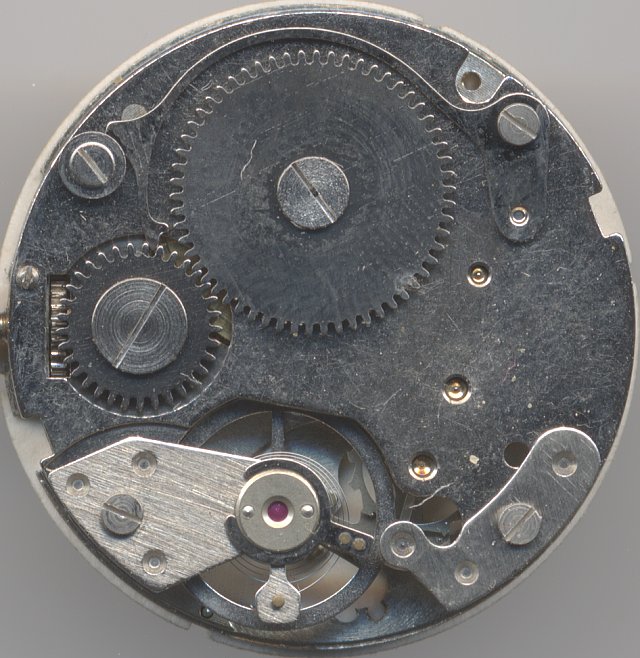

Baumgartner 866


Baumgartner 866

Baumgartner 866

Description

The BFG Caliber 866 is simple pin lever movement, which at least uses a pinion winding system. It has got no shock protection.

The movement described here is partially skeletonized and you can see the (missing) indirect driven minute hand.

This movement is also available with date indication, using the same caliber number.

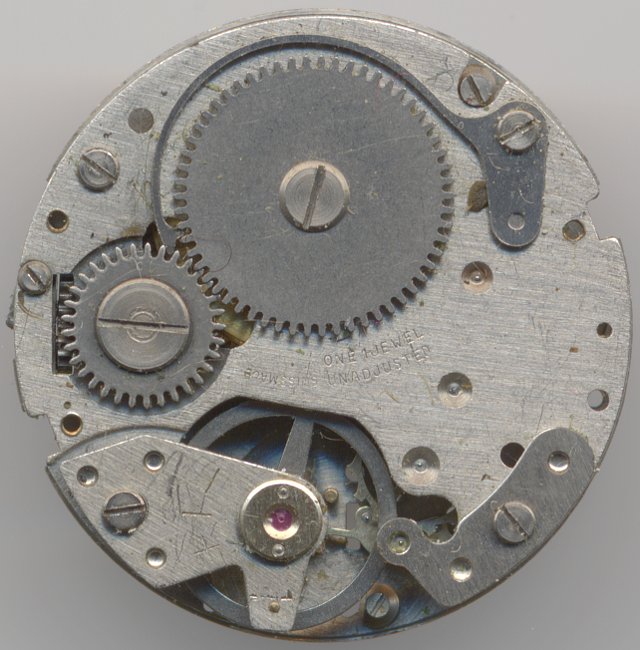

alternative version with different click spring and balance cock

alternative version with different click spring and balance cock

Baumgartner 866 dial side

Baumgartner 866 dial side

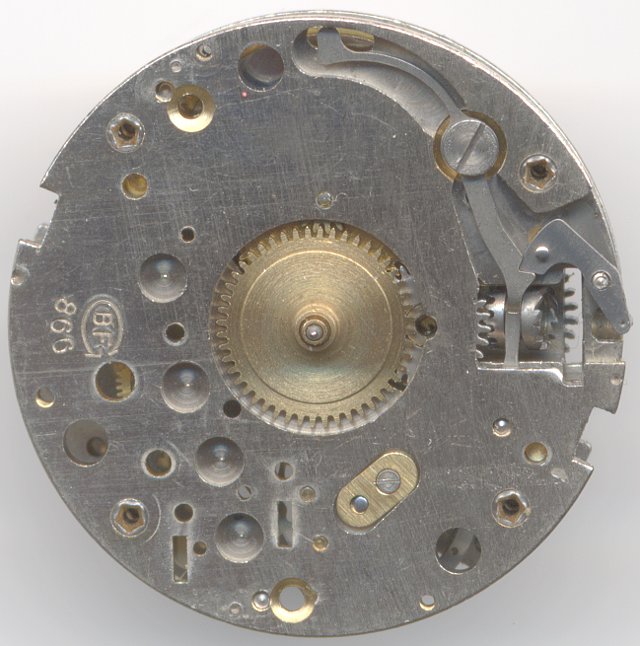

dial view of the different version

dial view of the different version

Technical data

Manufacturer:Baumgartner
Caliber:866
Number of jewels:1
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
  • center second pinion
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:SCI
Functions:hour, minute, second
A/h:18000
Size:12'''
Literature: Flume: 1962 23

Usage gallery

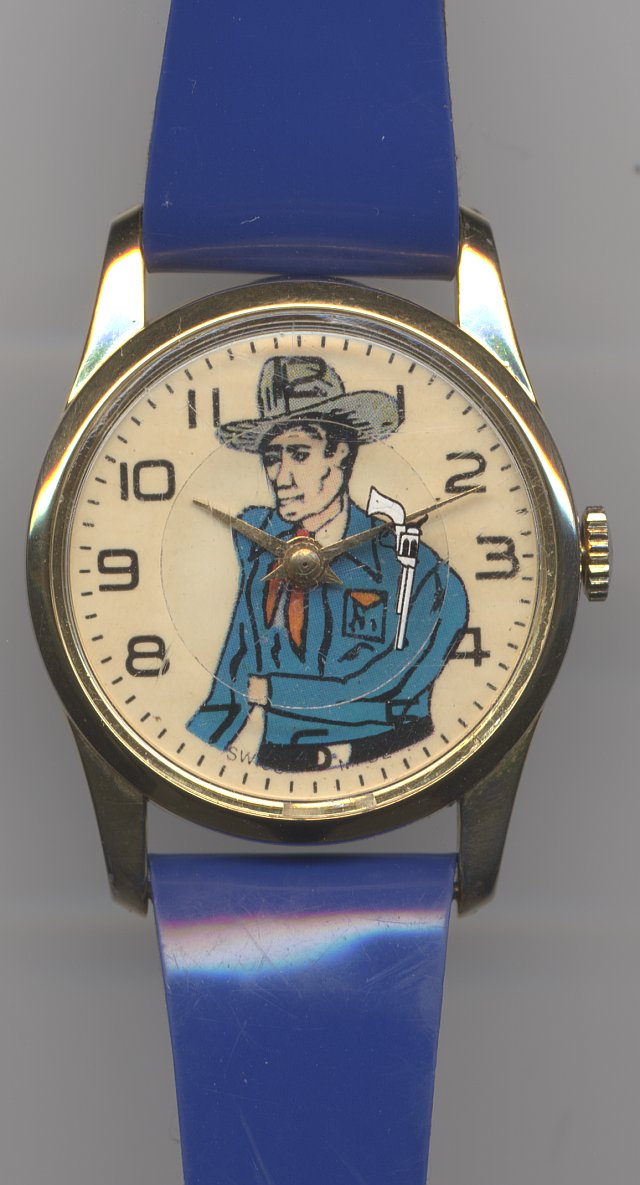

anonyme kids watch with Cowboy motive

anonyme kids watch with Cowboy motive

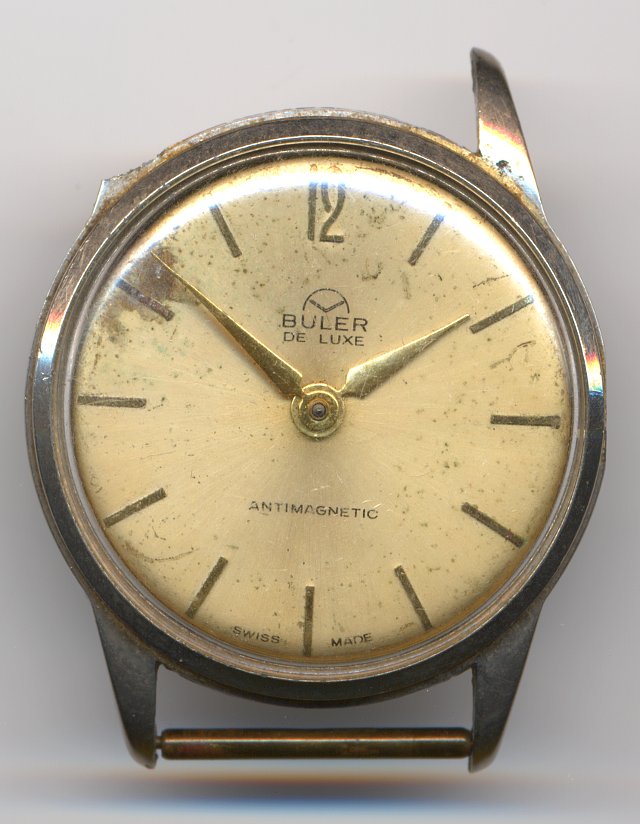

Buler de Luxe mens' watch

Buler de Luxe mens' watch
