Description

This simple swiss made movement was produced in different versions. Other than the here displayed version with only one jewel, there exists at least one more version with two jewels:

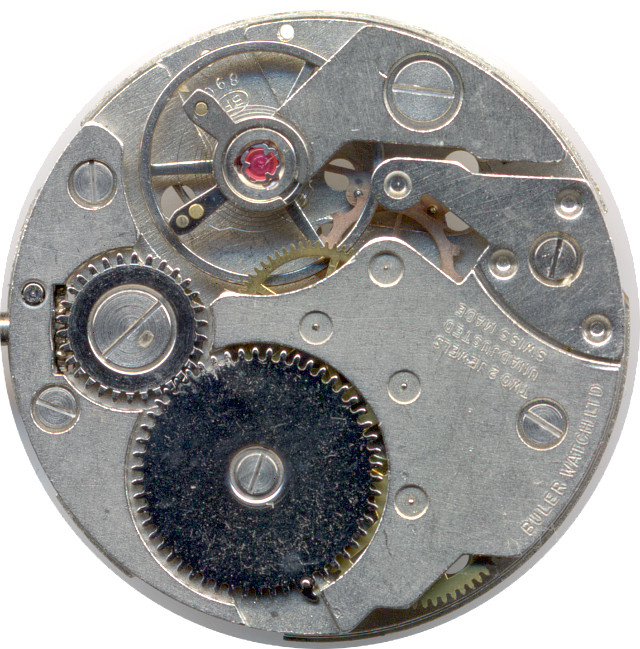

Baumgartner 896 version with two jewels and KIF Trior shock protection

Baumgartner 896 version with two jewels and KIF Trior shock protection

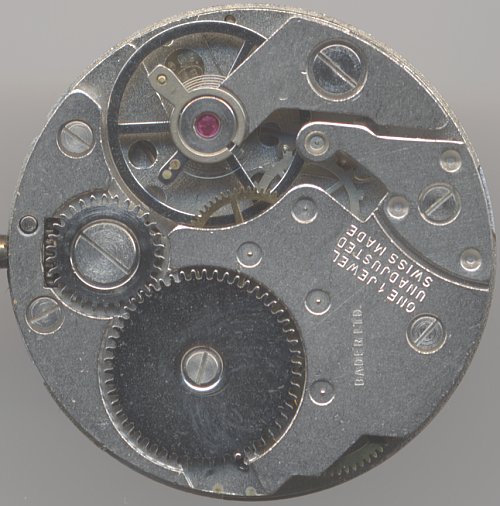

On the movement displayed here, the anchor axle goes through the dial and moves the head of Minnie Mouse.

The dial side of the regular version looks the following way:

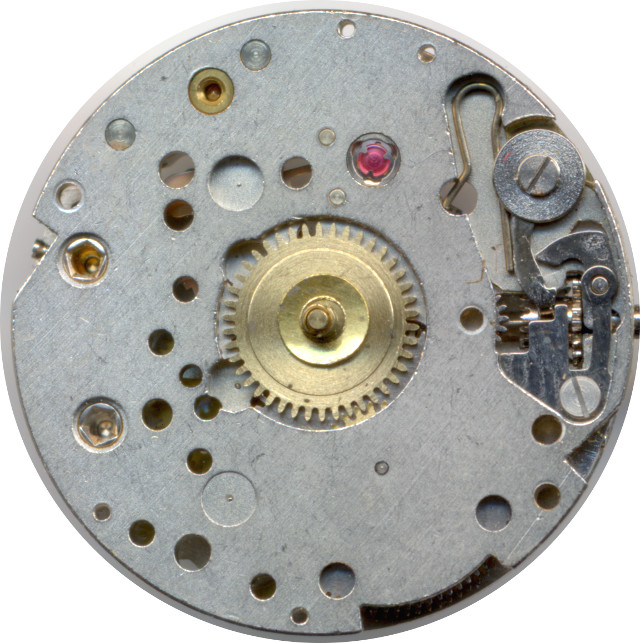

Baumgartner 896 dial side, version with 2 jewels

Baumgartner 896 dial side, version with 2 jewels

Technical data

Manufacturer:Baumgartner
Caliber:896
Number of jewels:1/ 2
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Functions:hour, minute
A/h:18000
Size:10 1/2'''

Usage gallery

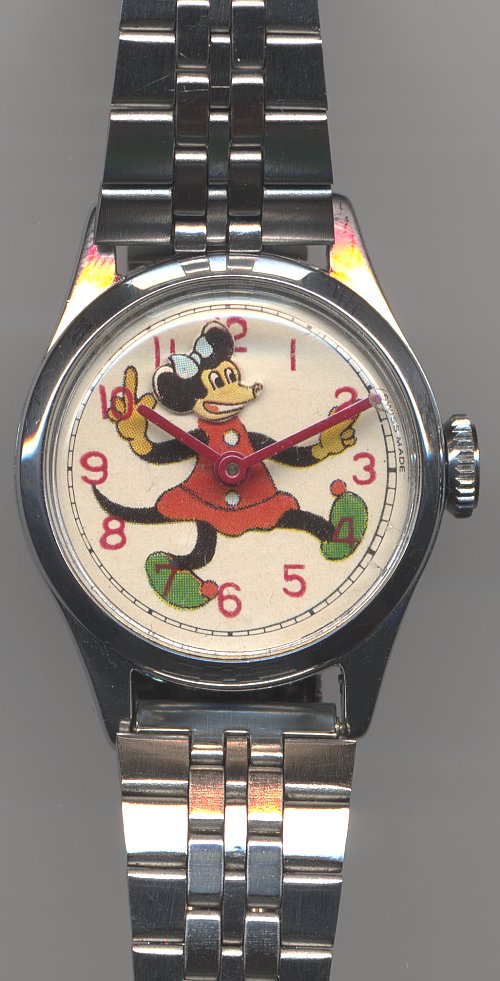

anonymous ladies' watch with Minnie Mouse motive

anonymous ladies' watch with Minnie Mouse motive

Dorothee ladies' watch

Dorothee ladies' watch
