Baumgartner 930

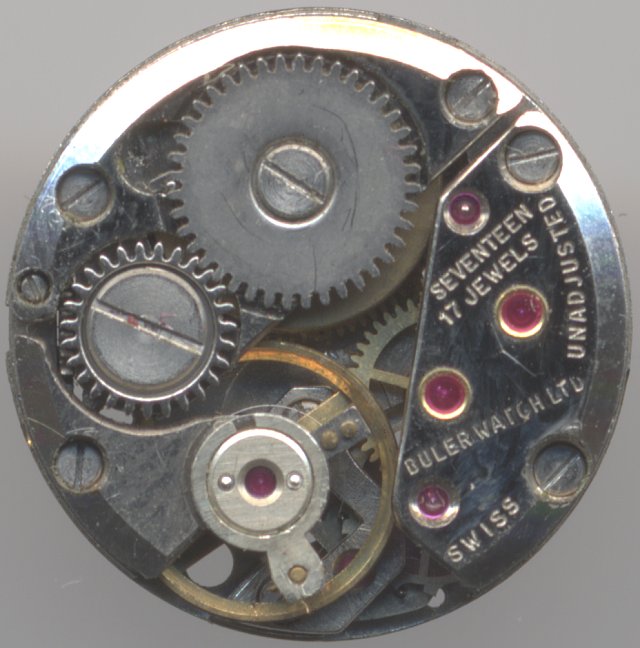

One of the ever made smallest pin lever movements is the Baumgartner caliber 930. According to Flume, it has got a diameter of only 6 3/4 lignes; if you measure it, it’s exactly 7 lignes. With its construction, it very much reminds of small anchor lever movements, such as the ETA 2412.

With seventeen jewels, among them a number of deck jewels, which are fixed in kind of chatons, with a coupling winding mechanism and partially polished plates, it is certainly among the best Baumgartner pin lever movements.

As usual on Baumgartner, this movement does not have a minute wheel, but the minute- and hour hands are indirect driven by the mainspring barrel.

Baumgartner 930: Baumgartner 930 dial side

Baumgartner 930 dial side

Technical data

Size:6 3/4'''
lift angle:45°
Number of jewels:17
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
References: Flume: K3 60
Mentioning in literature (years): 1969 - 1970

Usage gallery

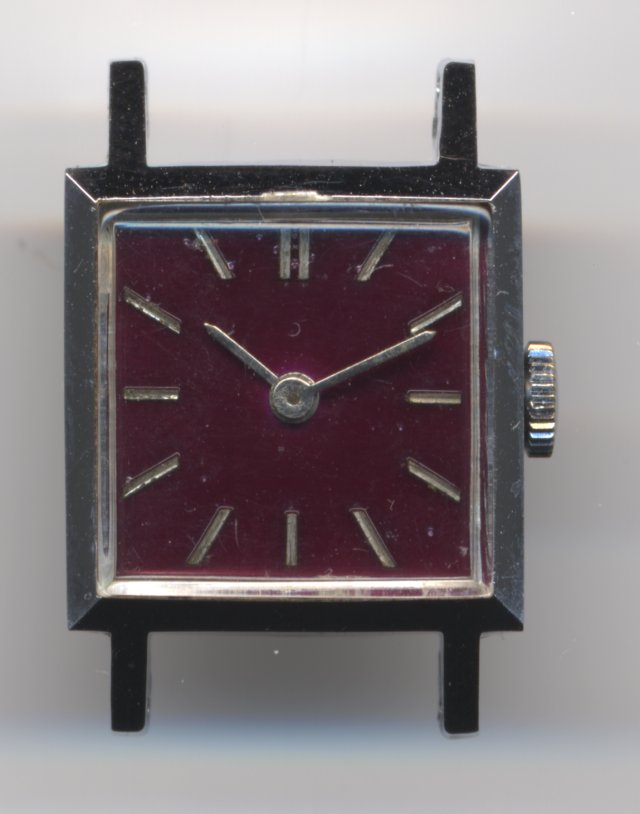

Baumgartner 930: Buler ladies' watch

Buler ladies' watch
