Brac 190

Description

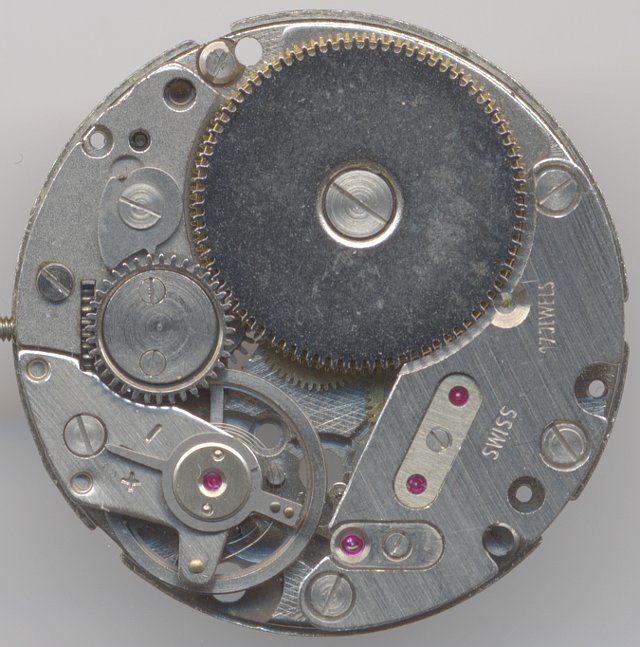

The large Brac 190 is a remarkable pin lever movement, which offers many surprises.

At first glance, you will notice the extra large mainspring barrel, which is even constructed in an overhung position. This will guarantee a good torsional movement and also a flat size. Another reason for its size is, that there’s no second wheel on this movement. To compensate this missing reduction, the mainspring needs to be longer.

The second highlight of this movement is the unusually constructed indirectly driven center second: It consists of a very flat gear, whose outer teeths are driven by the outher theets of the fourth wheel.

Furthermore, the Brac 190 wastefully deals with bearing and cap jewels - no wonder, since it was neccessiary to achive the advertising-prone number of 17 jewels.

Last but not least, there’s a simple but effectfully constructed yoke winding system on the dial side. Normally, this is a sign of better and more expensive movements.

To sum it up, the Brac 190 is a really interesting pin lever movement, which is far above the rest of standard pin lever movements.

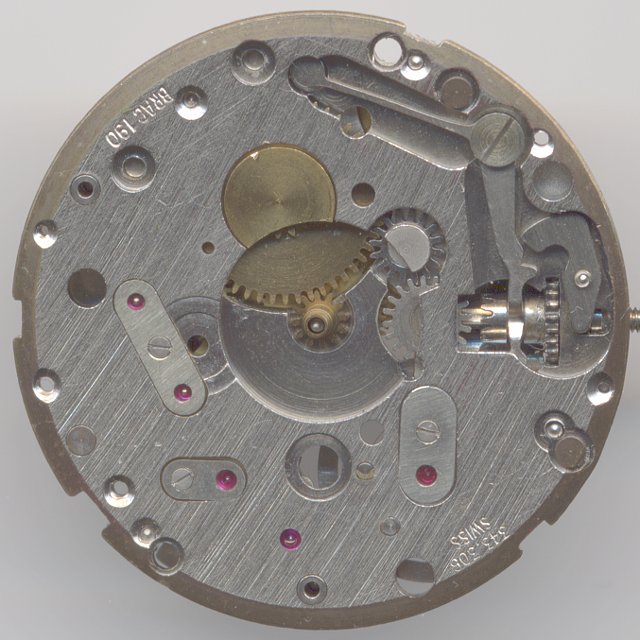

Brac 190 dial side

Brac 190 dial side

Technical data

Manufacturer:Brac
Caliber:190
Number of jewels:17
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever, escape wheel, seconds wheel, third wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:SCI
Functions:hour, minute, second
A/h:18000
Size:12 1/2'''
Literature: Flume: K2 -

Usage gallery

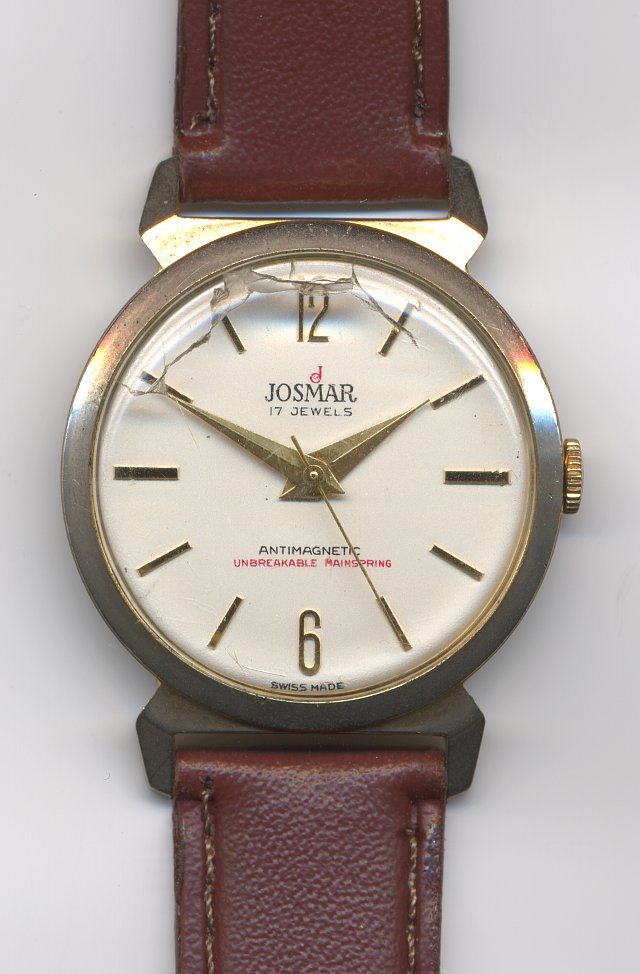

Josmar mens' watch

Josmar mens' watch
