Brac 512


sdfsdf

Brac 512

Description

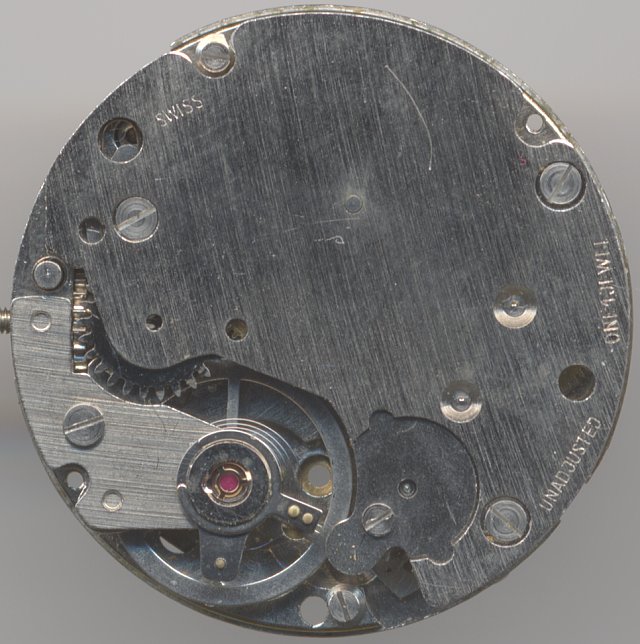

The Brac 512 is a rather modern constructed pin lever movement: It has got indirect driven hands (including the center second hand), a yoke winding mechanism, a large mainspring and on the dial side a date indication with semi-quickset mechanism.

This movement was available in different version, with one and seventeen jewels. A noteable fact of the 17j version is, that on the dial side, a KIF Trior shock protection was used, while the balance cock contained a three-leg shock protection.

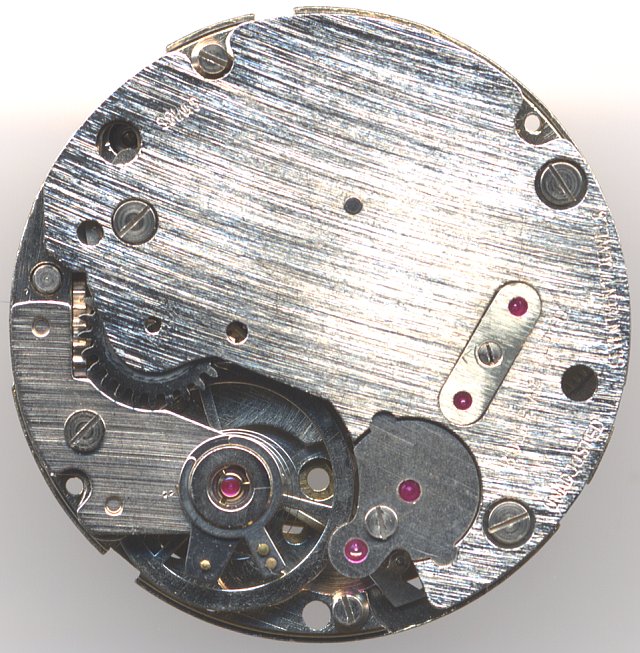

version with 17 jewels

version with 17 jewels

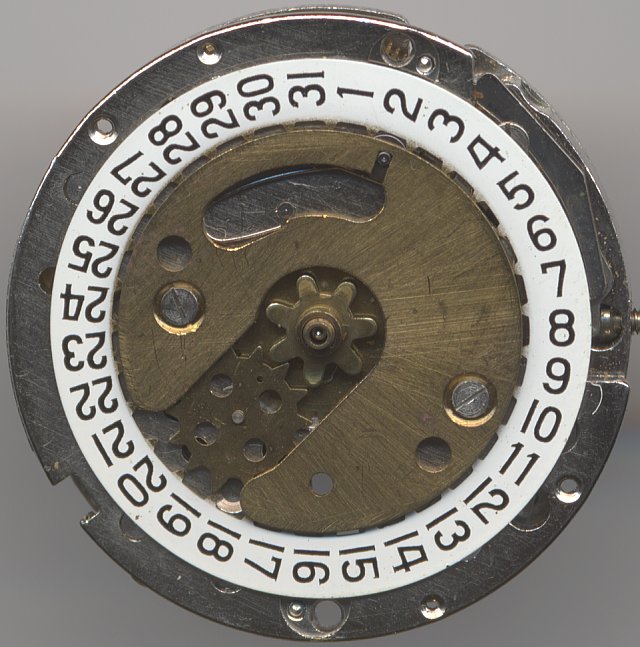

Brac 512 dial side

Brac 512 dial side

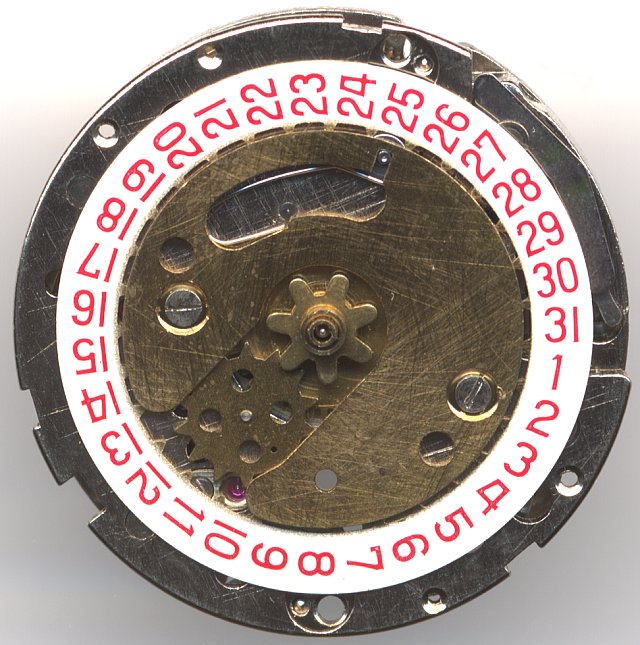

dial side of the 17j version

dial side of the 17j version

dial side without date indicator ring

dial side without date indicator ring

dial side without date indicator ring, version with 17 jewels

dial side without date indicator ring, version with 17 jewels

Technical data

Manufacturer:Brac
Caliber:512
Number of jewels:1/17
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): ?
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, mainspring barrel
  • center second pinion
Winding mechanism:yoke winding system
Setting lever spring:1 hole(s)
Features:SCI,QG
Functions:hour, minute, second, day
A/h:18000
Size:11 1/4'''
Literature: Flume: K3 -

Usage gallery

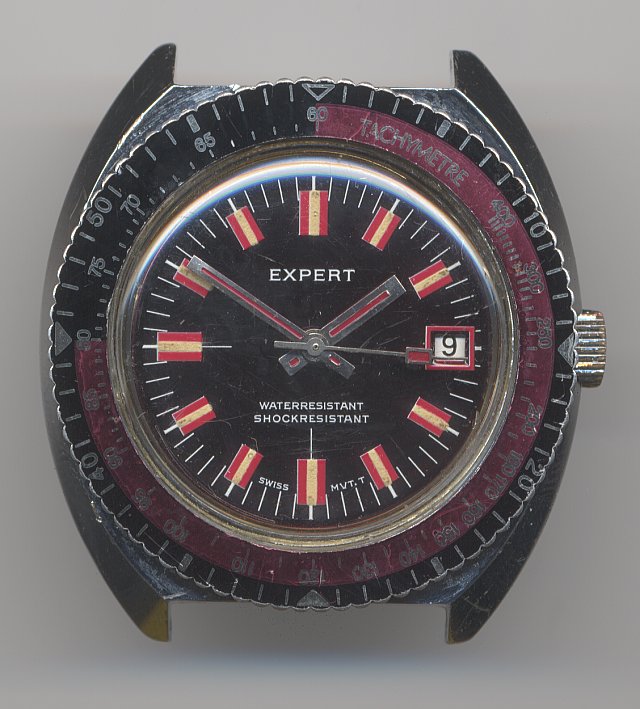

Expert mens' watch

Expert mens' watch

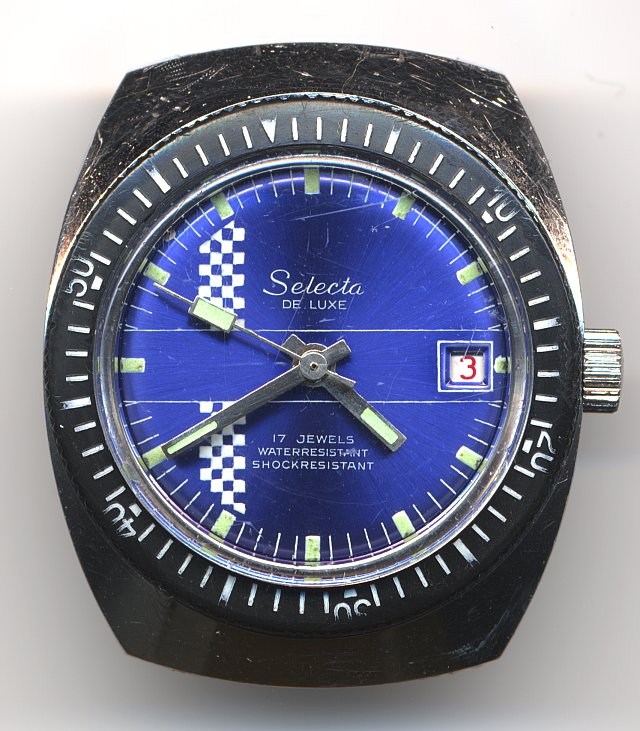

Selecta de Luxe divers' watch

Selecta de Luxe divers' watch
