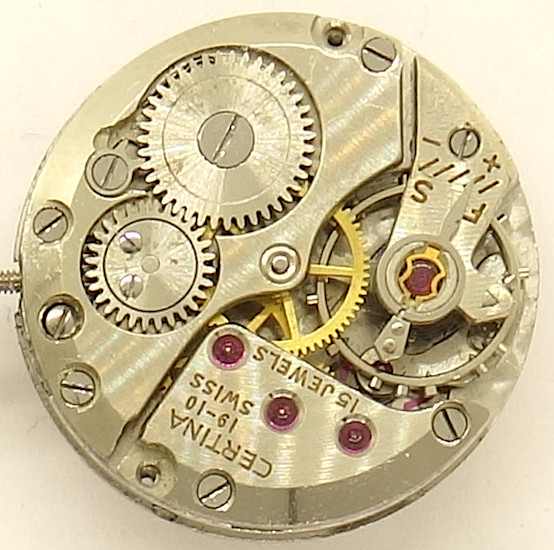

Certina 19-10


Certina 19-10

Certina 19-10

Description

In the early 1950s, Certina (Kurth Freres) brought that 15 jewel hand-wound movement Certina 19-10 on the market. With its 8 3/4 ligne (19.10mm) diameter, it was intended for ladies' watches.

The edge of the bridges are slightly bevelled, which ensured a minimal reduction of the necessary housing height. At that time particularly flat watches were in high demand.

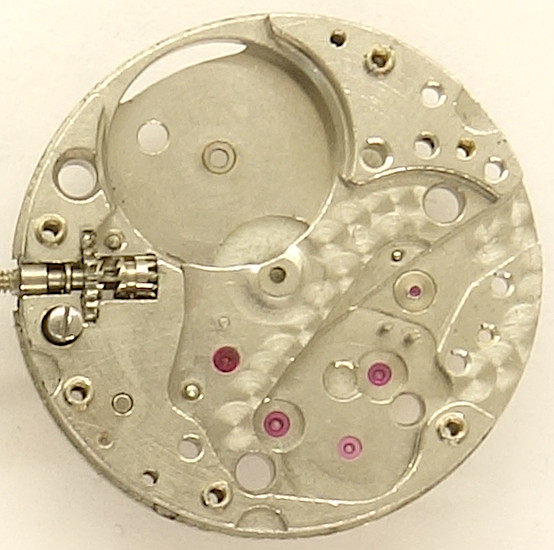

base plate

base plate

In this movement, not only were all the important bearings were equipped with rubies; it also offered a very nice looking perlage in the places you can see.

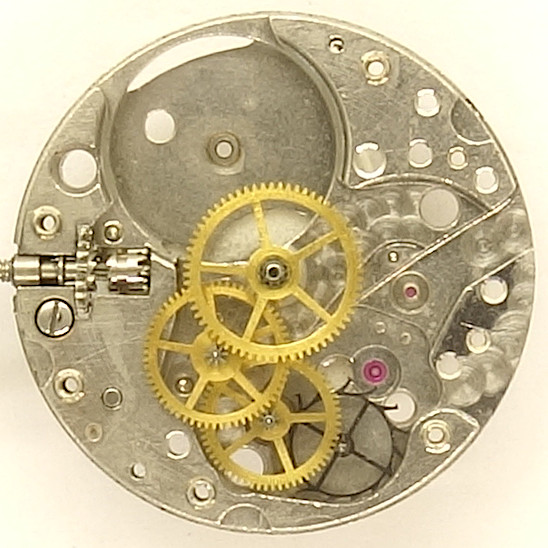

gear train

gear train

Very classic, and therefore typical of the 1950s is the gear train. The barrel drives the central minute wheel directly, followed by the third wheel, fourth wheel at 6 o’clock and the very filigree steel escape wheel.

The fourth wheel axle is prolonged on the dial side and carries the decentral seconds hand.

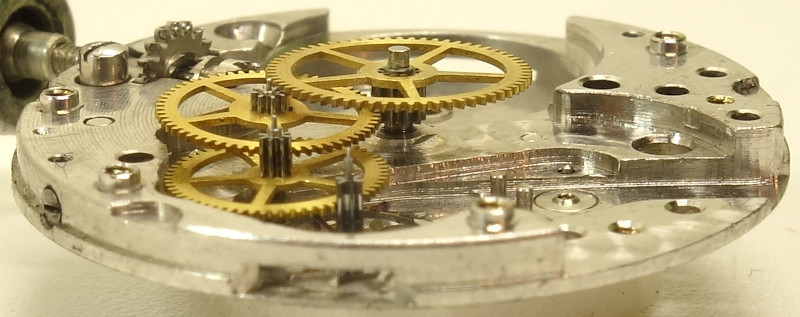

side view of the gear train

side view of the gear train

A swiss pallet anchor escapement is used as the escapement, which is regulated by a monometallic, two-leg screw balance.

The balance is already protected against shocks in two Incabloc bearings, and its exact frequency of 18000 alternations per hour be regulated via a long regulator hand.

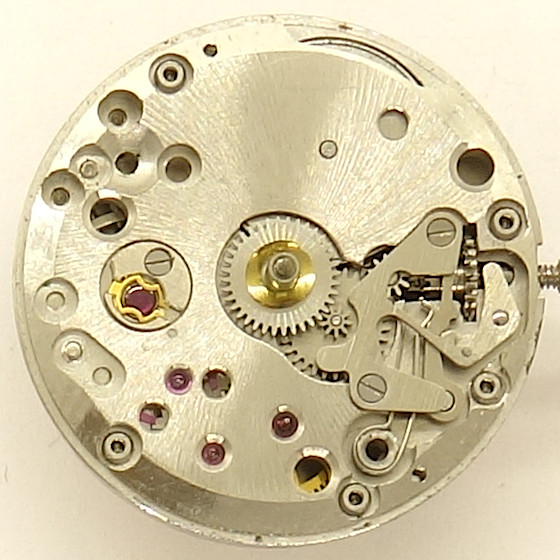

Certina 19-10: Dial side

Certina 19-10: Dial side

There is also a beautiful sunray finish on the dial side, a detail that is rarely seen on movements.

Of course, the Certina 19-10 uses a yoke winding system.

Technical data

Manufacturer:Certina
Caliber:19-10
Size:8 3/4''' (measured: 19,1mm)
Height:3,50mm
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types: monometallic screw balance (two legs)
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:
  • s (decentral seconds)
References: Ebauches: 1953 / 64/1
Feilner: 28 2230
Flume: K2 -
Inventory number:22004

Usage gallery

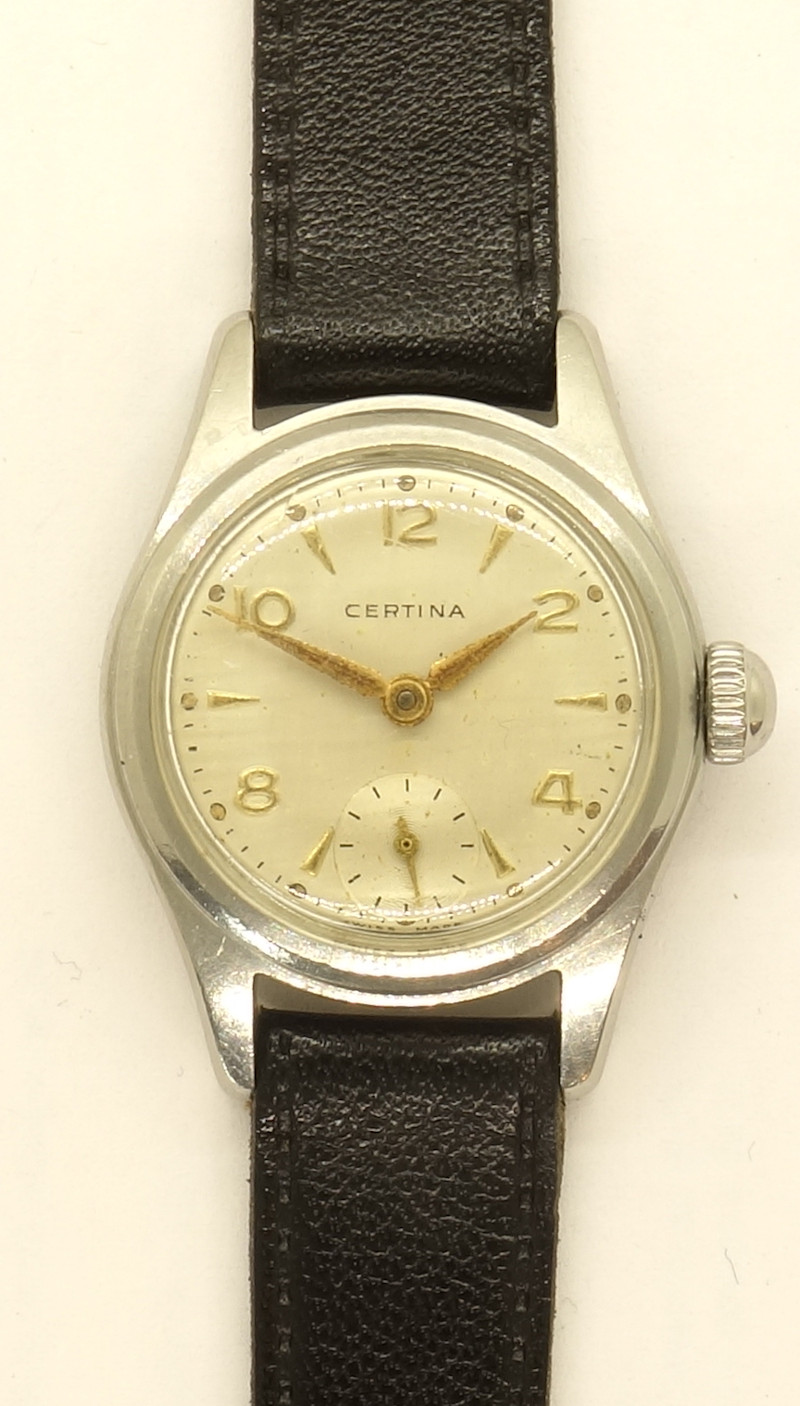

Certina ladies' watch

Certina ladies' watch
