Citizen 2340A

Description

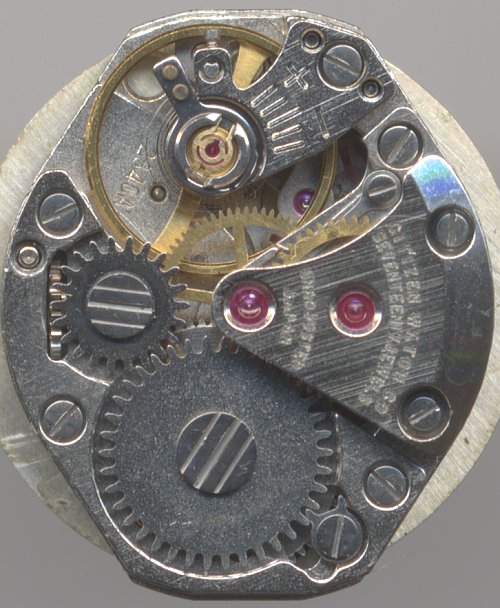

This is a tiny ladies' watch movement with indirect driven center second.

Movements of this shape with center second are pretty rare, since they require a complex construction with two plates because of the reduced size.

The filigrane Citizen Parashock 3 shock protection system can be seen here very well. Not many systems are that filigrane than this one.

Technical data

Manufacturer:Citizen
Caliber:2340A
Size:6 3/4 x 8'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Parashock 3 (Citizen)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • third wheel, center second pinion
  • mainspring barrel
Features:
  • SCI (indirect center seconds)

Usage gallery

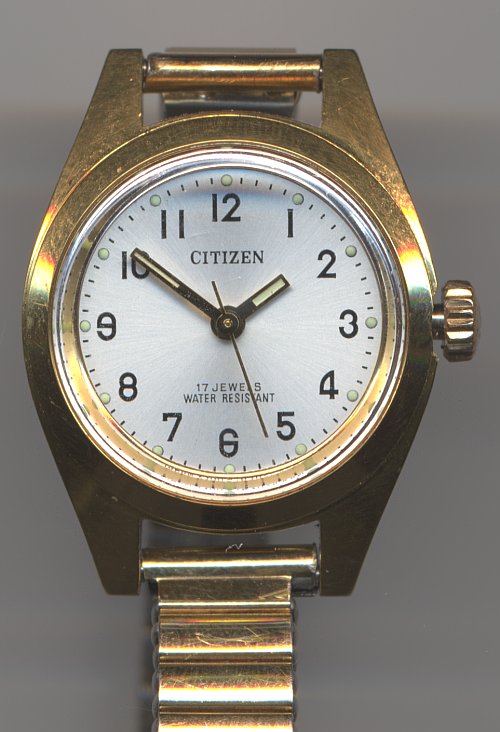

Citizen 2340A: Citizen ladies' watch

Citizen ladies' watch

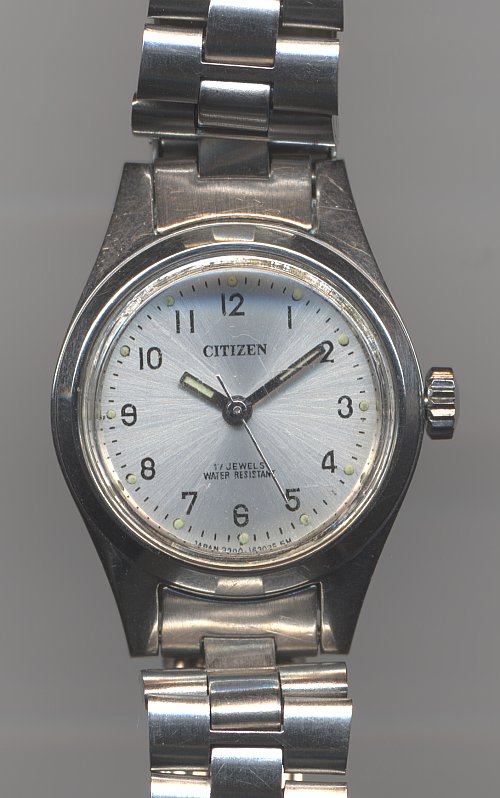

Citizen 2340A: Citizen ladies' watch

Citizen ladies' watch
