Citizen 6501
Description
In the mid sixties, Citizen launched the medium-sized selfwindig caliber series 65, which contained the movements 6000.

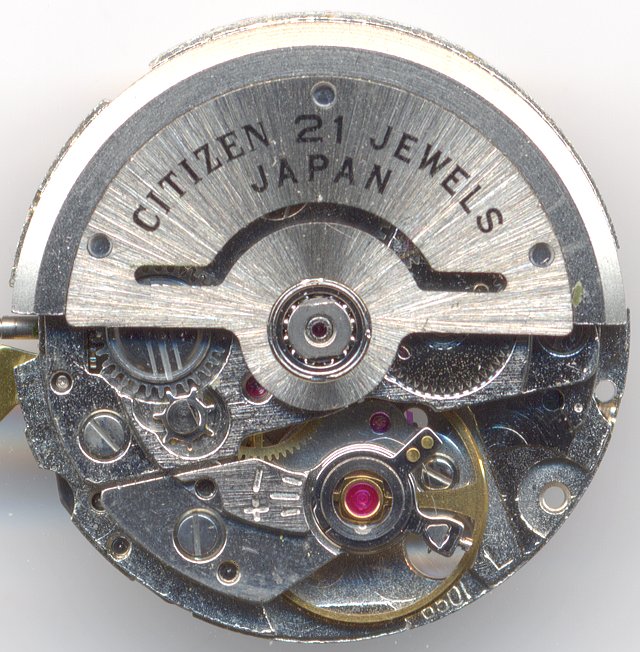

The caliber 6501 is shown here; it contains a ball-beared rotor, which winds in both direction and a spring-less ratched mechanism. The large Glucycur balance is pivoted in the inhouse Parachoc protection system.
All gears are located under one single plate, which makes servicing works a little difficult.
The date changes slow over almost two hours, but it can be quickset in the middle crown position.

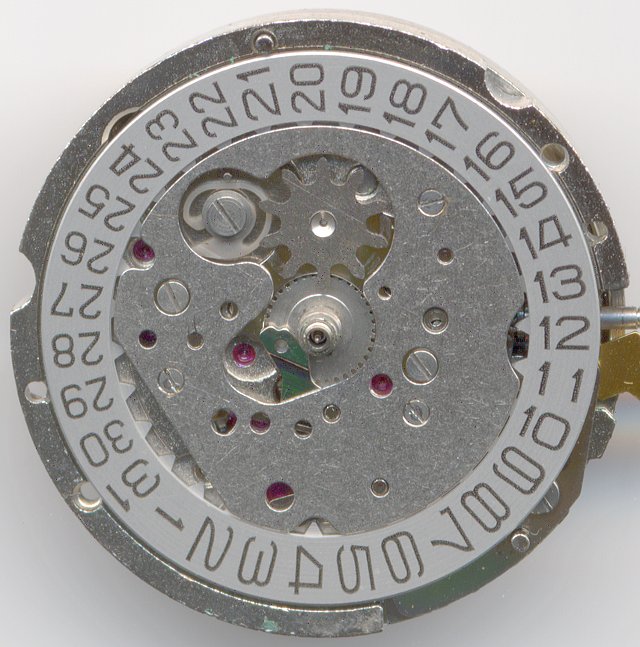

Citizen 6501 dial side without weekday disc
Technical data
| Manufacturer: | Citizen |
| Caliber: | 6501 |
| Size: | 10''' |
| A/h: | 26100 |
| Number of jewels: | 21 |
| Escapement: | Pallet lever |
| Balance types: |
Glucydur anular balance |
| Shock protection(s): |
Parashock 1 (Citizen) |
| Balance bearing / direction hairspring: | Counterclockwise |
| Moveable stud: | yes |
| Adjust mechanism: | Hairspring key |
| Features: |
|
| Production years: | 1971-???? |
Usage gallery

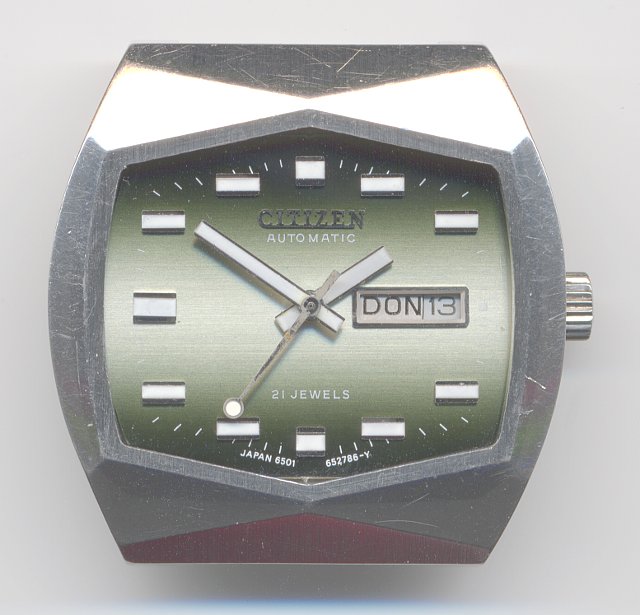

Citizen Automatic gents watch
