Citizen E101M
Description
An unusual quartz movement is the Citizen E101M, also known as “Eco-Drive”, which is solar-powered.

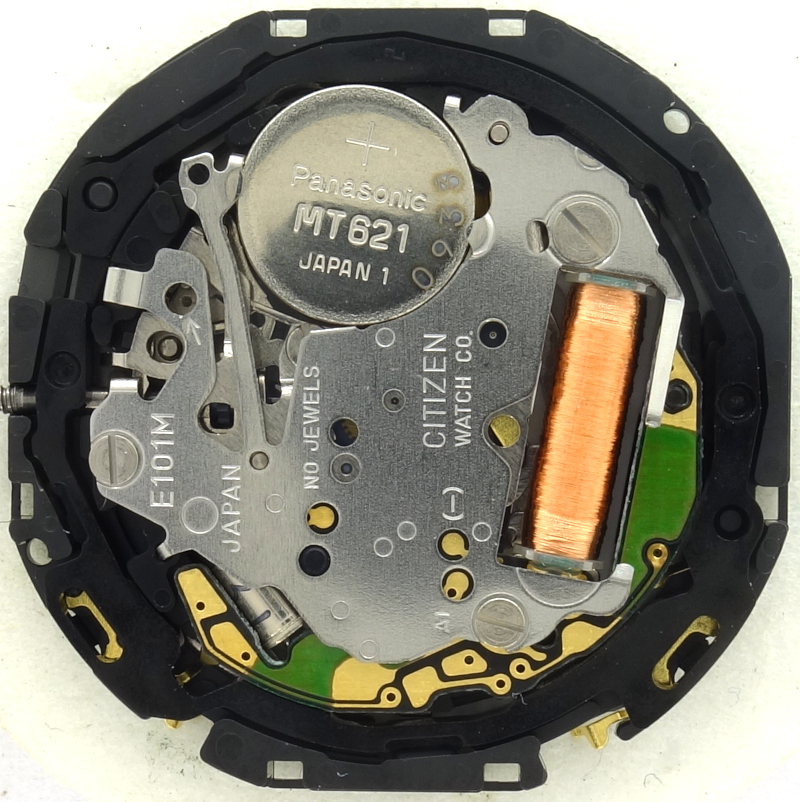

quartz movement w/o solar module
Without the solar module, it would be a quartz movement that’s neither particularly small nor very large, displaying hours, minutes, seconds, day, and day of the week.
Power and storage of the solar energy is provided by a Panasonic MT 621 lithium coin cell battery Panasonic MT 621, with a voltage of 1.5V and a capacity of 2.5 mAh.

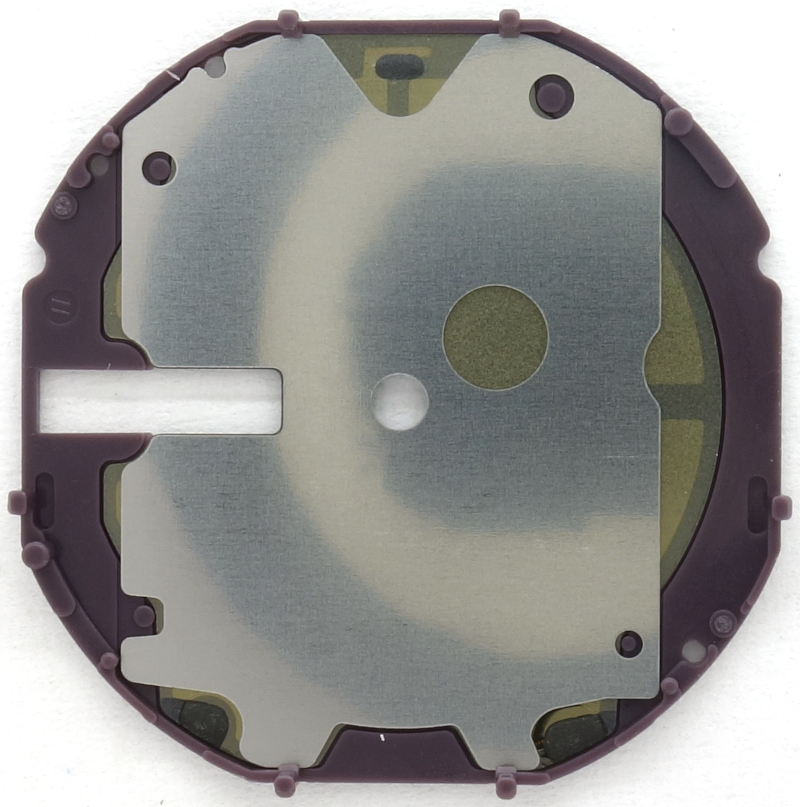

solar module, bottom view
A solar module with four cells is responsible for generating electricity.

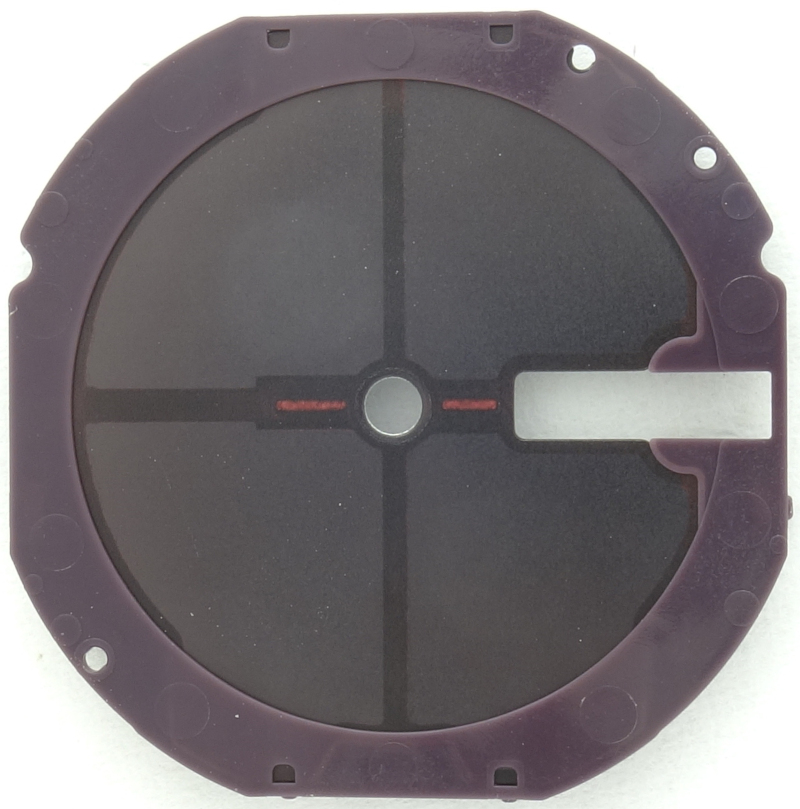

solar module, top view
This solar panel is attached to the dial side of the movement.

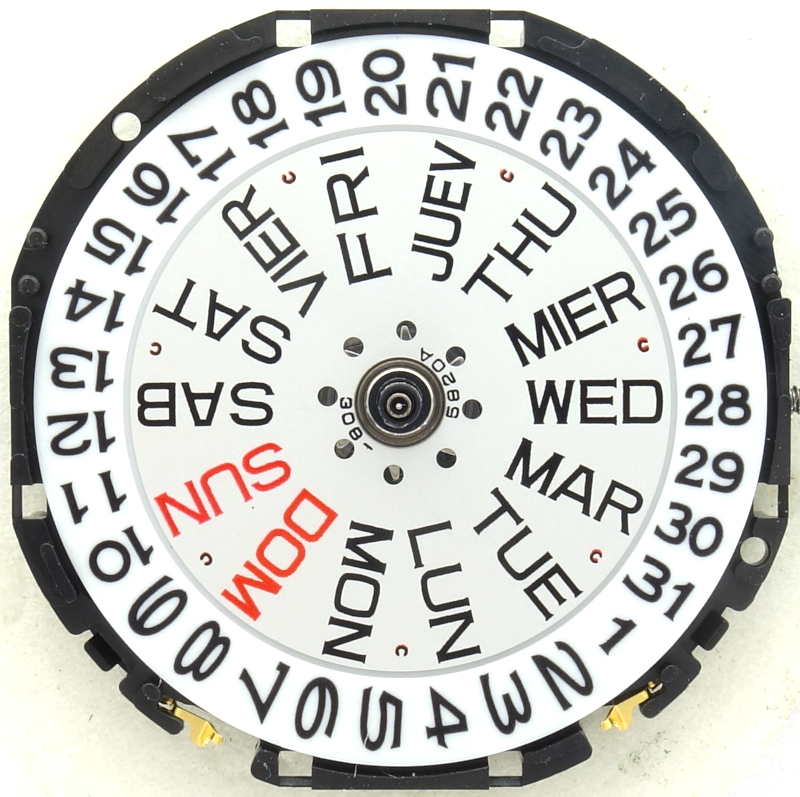

dial side w/o solar module
The Citizen E101M offers a bilingual day-of-the-week display, here in Spanish and English.

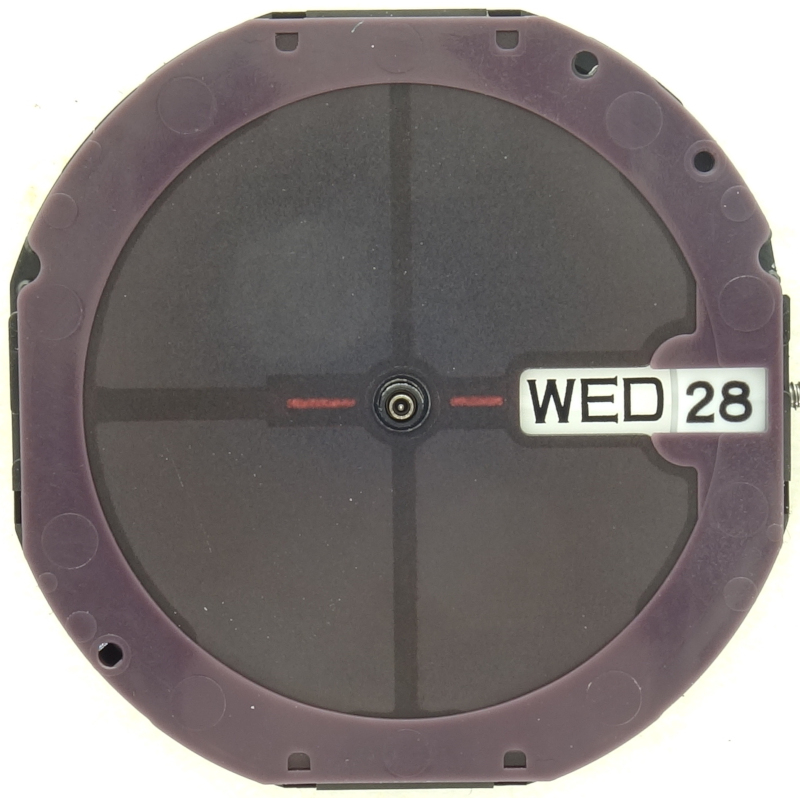

dial side with solar module
A blue, semi-transparent plastic dial is mounted onto the solar module, concealing the solar cells.

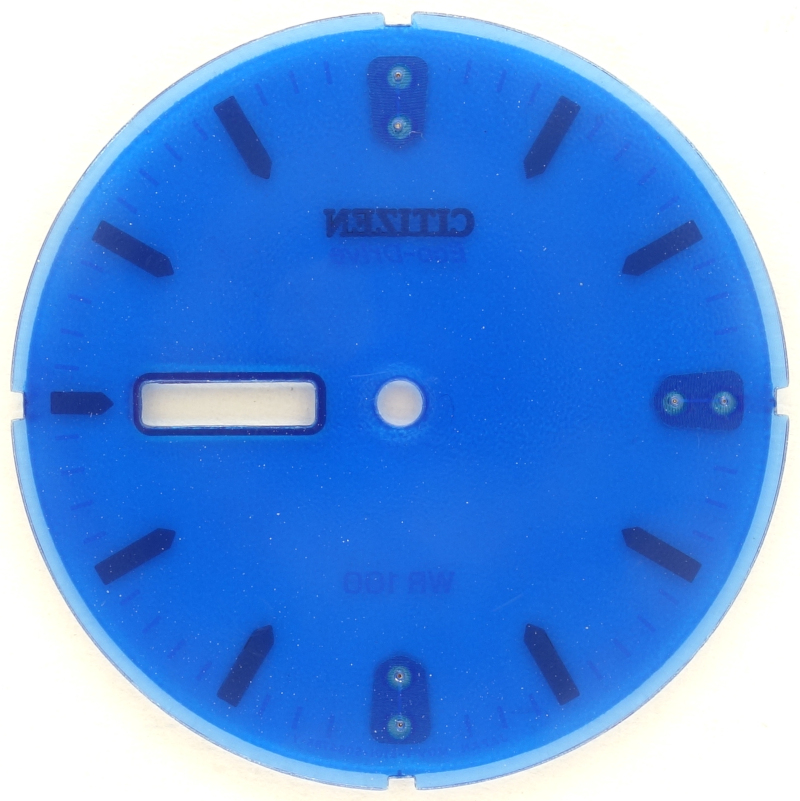

bottom of the semi-transparent dial
Here you can clearly see how translucent it is.

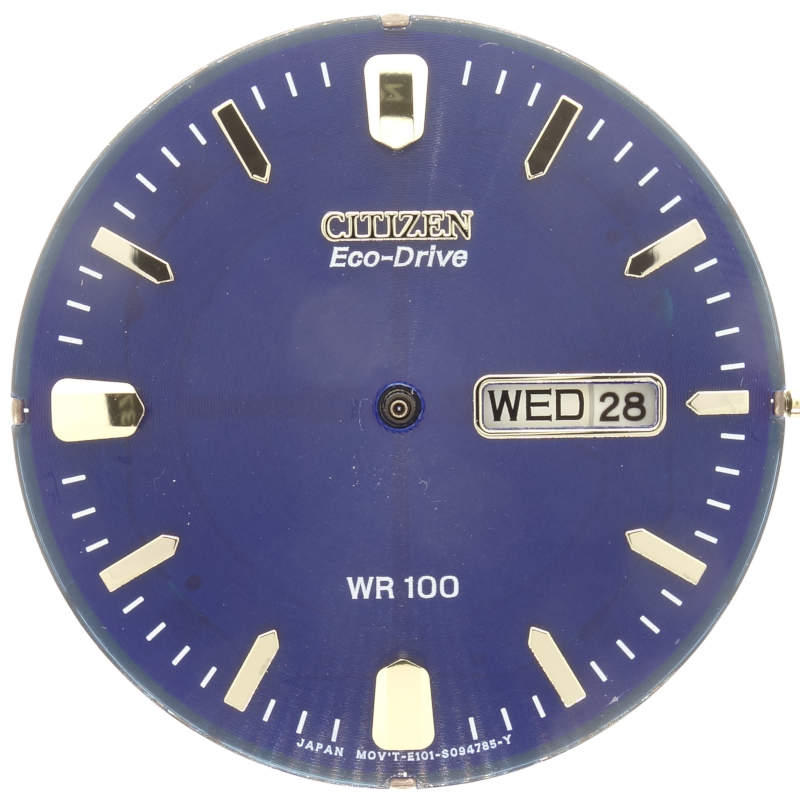

movement with dial
The dial has a significantly larger diameter than the movement + solar module.

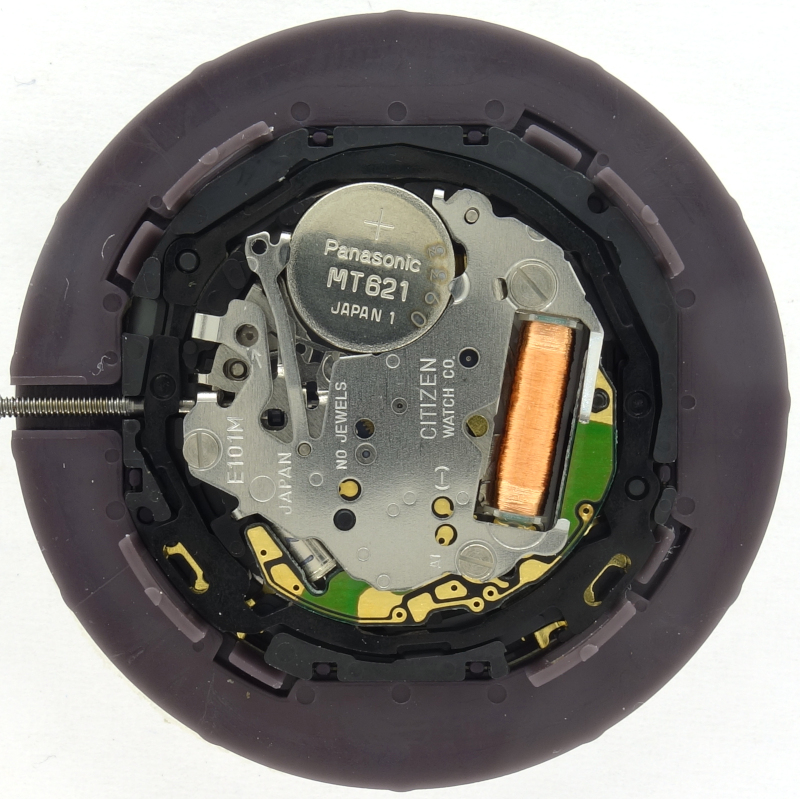

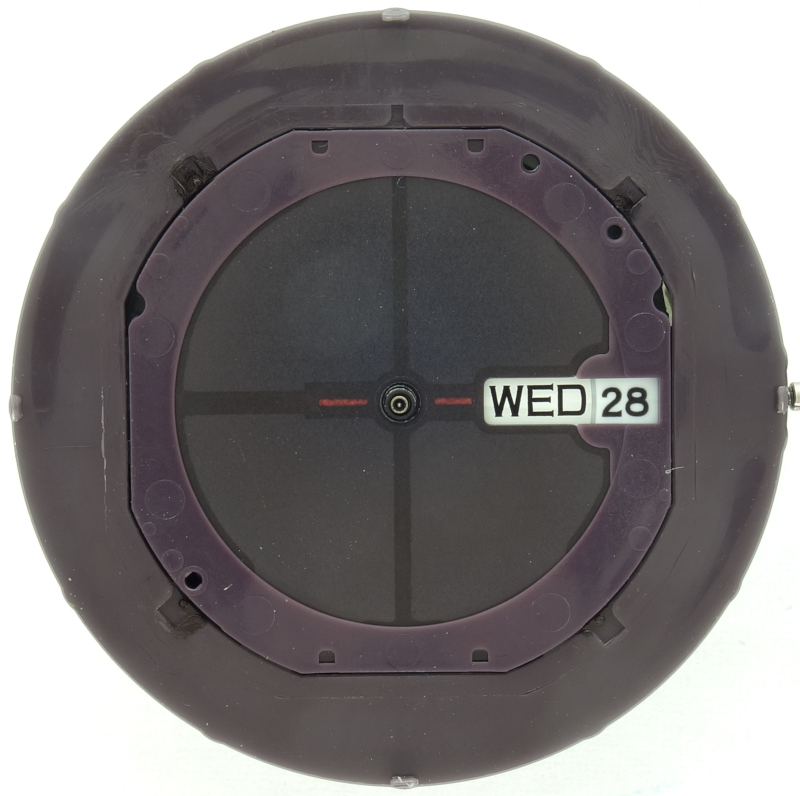

Citizen E101M: Dial side
Technical data
| Manufacturer: | Citizen |
| Caliber: | E101M |
| Size: | 9 3/4''' (measured: 22,0mm) |
| Frequency: | 32768 Hz |
| Escapement: | Quartz |
| Features: |
|
| Inventory number: | 24038 |
Usage gallery

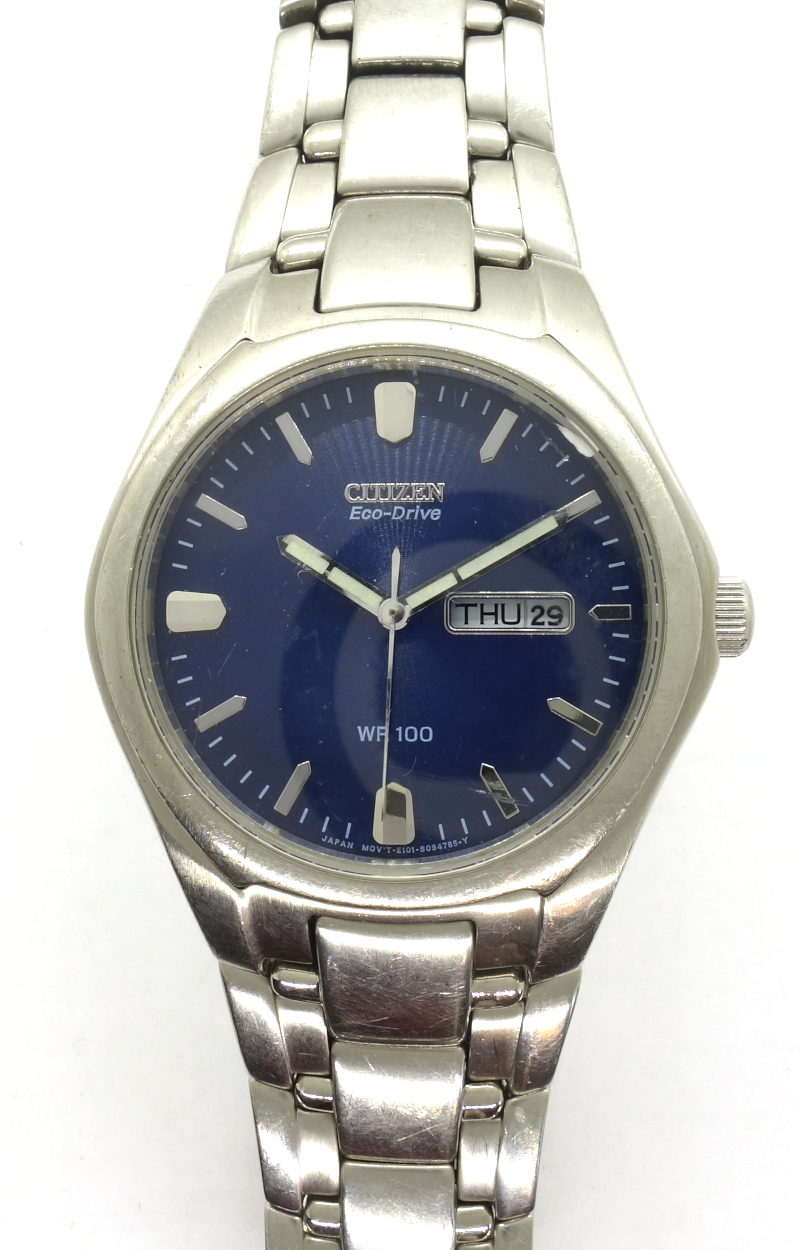

Citizen Eco Drive gents watch
