Cortébert 665

Description

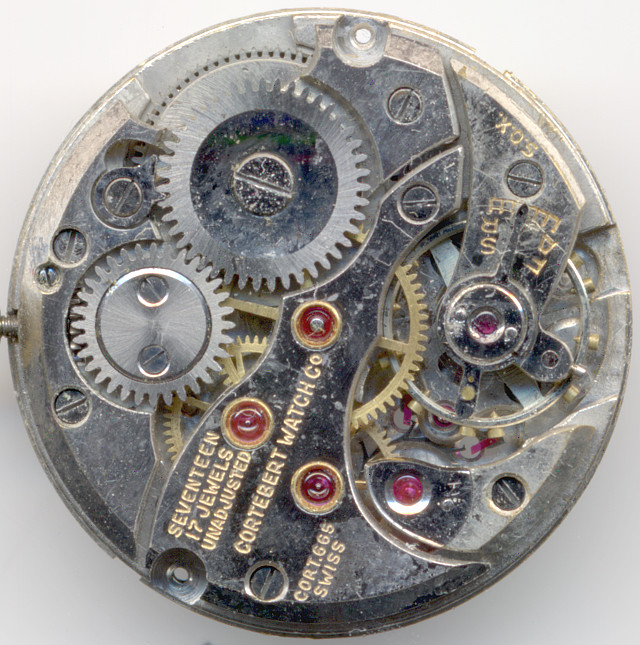

The Cortébert 665 shown here is from a time, when there was yet no need for cutting costs. It’s a 10 12 ligne pallet lever movement with decentral seconds indication, originating probably from the 1940ies.

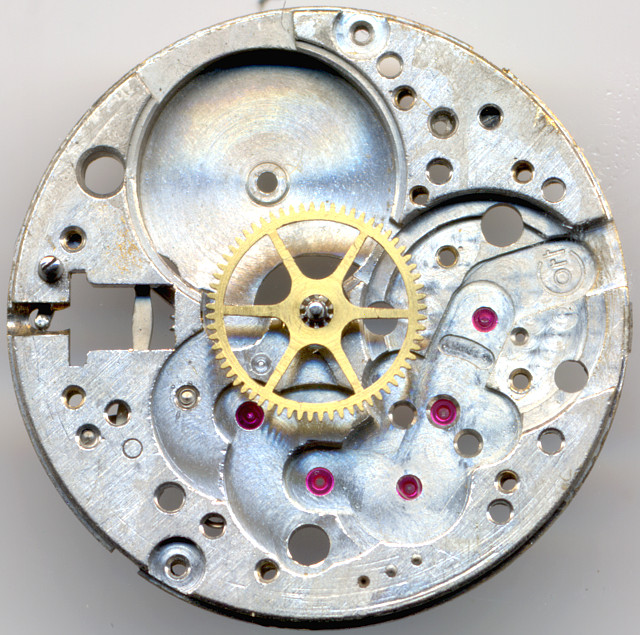

base plate

base plate

It’s a pity, that the plugged chatons are only used on the movement side, but nevertheless, all bearings are made of high quality rubies. Additionally on the minute wheel with its curved legs, you can see the exceptional quality.

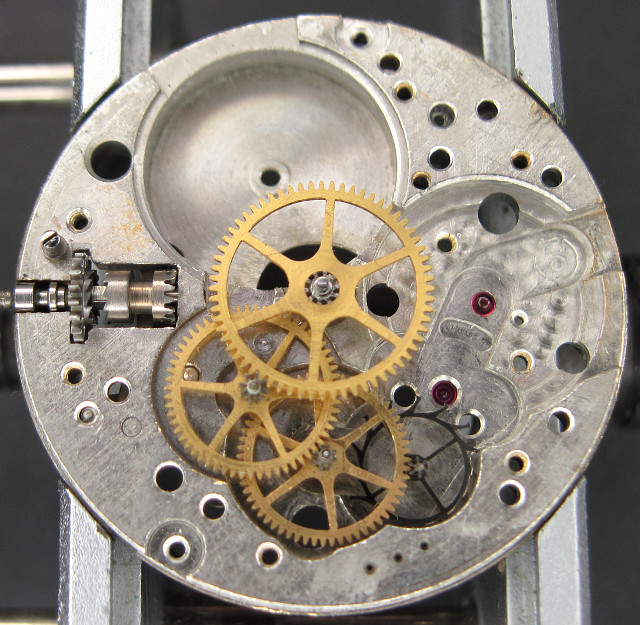

gear train

gear train

The gear train is still the classical one with decentral second at “6”, with a third wheel and a center minute wheel, which is directly driven by the mainspring barrel.

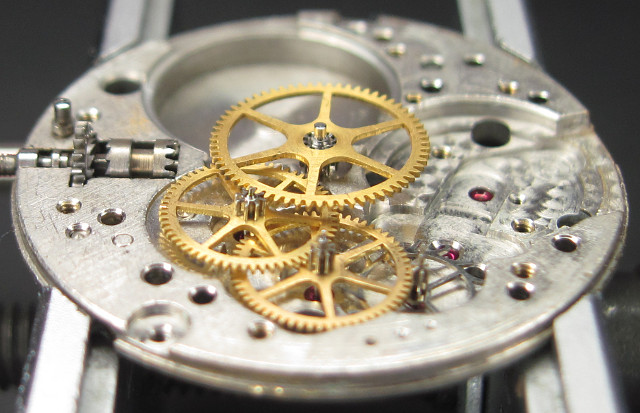

side view of the gear train

side view of the gear train

The screw balance, unfortunately only of standard quality, no Glucydur or golden balance, is not shock protected and beats contemporarily slow with 18000 A/h.

Minute-, third- and fourth wheel are beared under one bridge, the escapment wheel below a own cock. This one is very nicely made with a cap jewel and highly polished large setting. It reminds of expensive pocket watch movements.

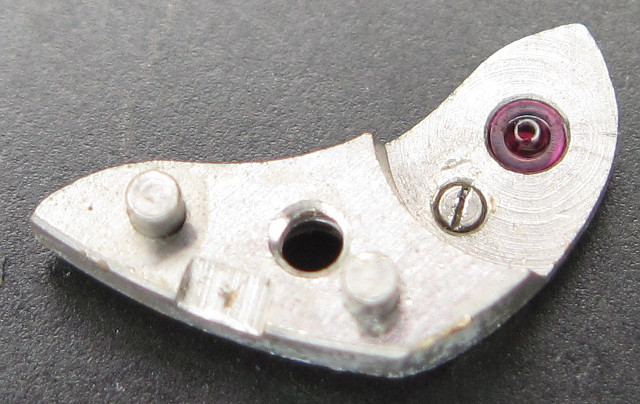

inside the escapement wheel cock

inside the escapement wheel cock

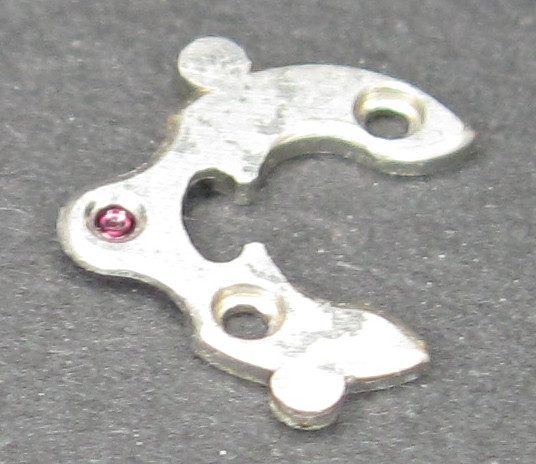

Another unusual fact is, that the lever is beared under a bridge(!) with two screws:

escapement lever bridge

escapement lever bridge

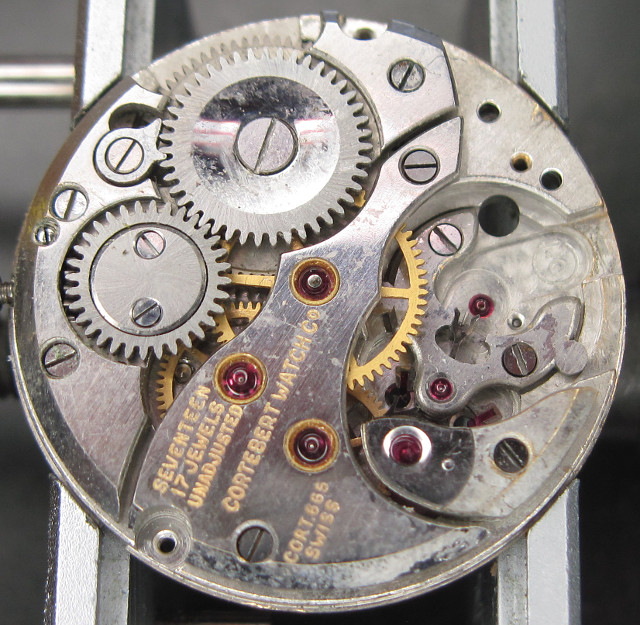

And that’s the way, the movement looks with balance removed:

movement without balance

movement without balance

On the dial side, you see apart from the specially shaped setting lever angel also parts of a minute dial, which was used that time to regulate the movements before casing them in.

Cortebert 665 dial side

Cortebert 665 dial side

In the lab

The specimen shown here came in a fragment of a case with missing crystal and non fitting back. It was glued(!) into the case together with the dial. The glue couldn't fully be removed, there were even parts on the balance cock, which stayed and hence, the movement cannot be regulated any more. Additionally, the hairspring is a bit damaged with glue.

The movement got a full service since it was gummed up. It now works at least, but with +190 seconds per day in position "dial down". But in consideration of the massive glue damage, this is surprisingly good and shows, but well the movement and its bearings are made.

Technical data

Manufacturer:Cortebert
Caliber:665
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Functions:hour, minute, decentral second
A/h:18000
Size:10 1/2''' (measured: 23,2mm)
Literature: Flume: 1947 31

Usage gallery

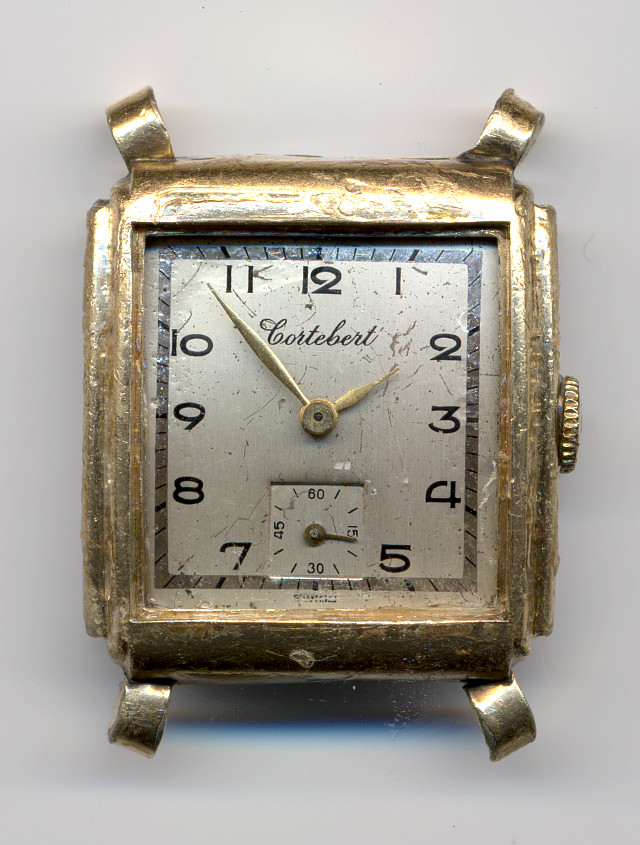

Cortebert mens' watch (U.S. export version)

Cortebert mens' watch (U.S. export version)
