Cupillard 233

Description

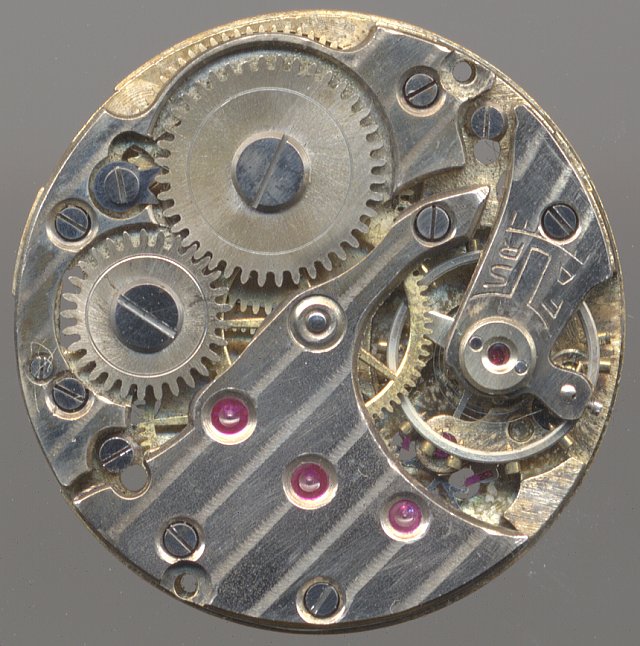

The Cupillard 233 is an old french handwound movement, which was produced for several decades. When in 1965 the France Ebauches was founded and the Ebauches Cupillard were part of them, the caliber 233 was produced from then on as FE 233-60.

The caliber 233 is a 15-jewel movement with decentral second hand at “6”. The strips on the plate are visually appealing and especially the silvering of the plates is very nice. You can see it also on those spots, which decolored over the time. With a silver floor cloth they start shining again.

Technically, this movement resembles clearly the state-of-the-art of the 1940ies with its non shock-protected screw balance, the 15 jewels, the yoke winding system and the sugar loaf screws for the dial.

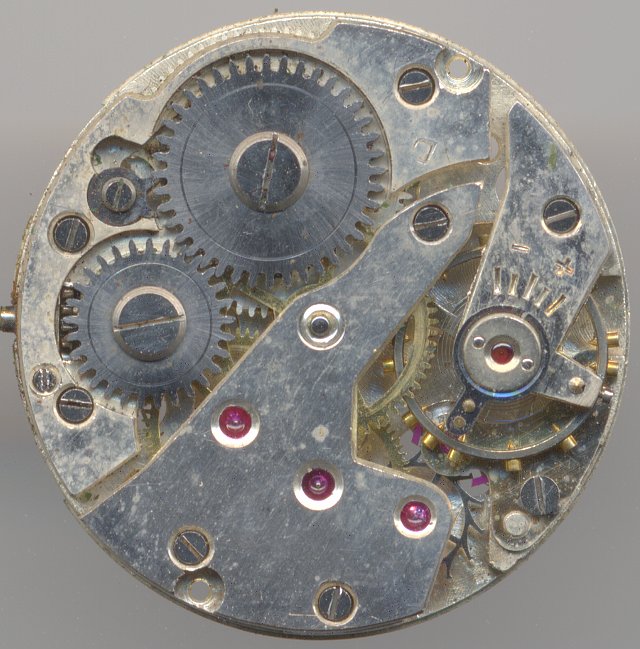

modern version with different bridge

modern version with different bridge

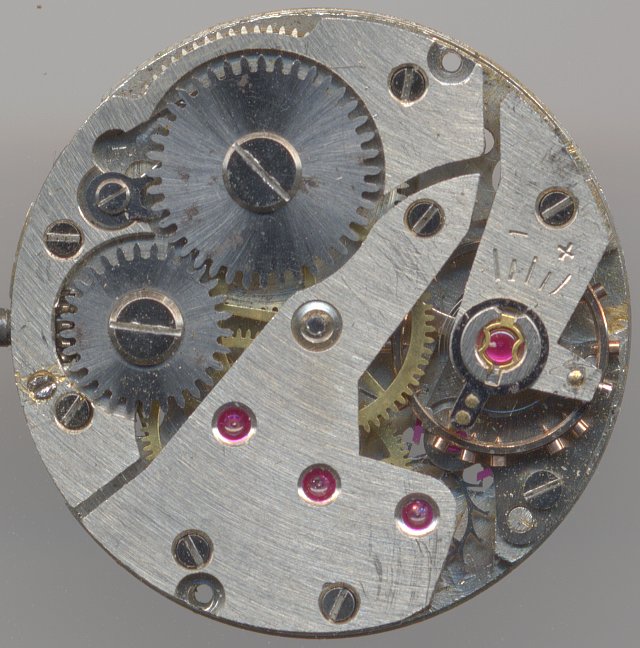

modern version with Incabloc shock protection

modern version with Incabloc shock protection

Newer versions of that movement used a differently shaped gear bride and an Incabloc shock protection system. The best version even contained a gold-toned Glucydur balance with screws.

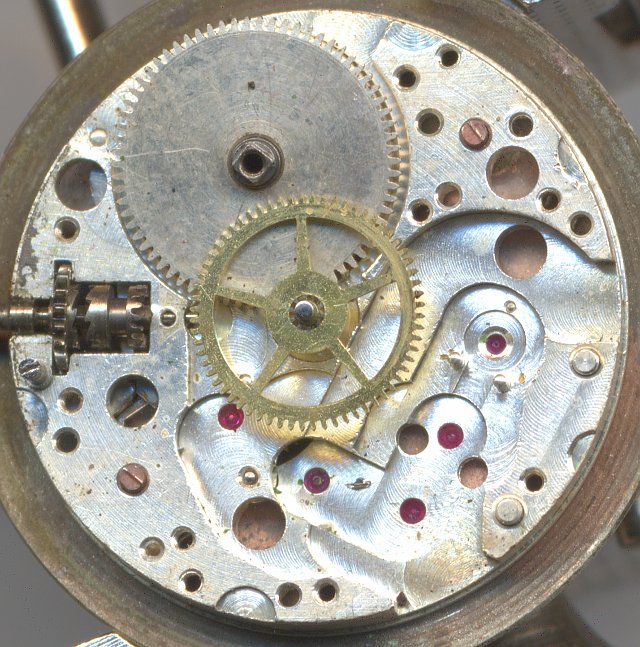

main plate

main plate

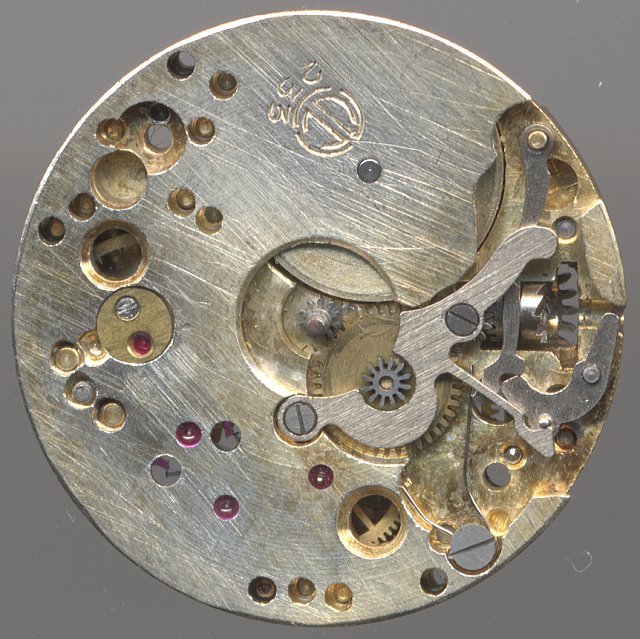

Cupillard 233 dial side

Cupillard 233 dial side

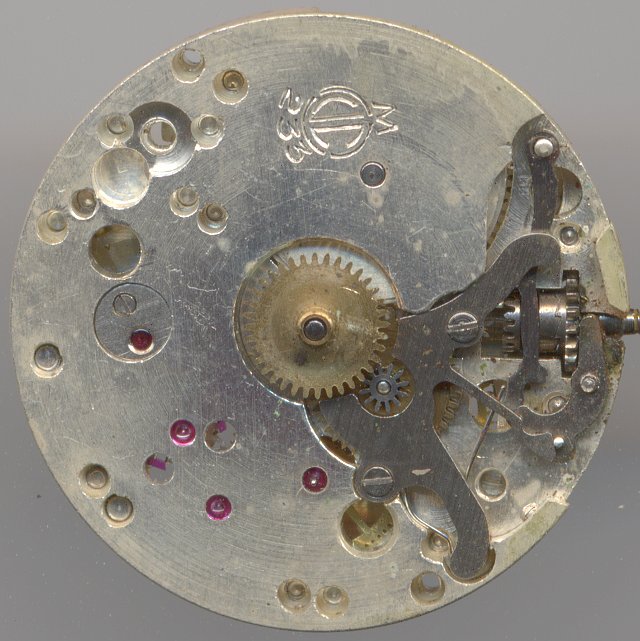

dial side, modern version

dial side, modern version

You can spot minimal differences between the old and the more modern version on the dial side.

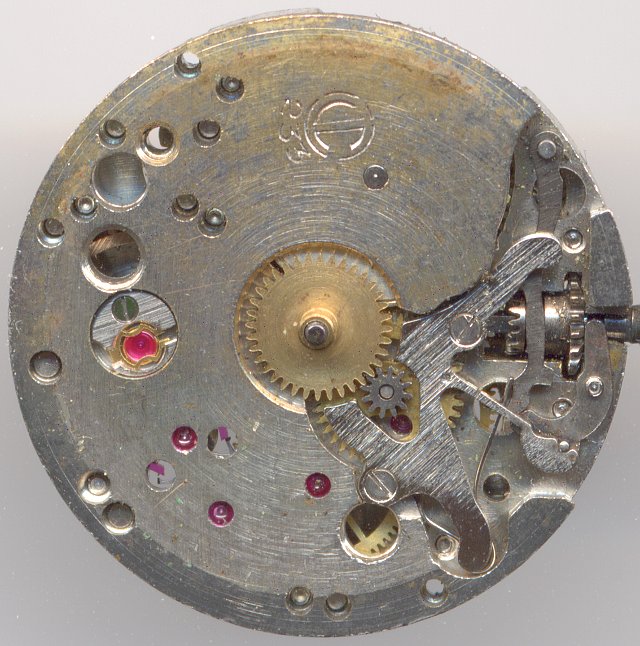

dial side view, even more modern version

dial side view, even more modern version

Technical data

Manufacturer:Cupillard
Caliber:233
Number of jewels:15
Escapement:Pallet lever
Balance types: Nickel screw balance
Glucydur screw balance
Shock protection(s): Incabloc
none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm / hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:s
Functions:hour, minute, decentral second
A/h:18000
Size:10 1/2'''
Literature: Flume: 1947 27

Usage gallery

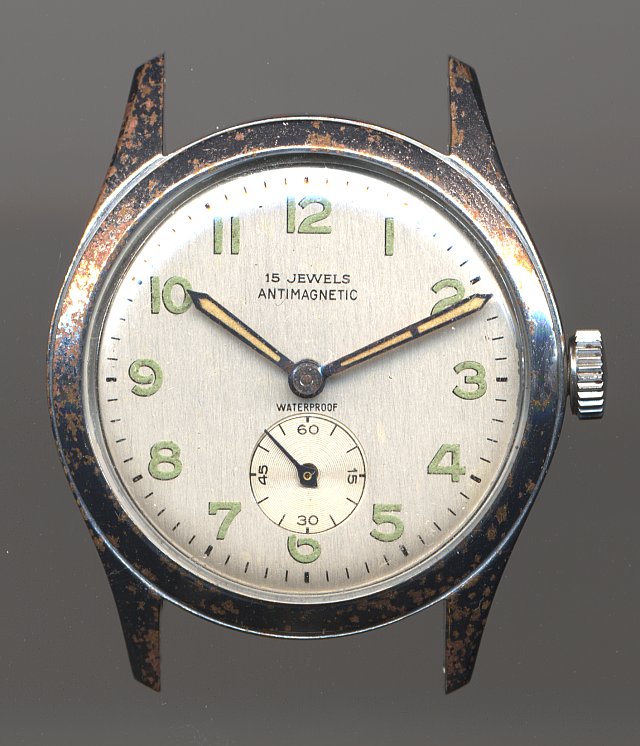

anonymous gents watch

anonymous gents watch

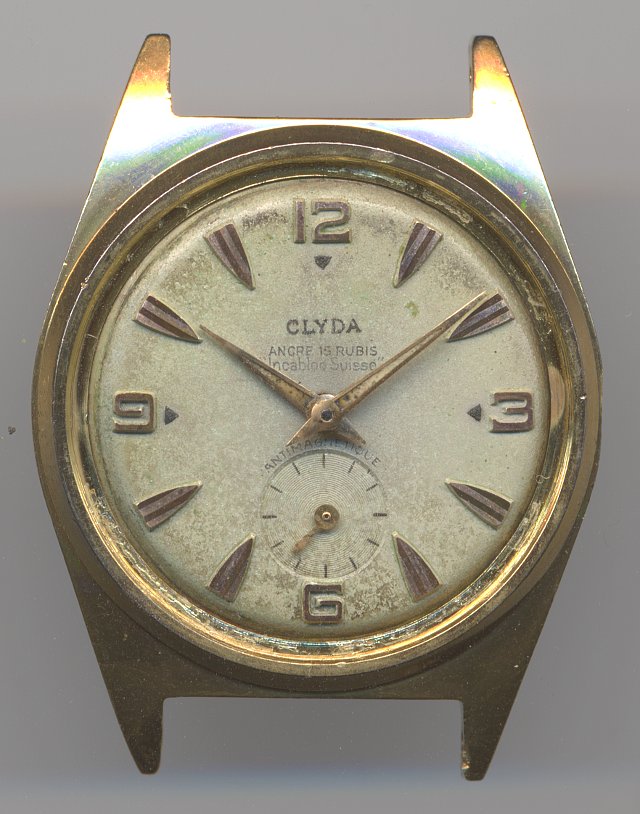

Clyda gents watch

Clyda gents watch

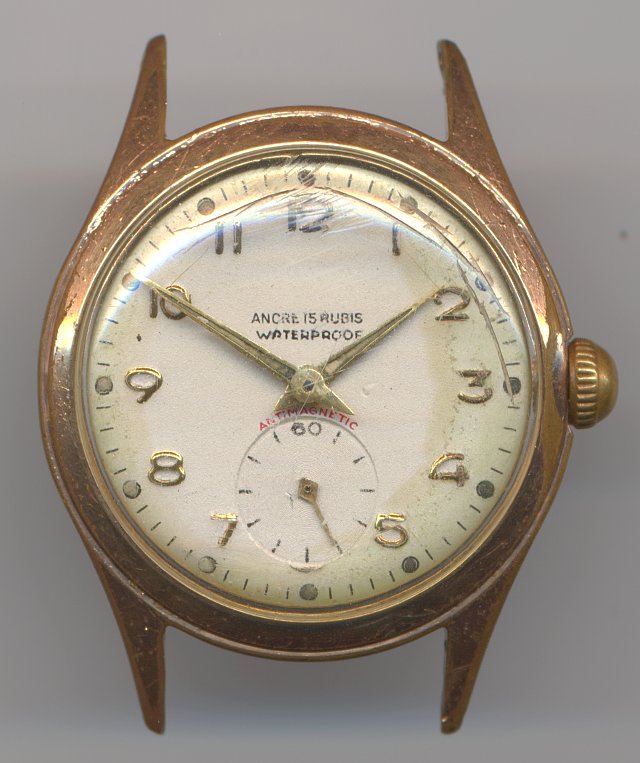

Ancre gents watch

Ancre gents watch
