DuRoWe 422

Description

The DuRoWe is a nominal 10.5 ligne movement with a directly driven center second, which is distinctive by its jagged bride shapes.

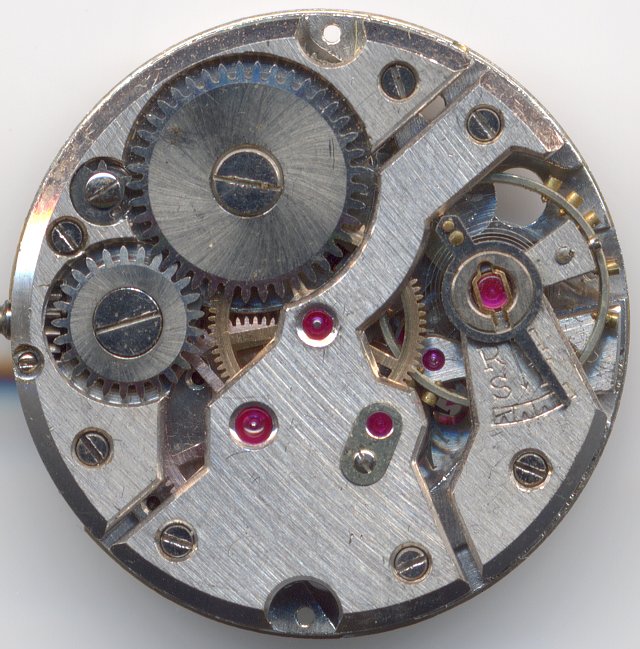

The screw balance is beared in two inhouse Duroswing shock protection systems and has got a hairspring, which is directly connected to the balance cock and can be regulated in its effective length by a long regulator arm. The balance controls a conventionally constructed pallet lever movement with directly driven center second and minute hands. The minute wheel is located under an own bridge.

Since this construction required few bearing jewels, an additional three cap jewels (two for the escapement wheel and one for the third wheel on the dial side) are used which leads to a total of seventeen hewels.

On the dial side, there’s, common for all better movements, a yoke winding system.

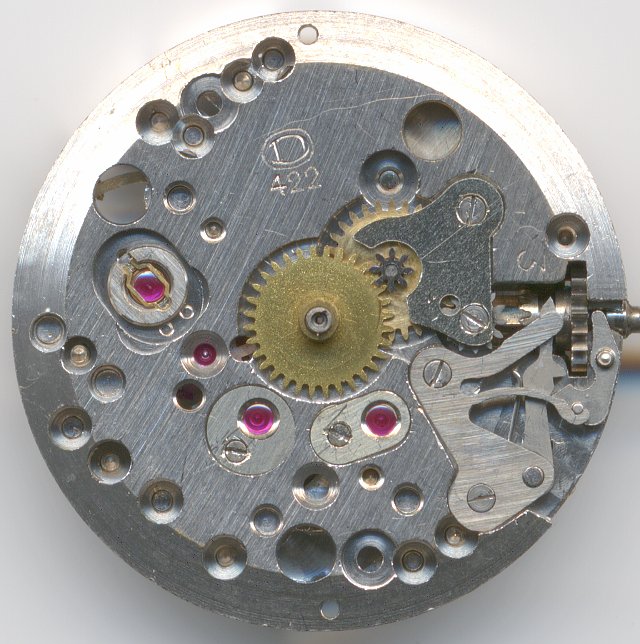

DuRoWe 422: DuRoWe 422 dial side

DuRoWe 422 dial side

Technical data

Manufacturer:DuRoWe
Caliber:422
Size:10 1/4'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Duro-Swing
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Features:
  • SCD (direct center seconds)
References: Flume: 1952 8
Mentioning in literature (years): 1953 - 1954

Usage gallery

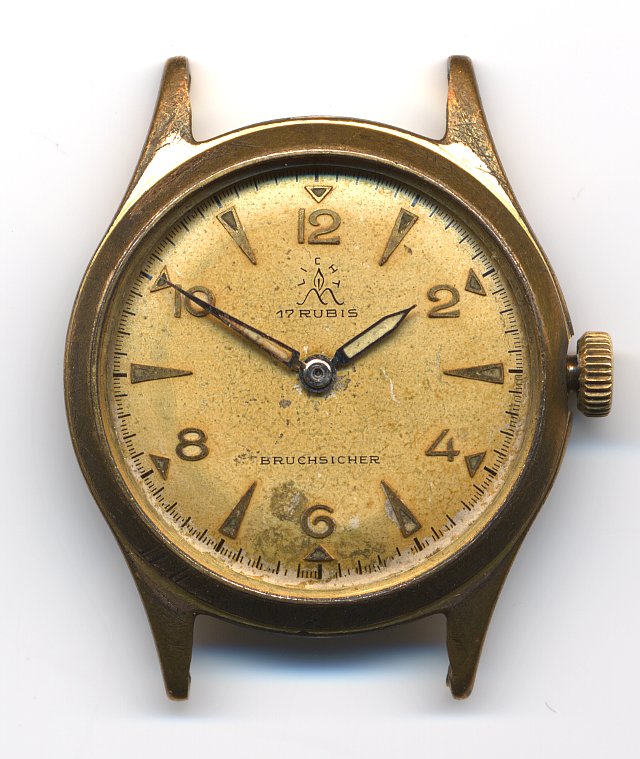

DuRoWe 422: Licht gents watch

Licht gents watch
