DuRoWe 7420/2 (INT)


DuRoWe 7420/2 (INT)

DuRoWe 7420/2 (INT)

Description

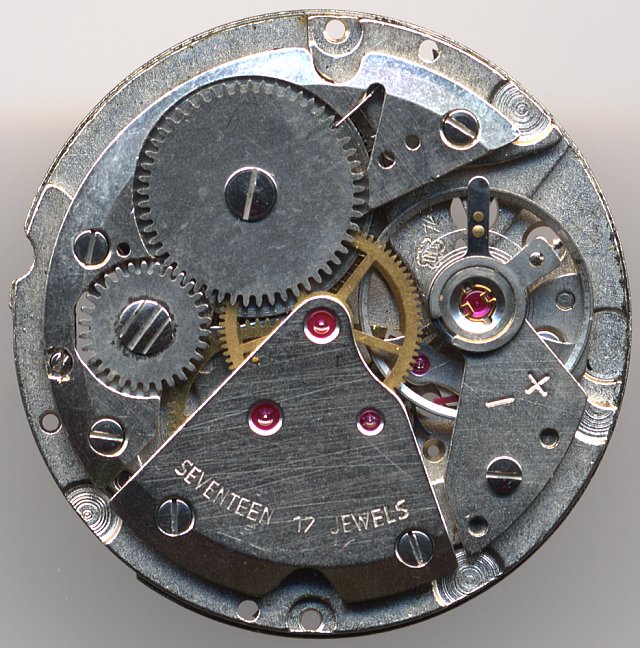

The DuRoWe caliber 74202 is a common 11 12 ligne handwinding movement with 17 jewels, which is constructed in a familiar way. It is a direct relative of the 74102 and differs only by the size of the main plate.

It uses a three-leg balance, which is beared in two Rufa-Anti-Shock protection systems and whose hairspring is connected to a moveable stud and adjusted by a long direct regulation arm.

The center second is directly driven and the minute wheel is in the center.

On the dial side, you see the yoke winding system.

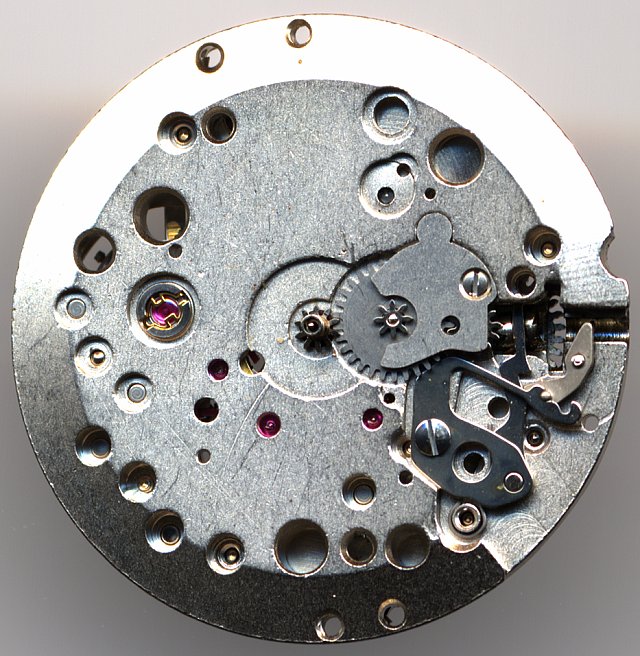

DuRoWe 7420/2 dial side

DuRoWe 7420/2 dial side

Technical data

Manufacturer:DuRoWe
Caliber:7420/2
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Rufa-Anti-Shock
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Features:SCD
Functions:hour, minute, second
A/h:21600
Size:11 1/2'''
Production period:1972 - ~1983
Literature: Flume: K3N1 -

Usage gallery

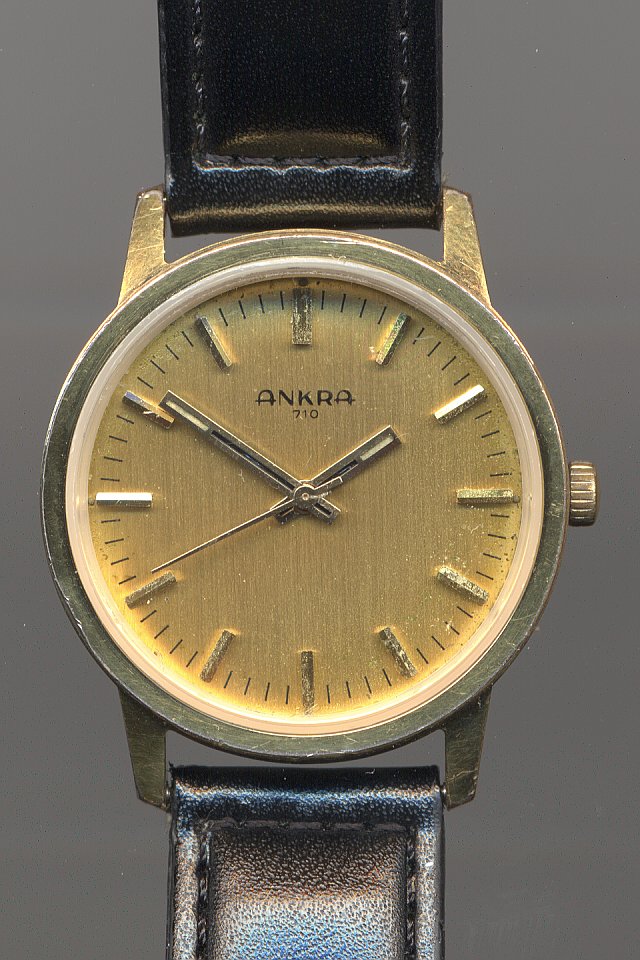

Ankra 710 gents watch

Ankra 710 gents watch
