EB 1297

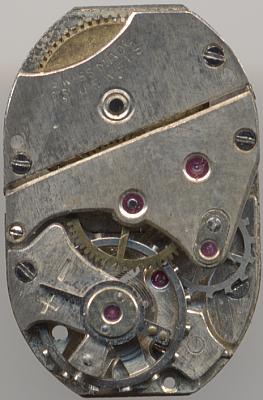

A technically interesting pin-lever movement: It does not only contain 15 jewels, which are, except the two anchor wheel cap jewels, all functional. It also contains a screw balance and an engraved adjustment minutery on the dial side. All features of much better movements.

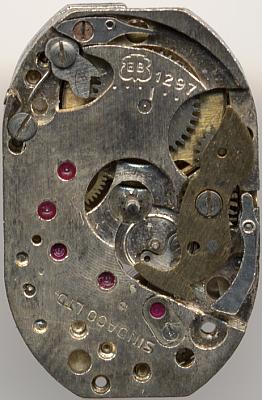

EB 1297: EB 1297 dial side

EB 1297 dial side

Technical data

Size:5 3/4 x 8 3/4'''
Number of jewels:15
Escapement:Pin lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Winding mechanism:rocking bar winding system
Setting lever spring:3 hole(s)
References: Flume: 1952 38
