EB 8321 / Kienzle 074/30


EB 8321 / Kienzle 074/30 |

EB 8321 / Kienzle 074/30

Description

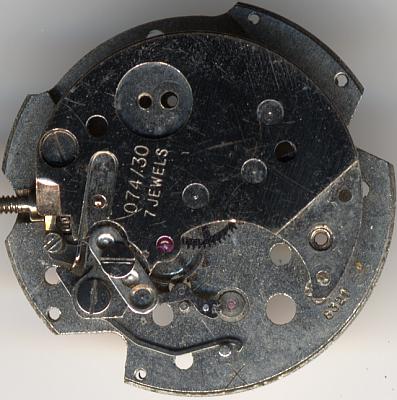

This movement is only incomplete. The winding barrel is missing, as well, as the balance. An interesting detail is, that the hand setting mechanism is located below the dial plate and not, as usual, above.

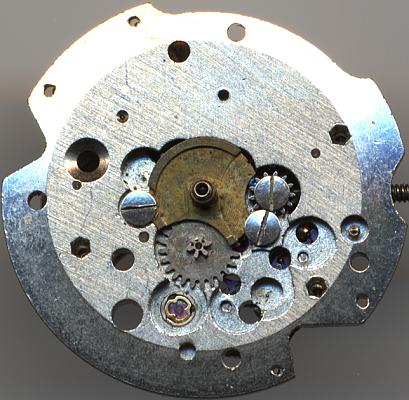

EB 8321 / Kienzle 074/30: EB 8321 dial side

EB 8321 dial side

Technical data

Manufacturer:EB
Caliber:8321
Size:8'''
A/h:18000
lift angle:55°
Number of jewels:7
Escapement:Pin lever
Balance types:Nickel anular balance
Balance bearing / direction hairspring:Clockwise
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, large driving wheel, mainspring barrel
Features:
  • SCD (direct center seconds)
References:Flume: K3 60
Mentioning in literature (years):1968
Data sheet:1967
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.
