Description

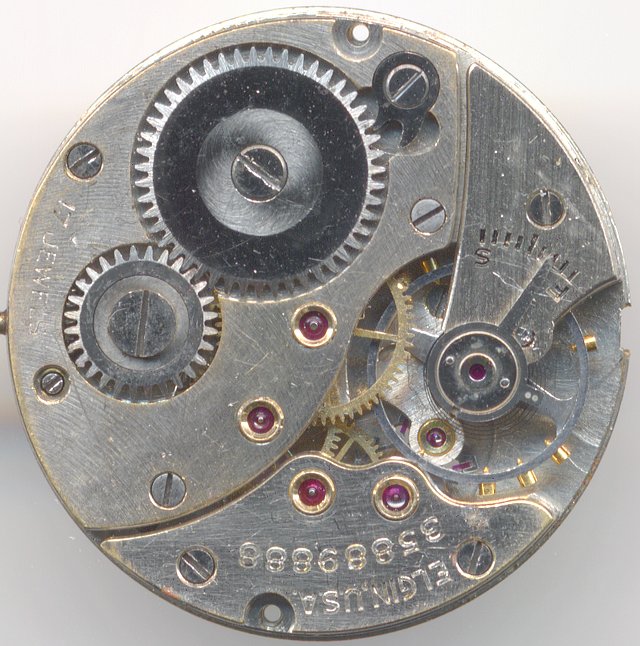

The Elgin 524, which was made in the 1930ies about 150000 times, is very well made movement, which pleases aesthetically and especially technically.

What you immideatly see is, that all (really all) bearing jewels are enclosed in chatons (golden-toned metal bushings) instead of being pressed directly into the plates. If ever a jewel has to be replaced, a chaton makes it much easier for a watchmaker.

The balance part is also high-quality: The two leg balance (not yet shock protected) contains golden-toned regulating screws and its hairspring is a breguet-type hairspring with its specially shaped end. Its effective length is adjusted by a long regulator arm.

Video on YouTube

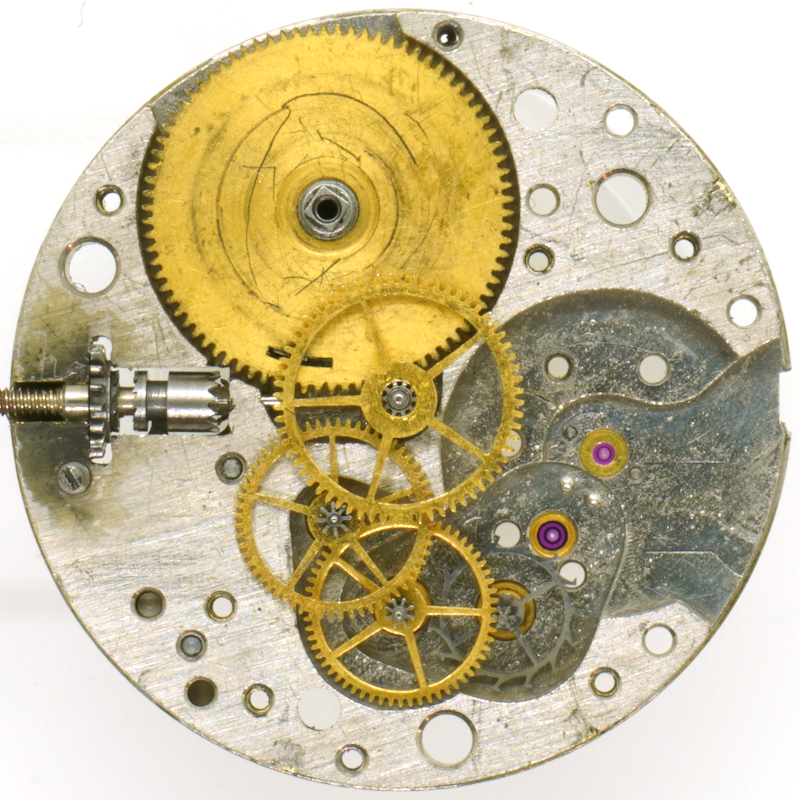

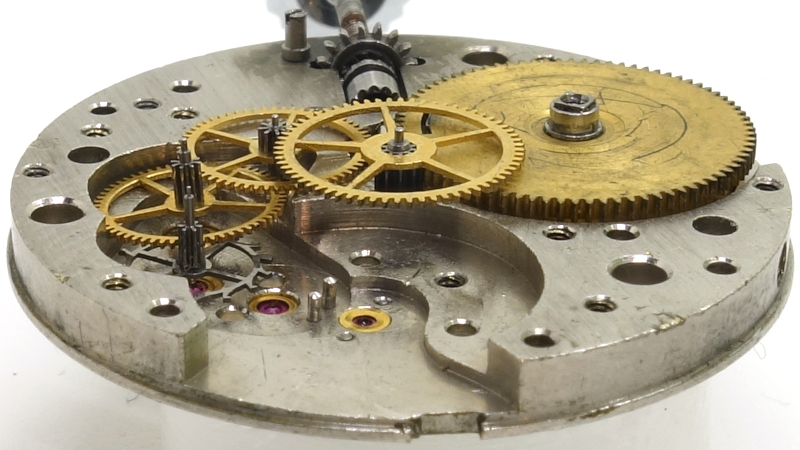

If you’re familiar with swiss movements, you will be a bit astonished by the plates here: While the small gear bridge houses only escapement- and fourth wheel, the large mainspring bridge not only houses the mainspring barrel and the minute wheel, but also the third wheel.

The angled brides are another indicator of a high class movement.

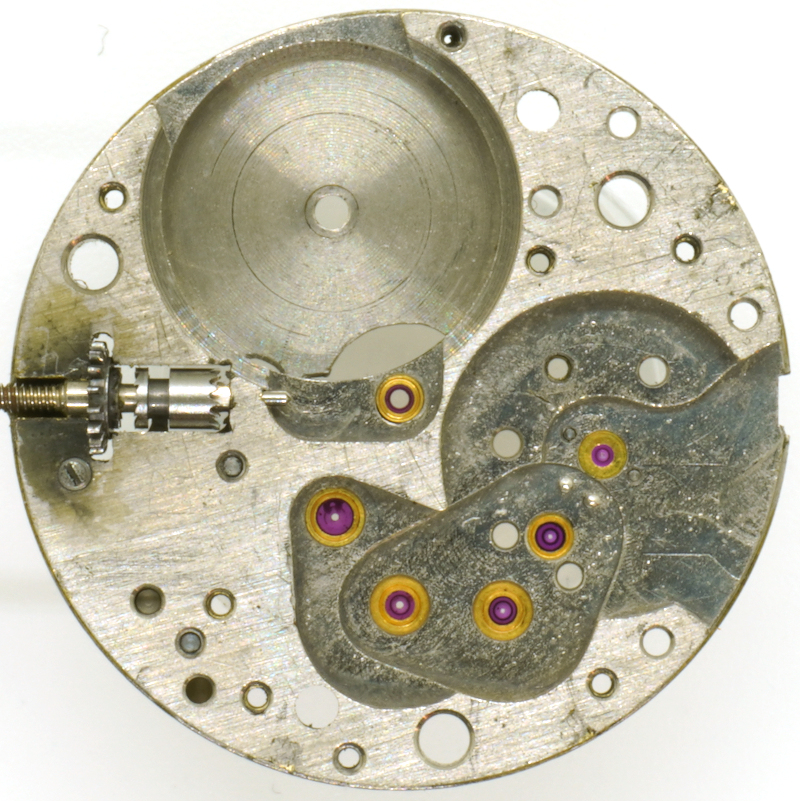

main plate

main plate

On the dial side, you see the yoke winding system with its uniquely shaped setting lever spring.

Elgin 524 dial side

Elgin 524 dial side

In the lab

It was not possible to test the specimen shown here on the timegrapher, since the hairspring is a bit broken and often gets into contact with the arms of the balance wheel, bringing it to halt.

Technical data

Manufacturer:Elgin
Caliber:524
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel
  • third wheel, center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Features:s
Functions:hour, minute, decentral second
A/h:18000
Size:10 1/2''' (measured: 23,2mm)
Production period:1935-1939
