Elgin 687


sdfsdf

Elgin 687

Description

The Elgin 687 is a 10 12 ligne (23mm) manual wind movement from the USA, most likely from the 1950ies.

Video on YouTube
base plate

base plate

This movement has got synthetic rubies on all important bearings, even for the minute wheel.

gear train

gear train

The gear train is a classical one: The screw balance in beared in two Incabloc shock protection bearings and beats slowly with 1800 A/h. The hairspring has got a Breguet end coil.

side view of the gear train

side view of the gear train

The Elgin 687 does’t have a center second, but at 6 o’clock there’s the fourth wheel, carrying the hand for the subseconds indication.

Escapement- and fourth wheel are located below an own brige, the other gears and the mainspring barrel under a second bridge.

Elgin 687 dial side

Elgin 687 dial side

There’s nothing unusual on the dial side; besides the yoke winding system, you can see the dial side Incabloc bearing.

Technical data

Manufacturer:Elgin
Caliber:687
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel
  • third wheel, center minute wheel, mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
Functions:decentral second
A/h:18000
Size:10 1/2''' (measured: 23,0mm)

Usage gallery

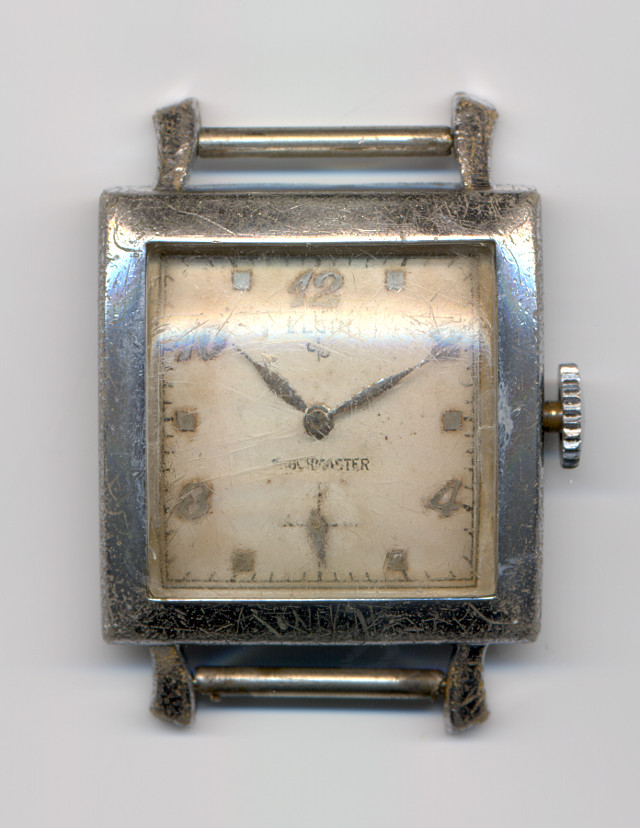

Elgin Shockmaster mens' watch
