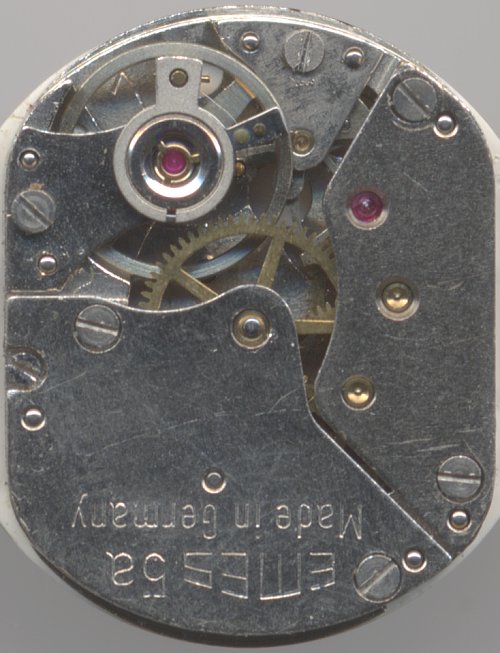

Emes 5a


Emes 5a

Emes 5a

Description

The german manufacturer Müller-Schlenker (“Emes”), which usually was known for their alarm-, desk- and wall clocks, made this unusual ladies’ movement. All gears are turning in bearings, most of them made of brass, but the anchor wheel (or alternatively the escapement lever) runs in ruby bearings. Due to its small size, but also to the nickel balance with pivots, the shock protection and the movable hairspring stud, this pin lever movement belongs to the better ones.

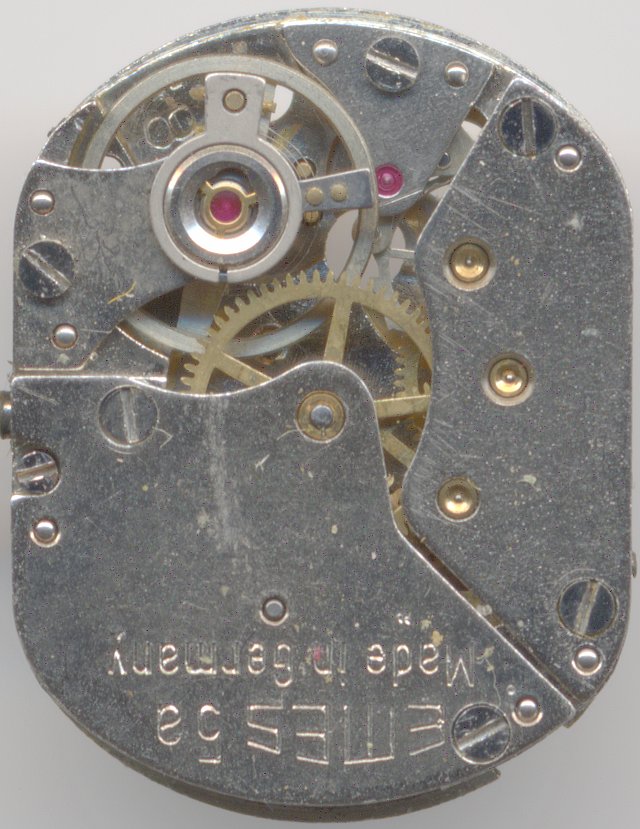

different version

different version

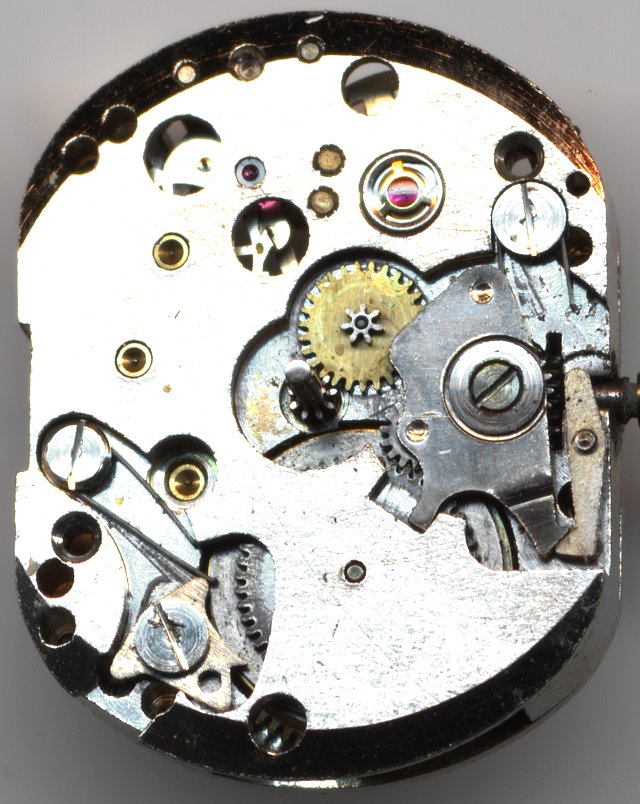

Emes 5a dial side

Emes 5a dial side

Technical data

Manufacturer:Emes
Caliber:5a
Number of jewels:7
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): Monorex
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:1 hole(s)
Functions:hour, minute
A/h:18000
Size:6 3/4 x 8 1/2''' (measured: 15,2 x 19,2mm)
Literature: Flume: K3 95

Usage gallery

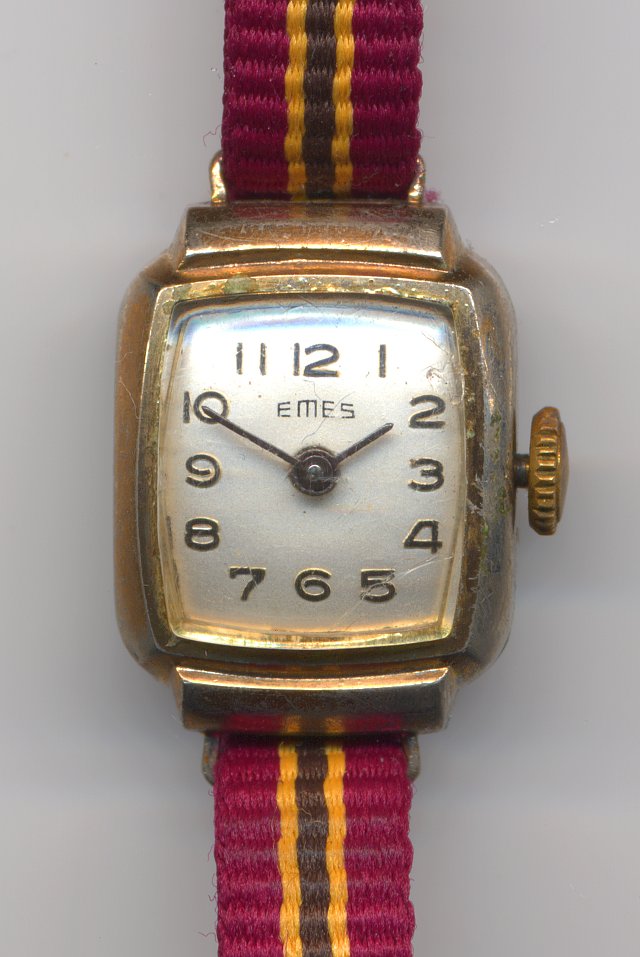

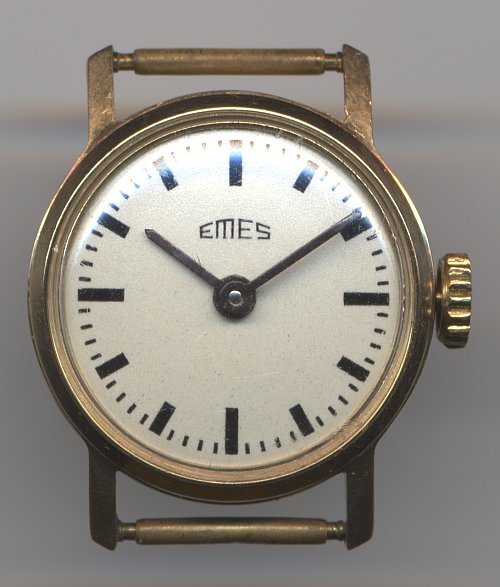

Emes ladies' watch

Emes ladies' watch

Emes ladies' watch

Emes ladies' watch
