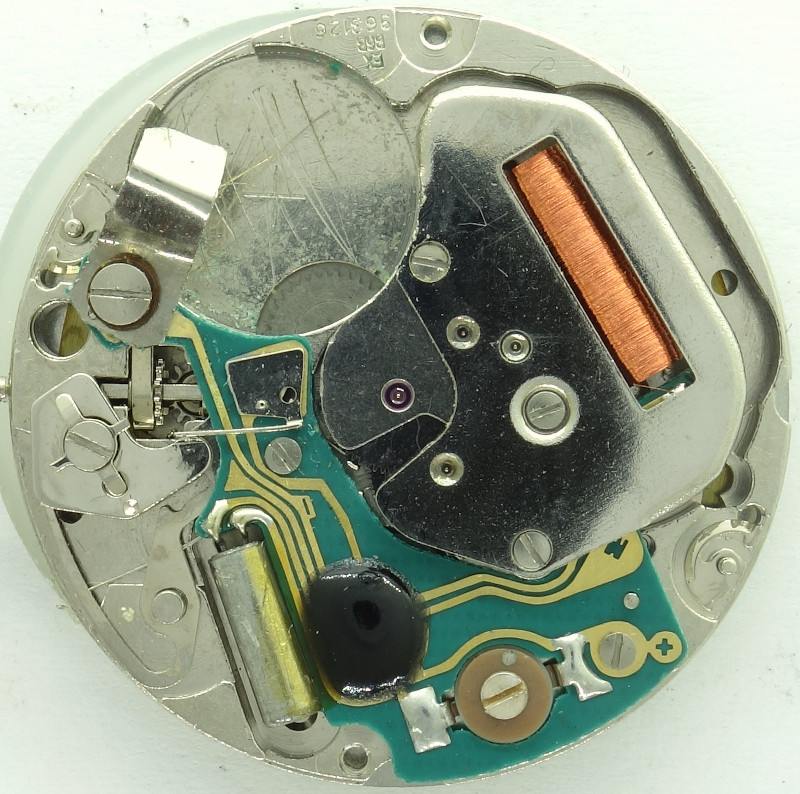

ESA 963.126

Description

From the 1980s dates the quartz caliber ESA 963.126, from the so-called “Free-Line” caliber series 963.

It has the large size of 11 1/2 lignes and was produced as one of the last movements by FHF, but under the roof of the Ebauches AG. That way, it was labelled as an “ESA” caliber.

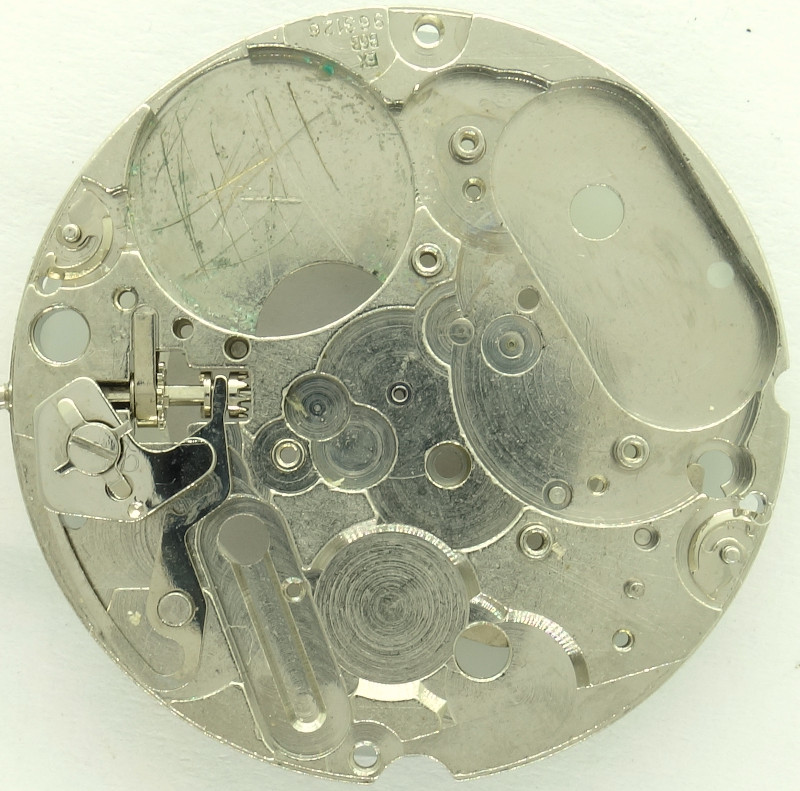

ESA 963.126: base plate

base plate

The base plate shows already modern features, so you won’t find bearing jewels for example, and the setting mechanism is located on the movement side, too.

ESA 963.126: gear train

gear train

The gear train is typical for a contemporary quartz movement: It starts with the rotor of the stepper motor, followed by an intermediate wheel, the center seconds wheel and finally the third wheel, which drives the hands on the dial side.

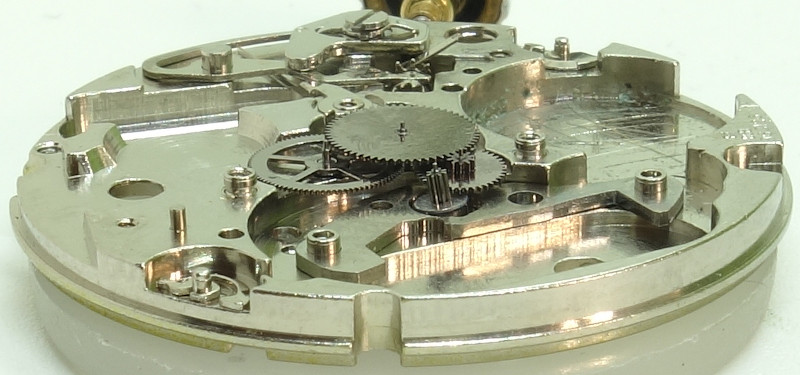

ESA 963.126: side view of the gear train

side view of the gear train

Since the movement was made in the 1980s, due to the progress in electronics and the production of mechanical components, it was already pretty flat.

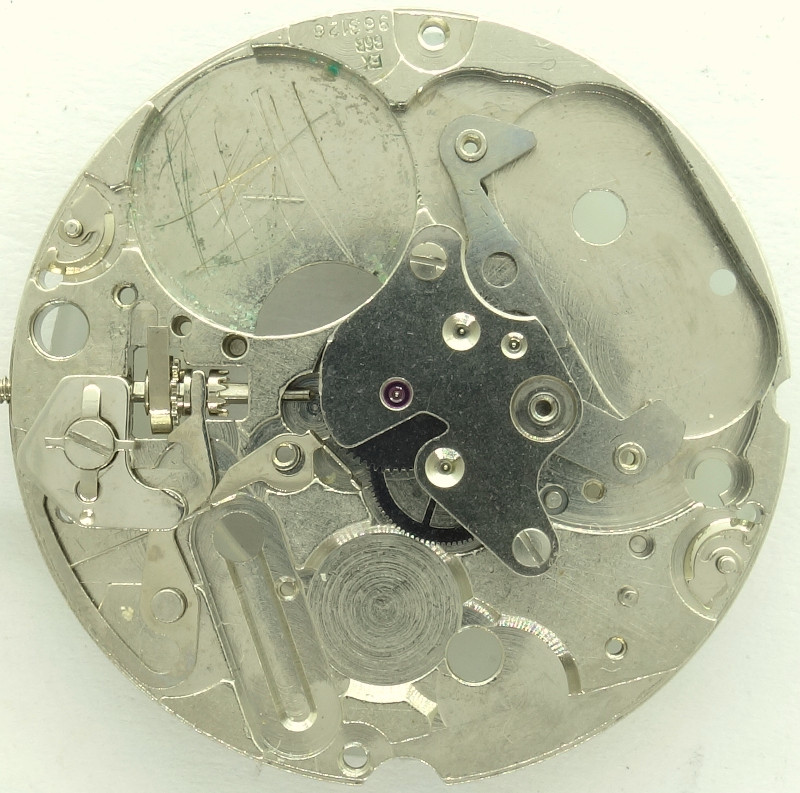

ESA 963.126: electronics missing

electronics missing

The gear train bridge is a just a stamped part with simple bearings, only the visible bearing of the center seconds wheel got the only jewel of the whole movement.

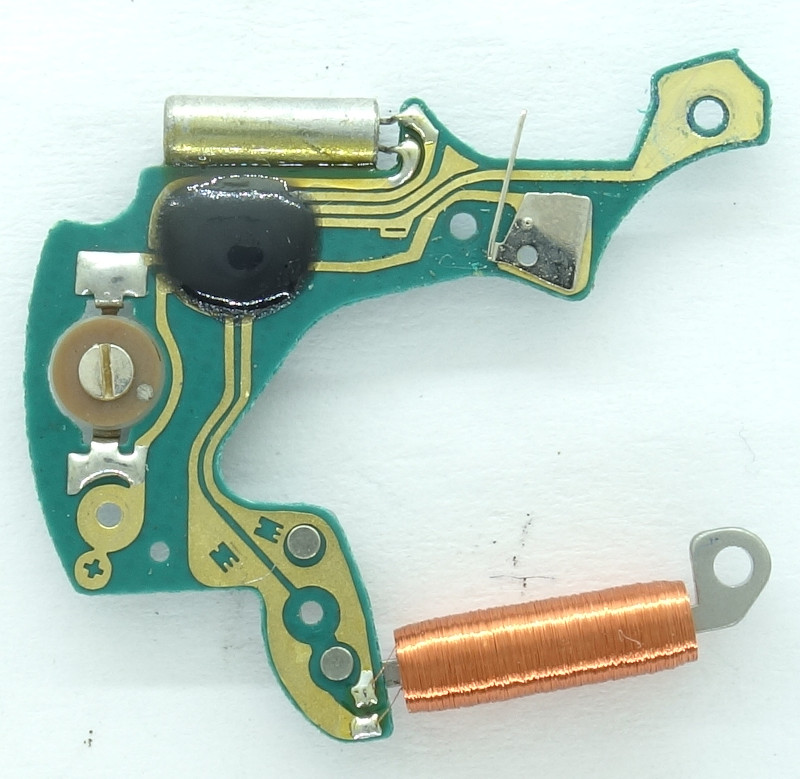

ESA 963.126: electronics plate

electronics plate

The electronics is contemporarily small, the chip is bonded as a black blob onto the PCB, the quartz has got a tiny diameter, but we still have a trimmer capacitor to adjust the accurancy.

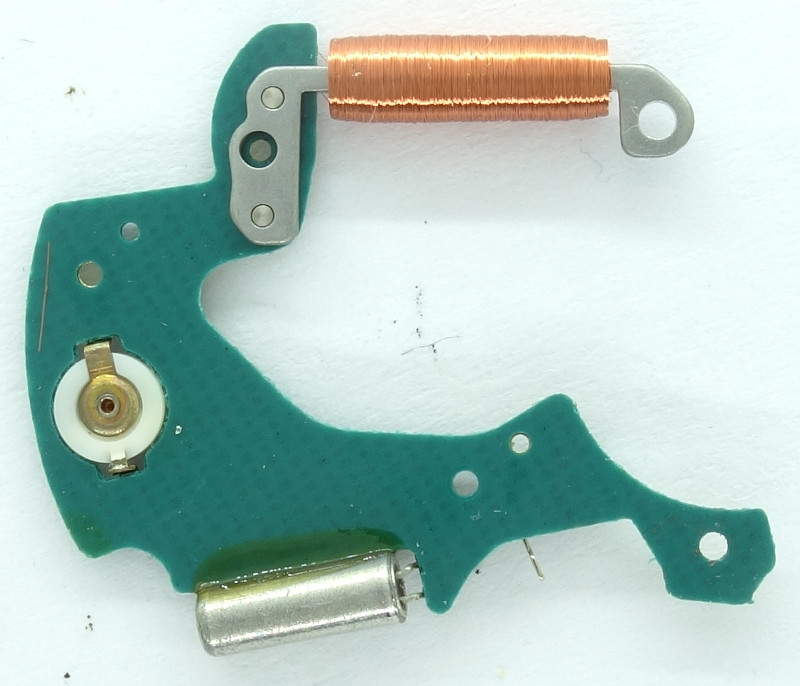

ESA 963.126: lower side electonics board

lower side electonics board

The stepper coil, whose fragile wires are soldered onto the PCB, is fix attached to the electonics plate.

ESA 963.126: w/o coil protector

w/o coil protector

It’s notable, how few space the coil uses of the available space.

To protect the fragile coil, the ESA 963.126 has got a metal cover.

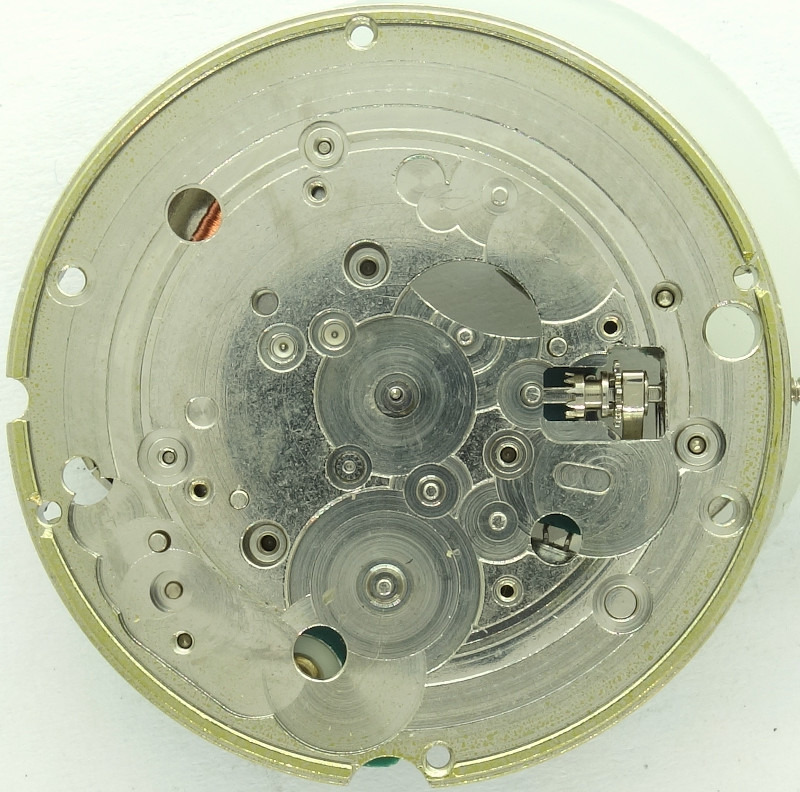

ESA 963.126: empty dial side

empty dial side

On the yet empty dial side, you see the recessings for the different calendar mechanisms of the “Free Line” caliber series.

At position 7 o’clock near the center, the pinion of the third wheel is visible, which drives the hands works.

ESA 963.126: hands works

hands works

With the large minute wheel, on which the cannon pinion is attached to with a slipping clutch, the hands works are similar to those of the familiar mechanical ETA calibers.

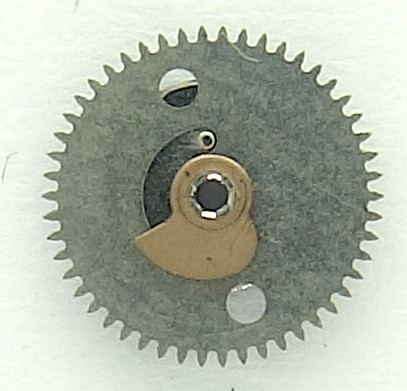

ESA 963.126: lower side date switcing wheel

lower side date switcing wheel

The date wheel has a movable cam that realizes the instant day and date switches at midnight by building up power over the day and instantly releasing it at 12am.

On the top of the date wheel the double executed gear levers can be seen. Its bottom part engages with the date ring, its upper part with the weekday disc.

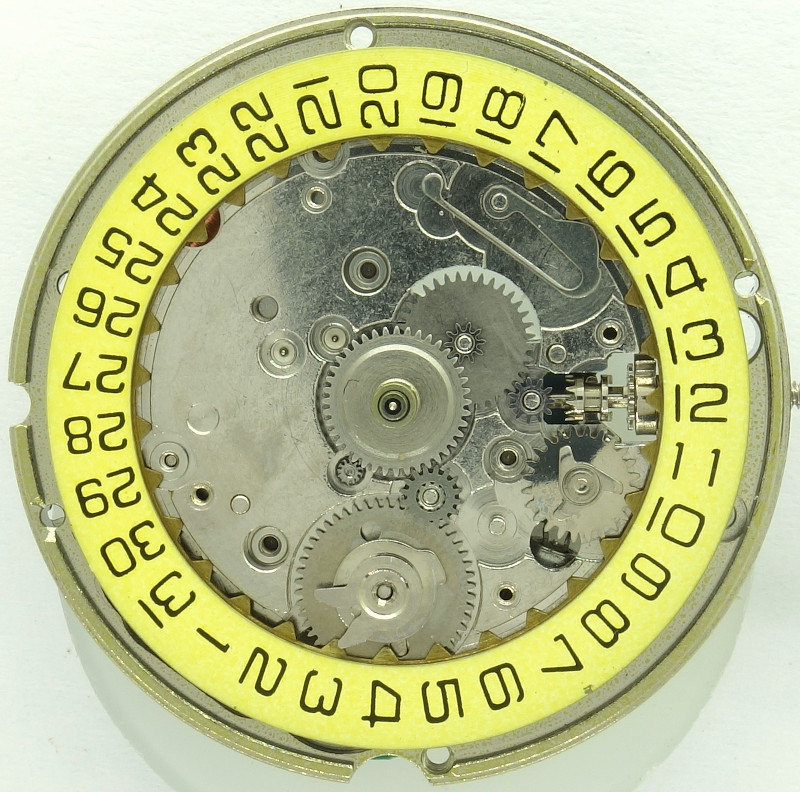

ESA 963.126: visible calendar mechanism

visible calendar mechanism

At position 4 o’clock, you can seen the flying beared correcting wheel for the date ring.

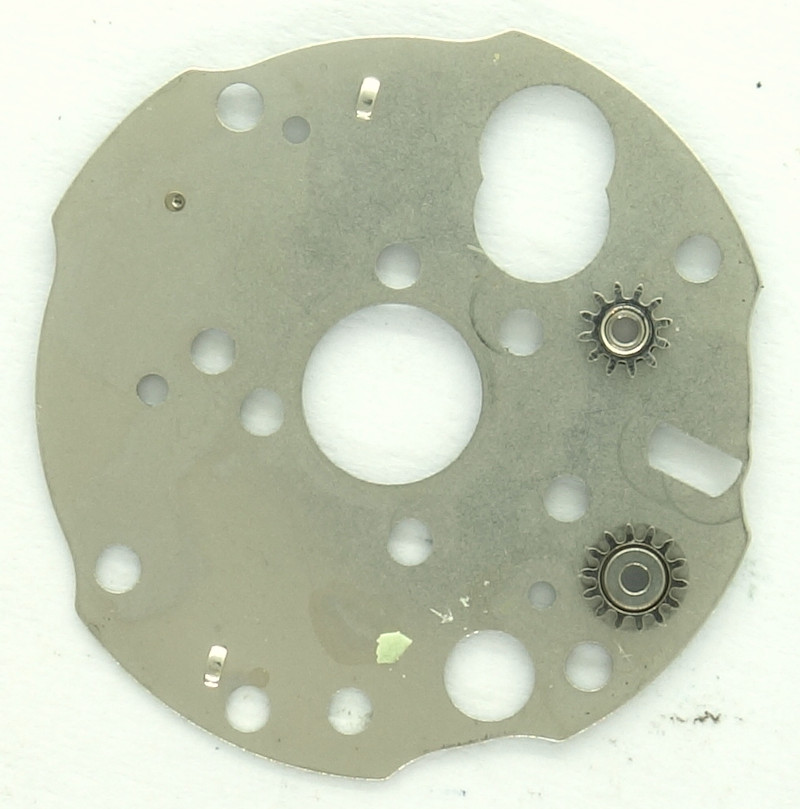

ESA 963.126: lower side calender mechanism cover

lower side calender mechanism cover

The calendar mechanism is covered with a plate, under which the two gears of the correcting mechanism are beared.

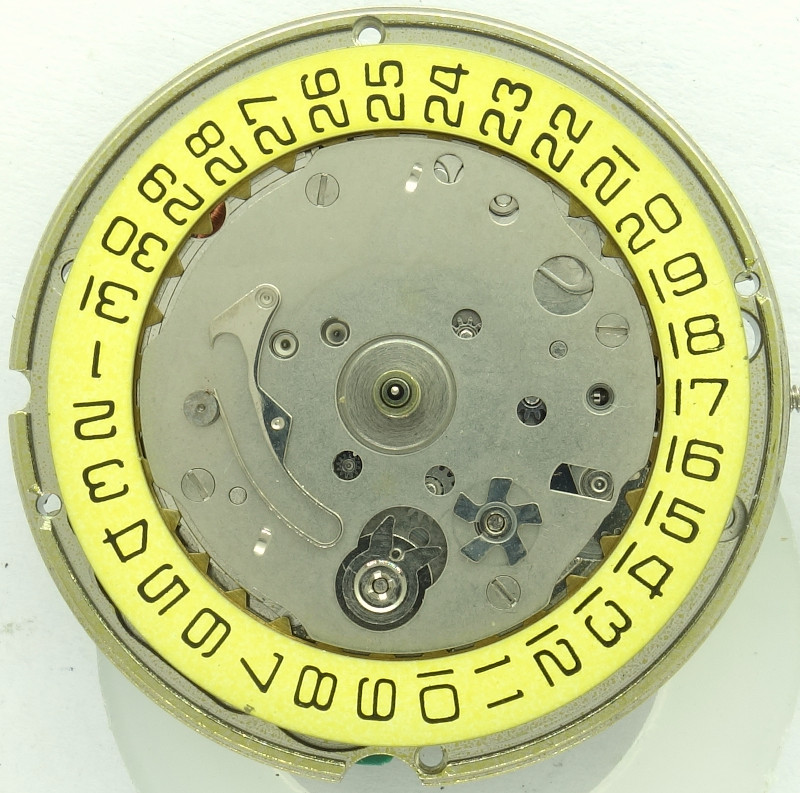

ESA 963.126: covered calendar mechanism

covered calendar mechanism

On the upper side of the cover, you can see the spring, which holds the weekday disc in position.

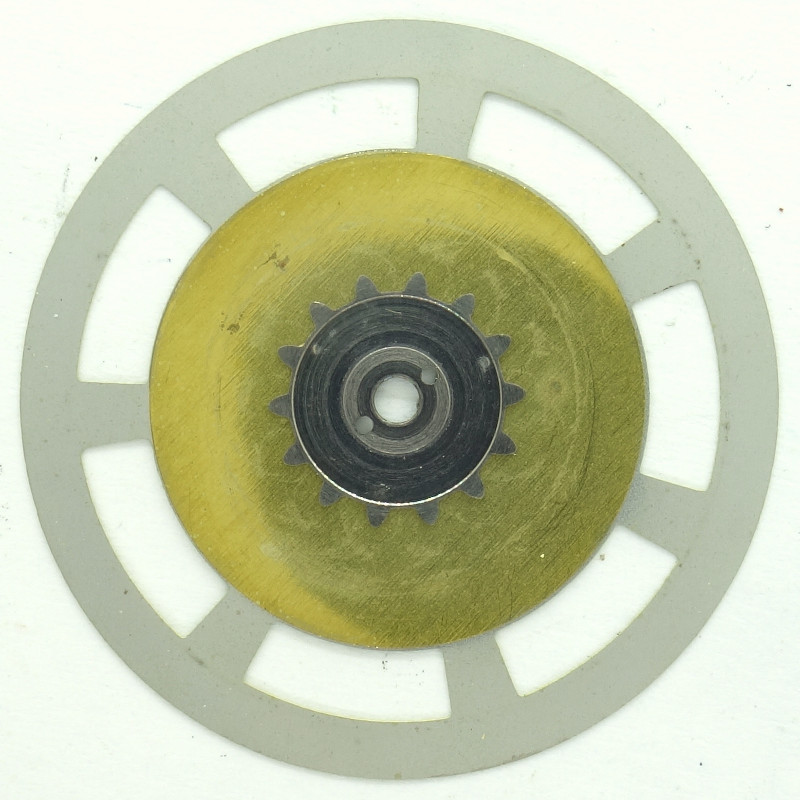

ESA 963.126: lower side weekday disc

lower side weekday disc

The weekday disc is made in a way, that the weekday is written in full on the outside of the date ring. It has got a star wheel on its lower side, which is used for advancing and holding it in position.

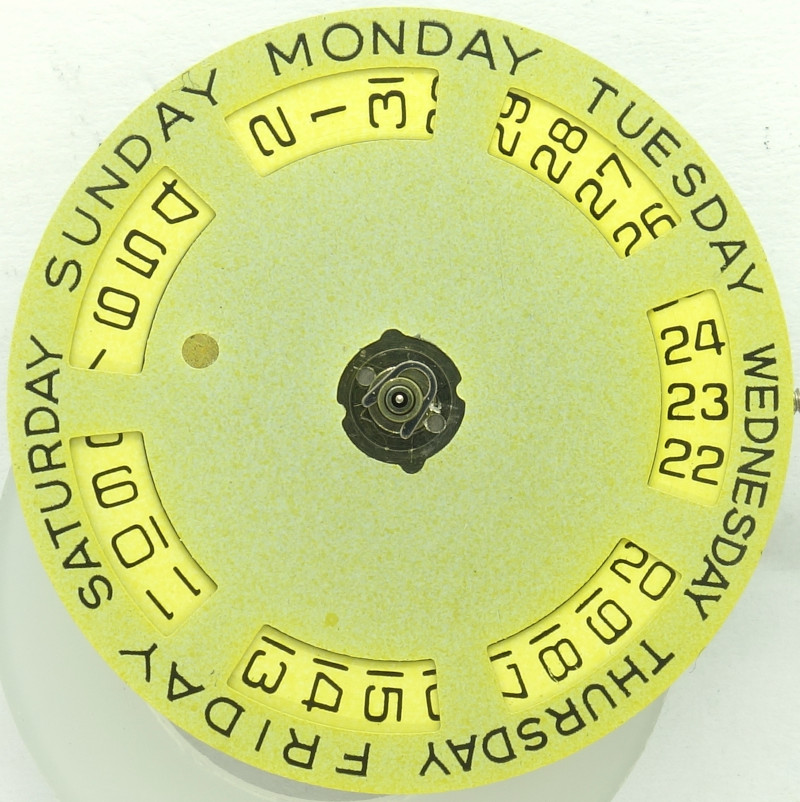

ESA 963.126: ESA 963.126: Dial side

ESA 963.126: Dial side

The yellow color of the calender indicators are remarkable. If there also existed other colors, and if yes, if for the a different caliber number was used, is unknown.

Technical data

Manufacturer:ESA
Caliber:963.126
Size:11 1/2''' (measured: 25,6mm)
Frequency:32768 Hz
Number of jewels:1
Escapement:Quartz
Construction:
  • rotor, transmission wheel, seconds wheel, third wheel
Attachment of setting lever:screwed
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
  • JG (weekday indication (aperture))
  • RDR (date corrector)
Inventory number:23025

Usage gallery

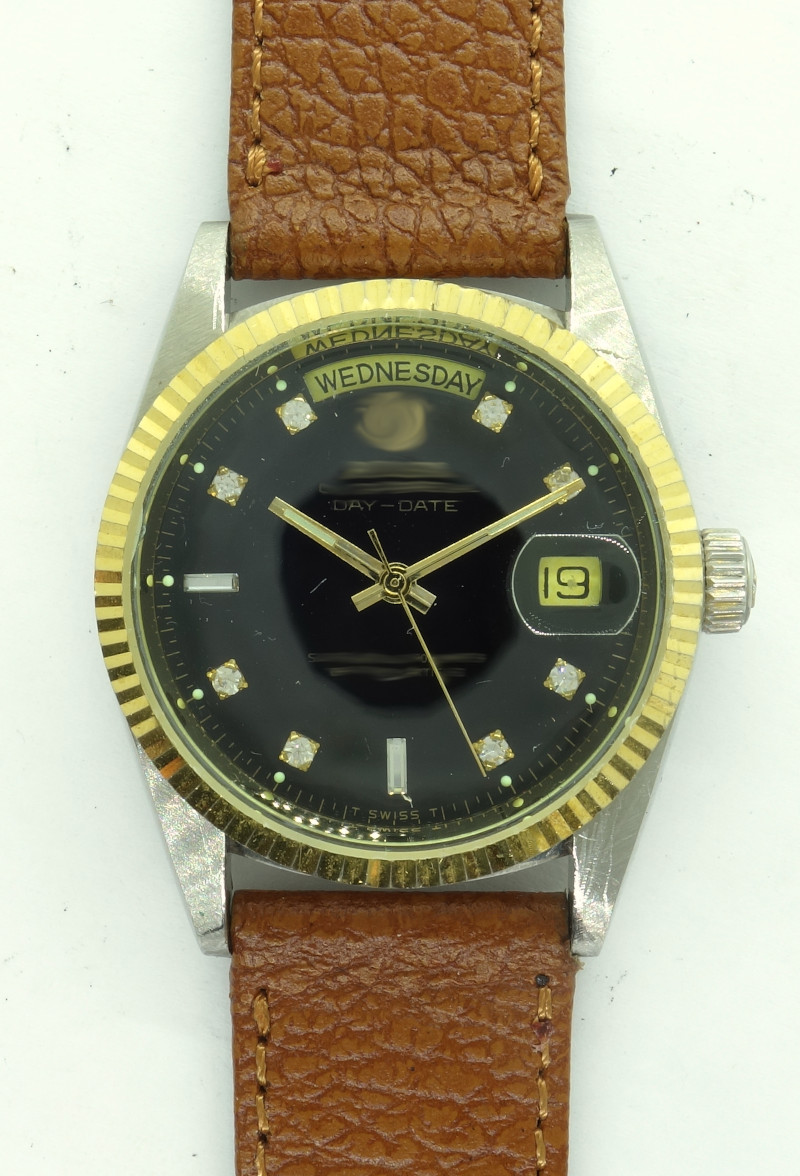

ESA 963.126: fake gents watch

fake gents watch

This movement and watch is a kind donation from Lars Schröder to the movement archive. Thank you very much for your great support!
