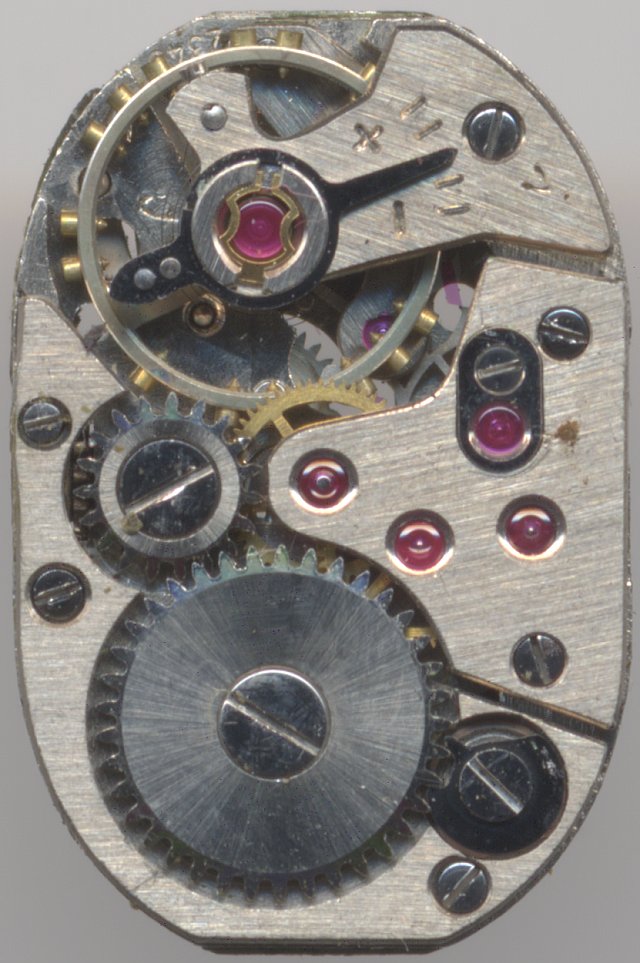

ETA 2345


The ETA 2345 is probably the further development of the ETA 2340 Incabloc shock protection and two additional jewels, one for the minute wheel and one as cap jewel for the anchor wheel.

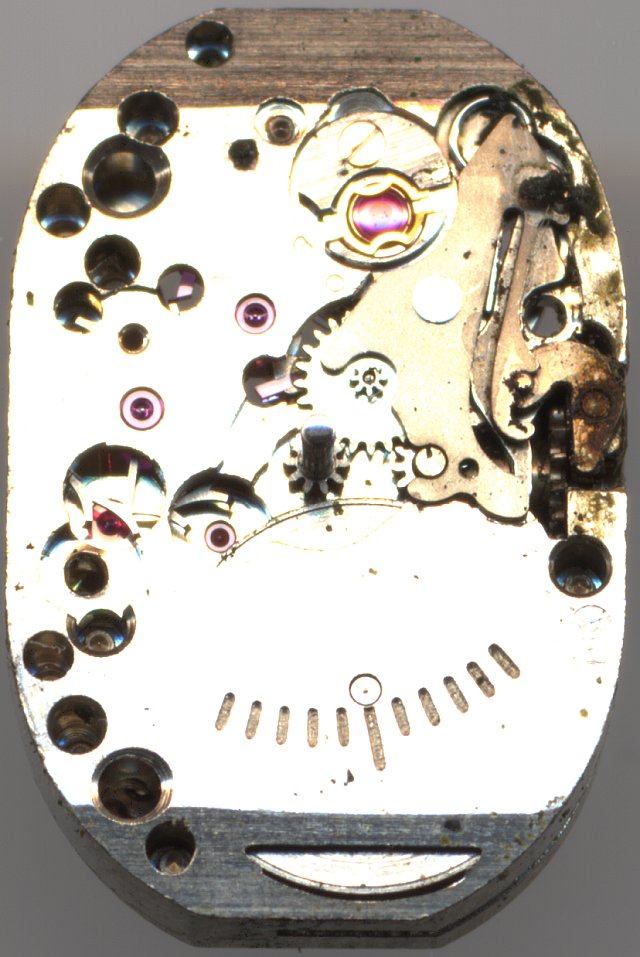

ETA 2345: ETA 2345 dial side

ETA 2345 dial side

Technical data

Size:5 3/4 x 8 3/4'''
lift angle:52.23°
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
References: Flume: 1957 46
Mentioning in literature (years): 1963 - 1964

Usage gallery

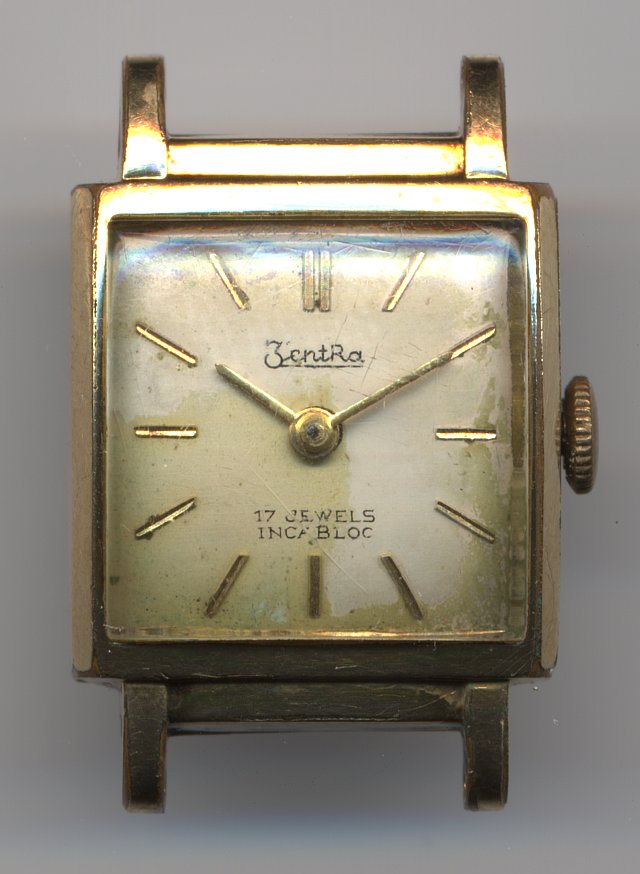

ETA 2345: Zentra ladies' watch

Zentra ladies' watch
