ETA 2512
Description
The ETA 2512, with a diameter of 7 3/4 lignes, is already among the larger windup movements, especially those that could only display hours and minutes. Dugena gave it the internal designation Dugena 3301.

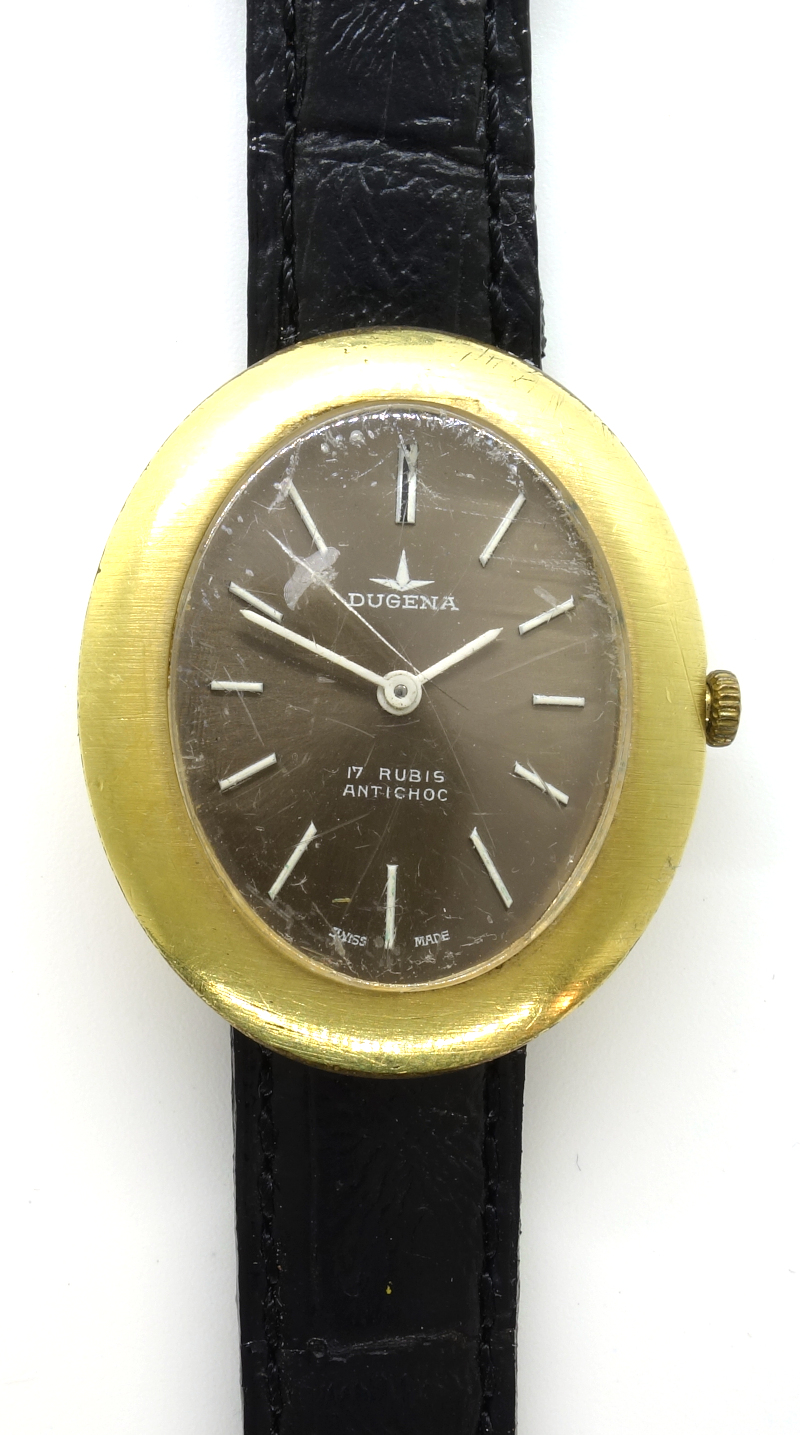

Version "Dugena 3303"
It terminates, together with its successor, the ETA 2512-1, which was even manufactured until 1983, the series of flat two-hand windup movements.
During its production run, it was of course available in different versions, a few of which are listed in the archive:

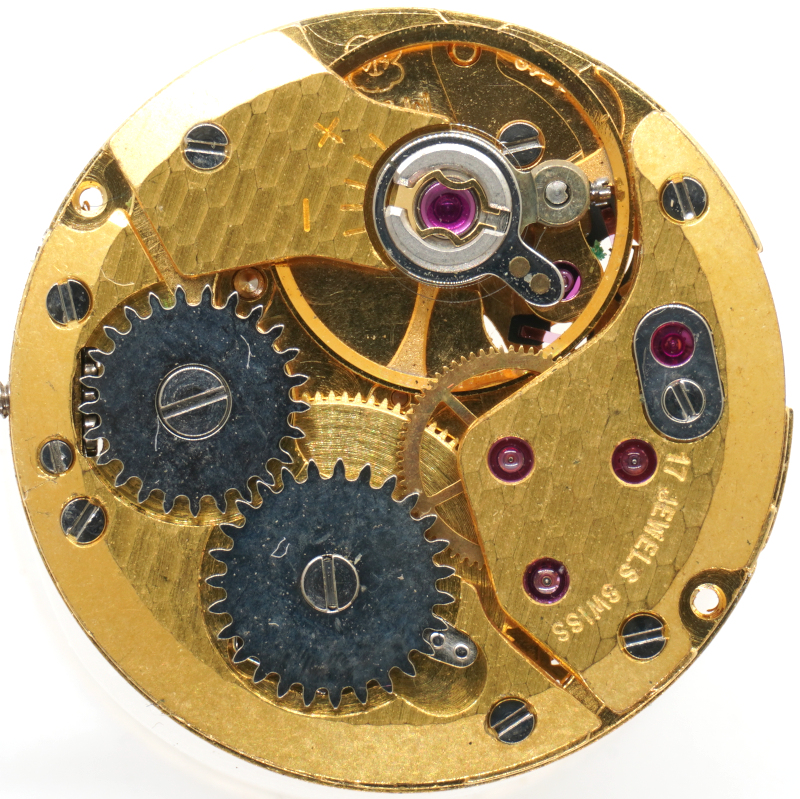

golden toned version with Glucydur balance wheel and hammered finish

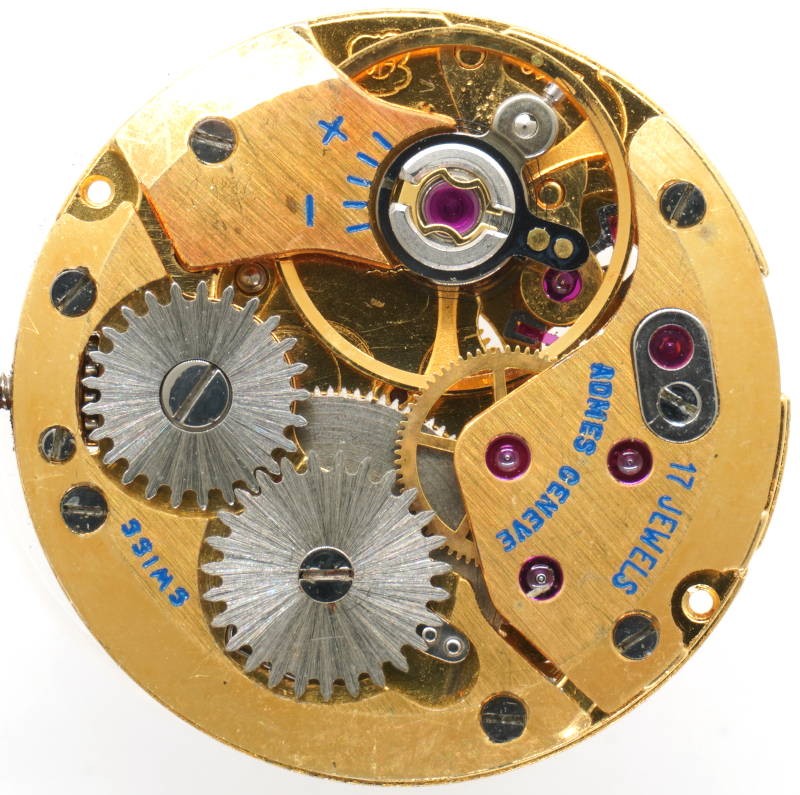

brushed, gold-toned finish

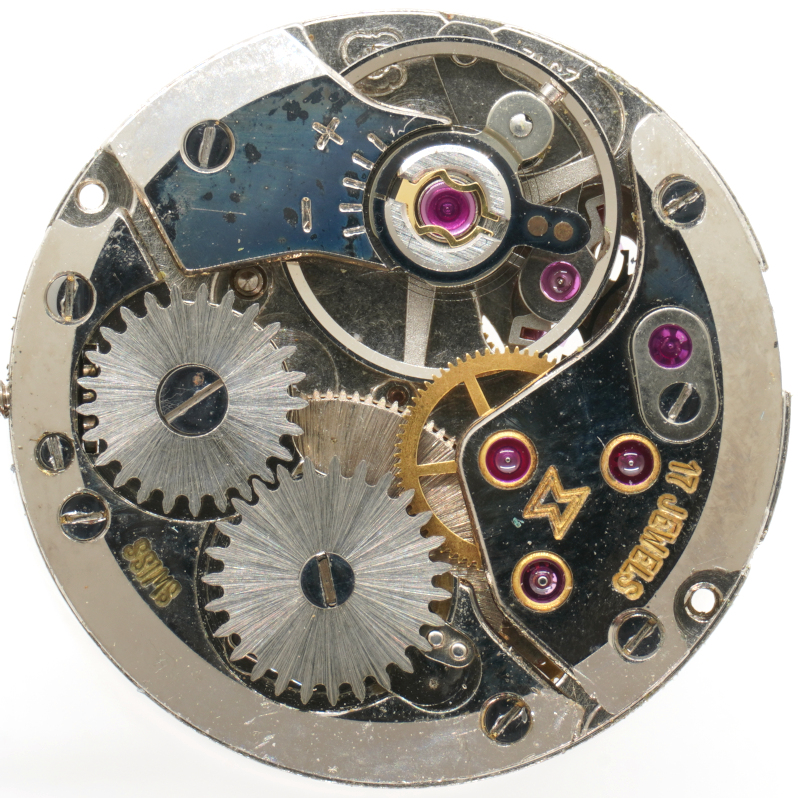

steel polished execution with monometallic balance wheel
They all have very good execution in common, but because of their flat design they are very cumbersome to assemble.

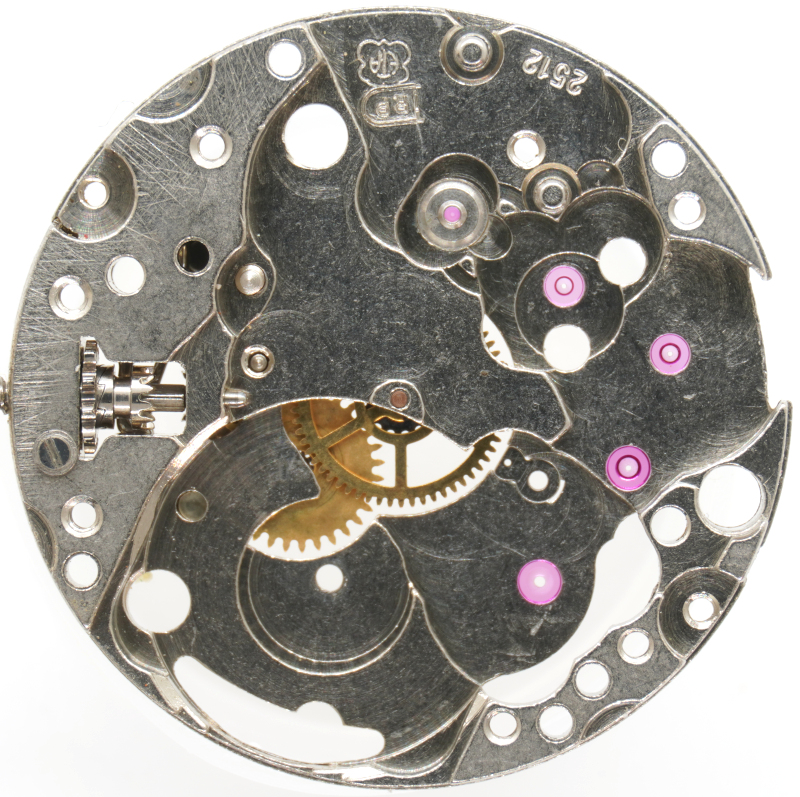

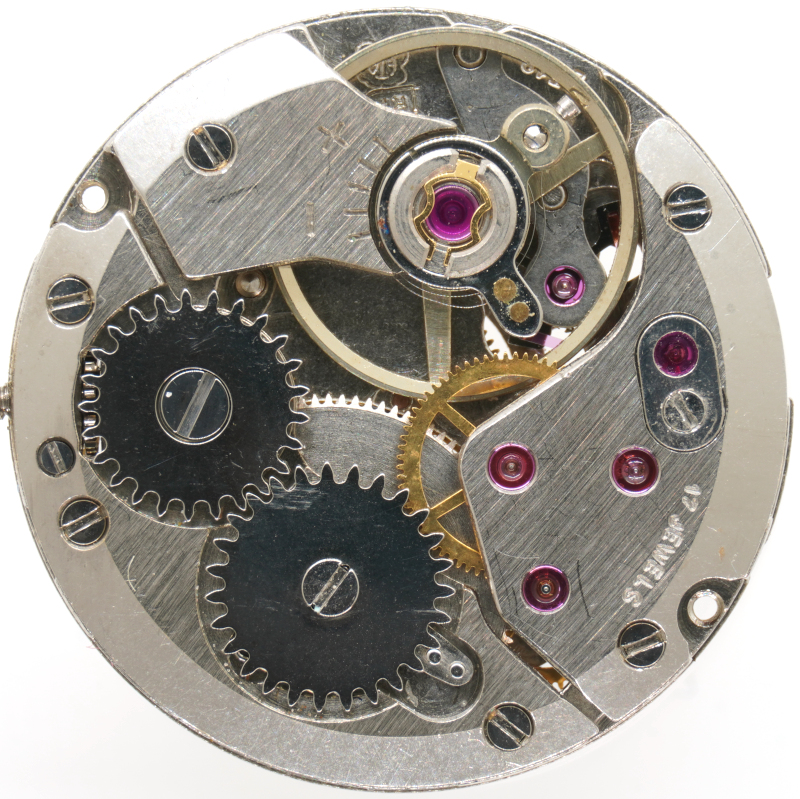

base plate
The gear train design is again the same modern design with a missing central minute wheel and drive of the dial-side hand mechanism via the third wheel pinion.
The very large mainspring barrel, which extends practically to the center of the movement, drives the second wheel, followed by the third wheel and steel escape wheel.
A Swiss pallet lever is used as escapement.

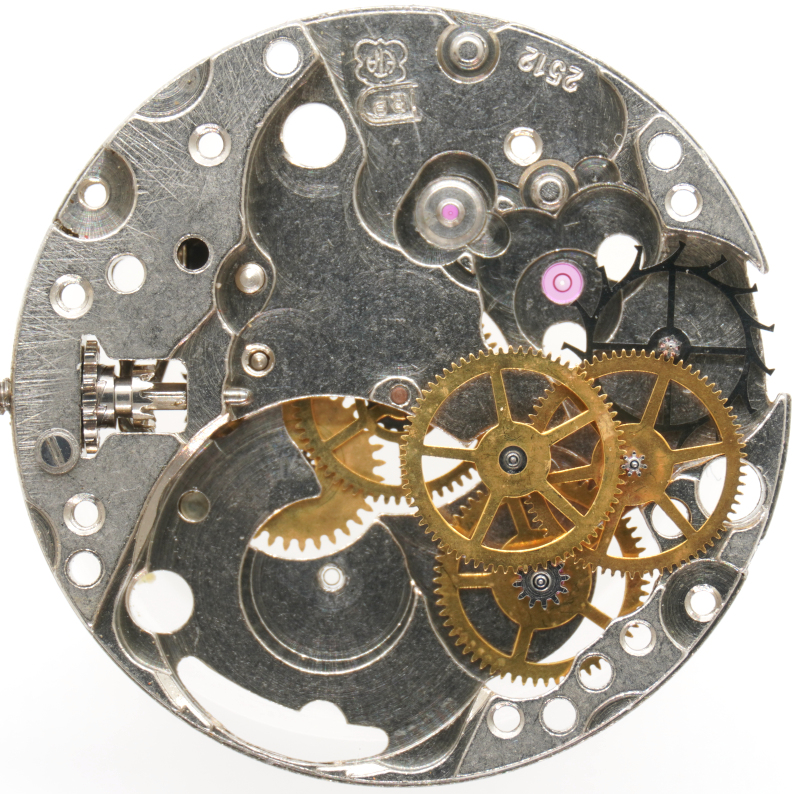

gear train
The screwless balance wheel, either Glucydur or monometallic, is beared in a pair of Incabloc shock protections. It already beats at 21,600 A/h. Its sister movement, the ETA 2510, in contrast, still operates at a slower 18,000 A/h.
The adjustment is made directly on the hairspring key; the hairspring stud is movably attached, so that the beat error can be minimized.

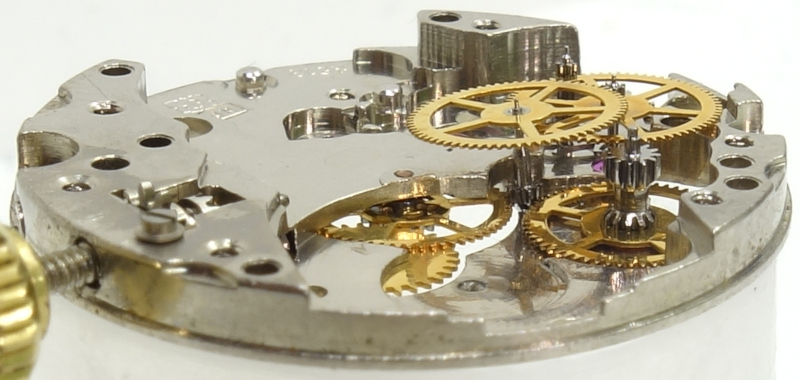

side view of the gear train

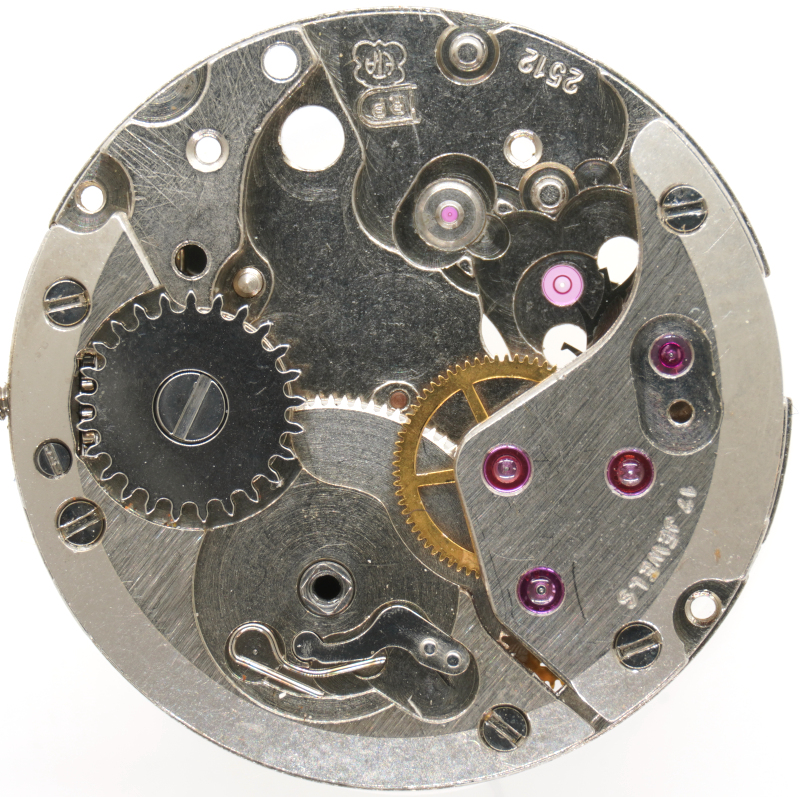

As with the other related movements, the ratchet mechanism in the ETA 2512 is also located under the ratchet wheel.
ratchet
The hand mechanism is driven on the dial side by the third wheel pinion, which acts on the minute wheel. On this, equipped with a slip clutch, is the cannon pinion mounted, into which the intermediate wheel engages, which in turn rotates the hour wheel.

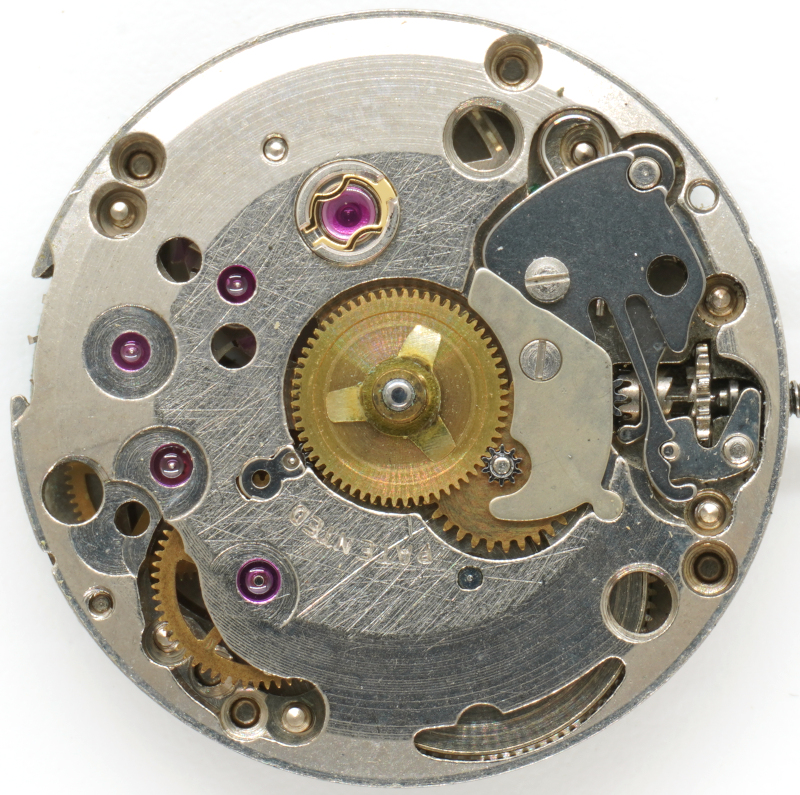

ETA 2512: Dial side
As already shown on the movement side, different colored versions can also be admired on the dial side:

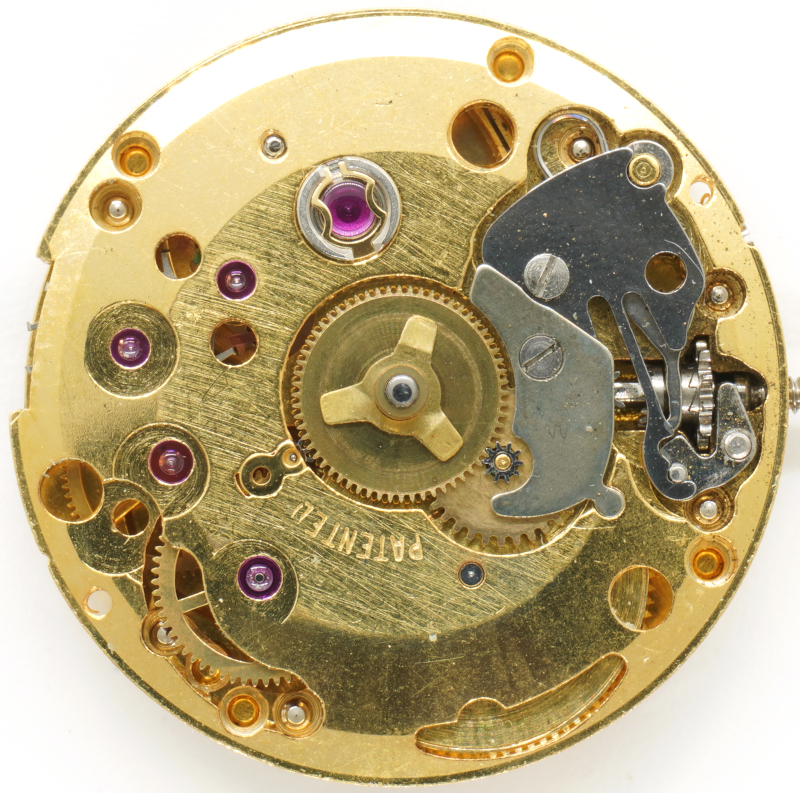

dial side, golden-toned version

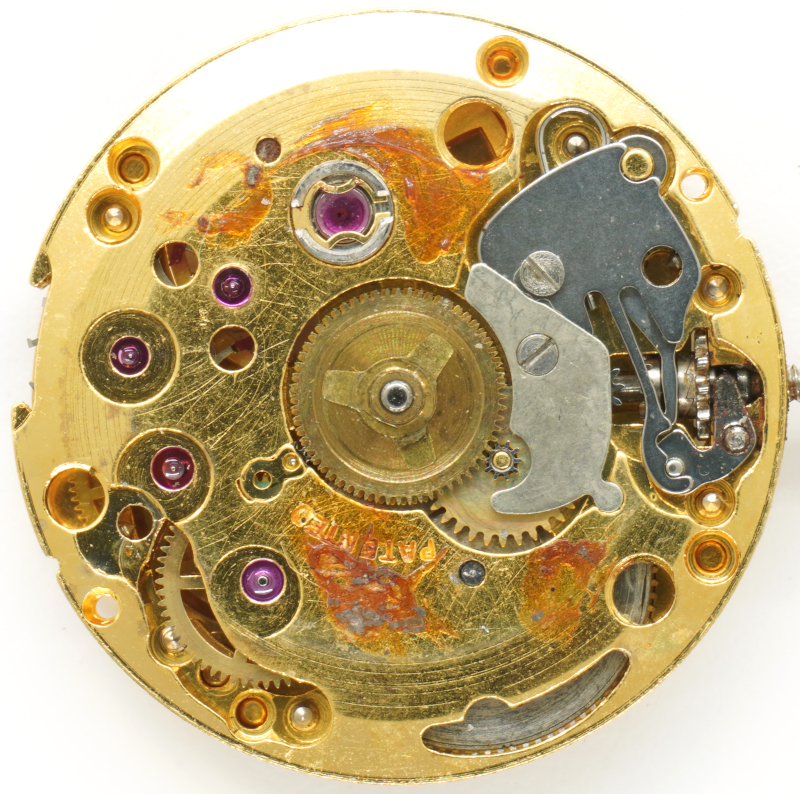

more sharply beveled version
In the lab
Timegrapher result
Here you can see the positive effects of the larger diameter, compared to smaller movements, especially, when it is a "slaughter" movement.| horizontal positions | |||
|---|---|---|---|
| dial up | +6 s/d | 284° | 0.0ms |
| dial down | -3 s/d | 273° | 0.1ms |
| vertical positions | |||
| crown right (12 up) | -9 s/d | 234° | 0.3ms |
| crown up (3 up) | -13 s/d | 236° | 0.0ms |
| crown left (6 up) | -18 s/d | 237° | 0.0ms |
| crown down (9 up) | -2 s/d | 248° | 0.3ms |
Technical data
| Manufacturer: | ETA |
| Caliber: | 2512 |
| Caliber base: | ETA 2510 |
| Size: | 7 3/4''' (measured: 17,2mm) |
| Height: | 2,90mm |
| A/h: | 21600 |
| lift angle: | 52° |
| Escapement: | Pallet lever |
| Balance types: | Glucydur anular balance (three legs) monometallic anular balance (three legs) |
| Shock protection(s): | Incabloc |
| Balance bearing / direction hairspring: | Clockwise |
| Moveable stud: | yes |
| Adjust mechanism: | Hairspring key |
| Construction: |
|
| Construction type: | solid construction |
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 2 holes |
| Attachment of setting lever: | screwed |
| Production years: | 1959 - 1976 |
| References: | Flume: K2 2 |
| Mentioning in literature (years): | 1964 - 1971 |
| Inventory number: | 25014 |
Usage gallery

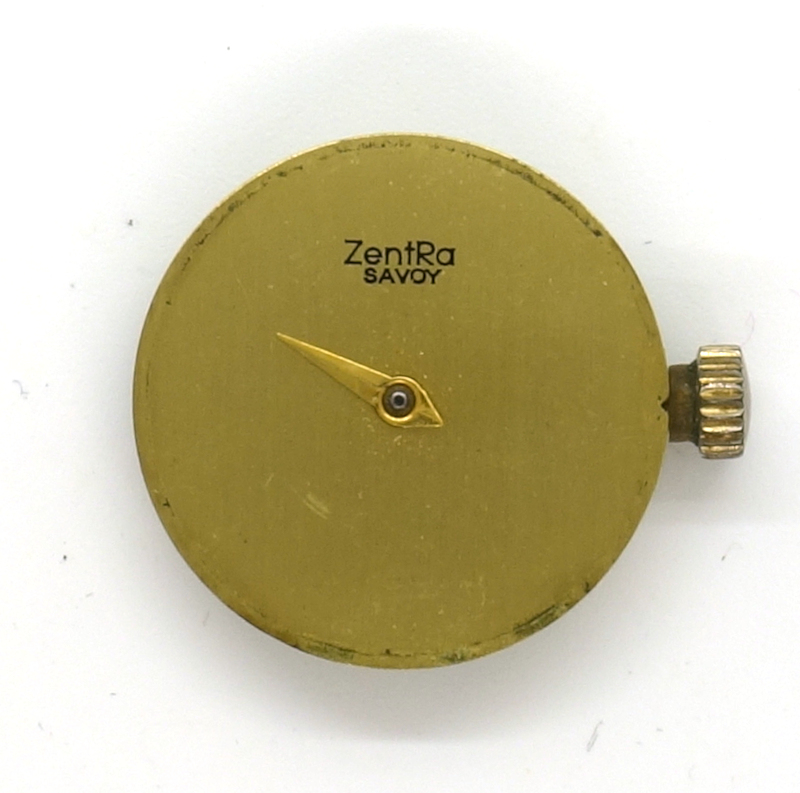

ZentRa Savoy ladies' watch (case missing)

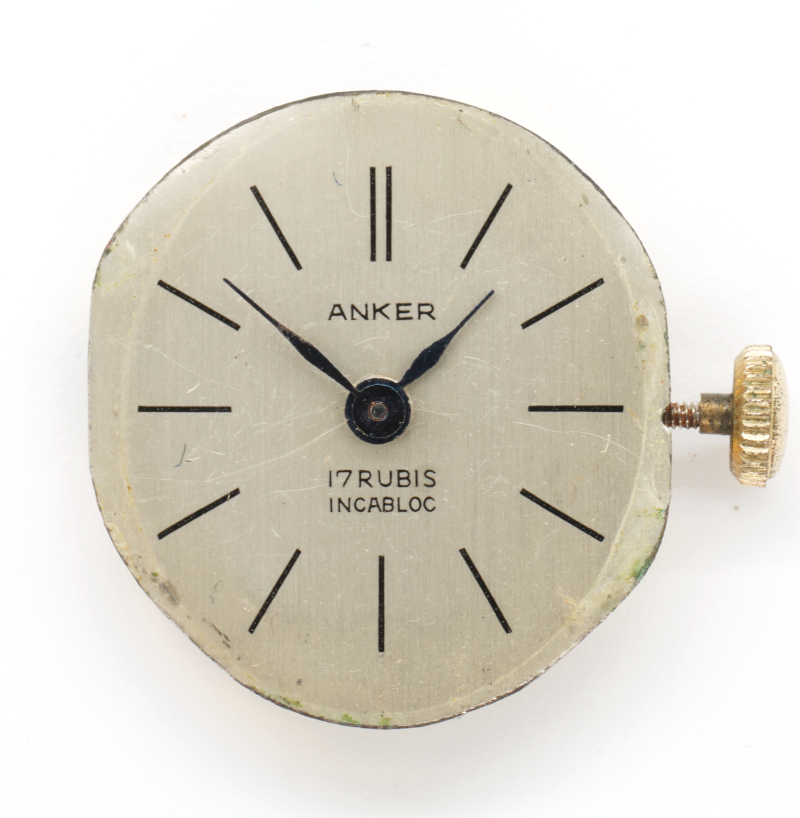

Anker ladies' watch (case missing)

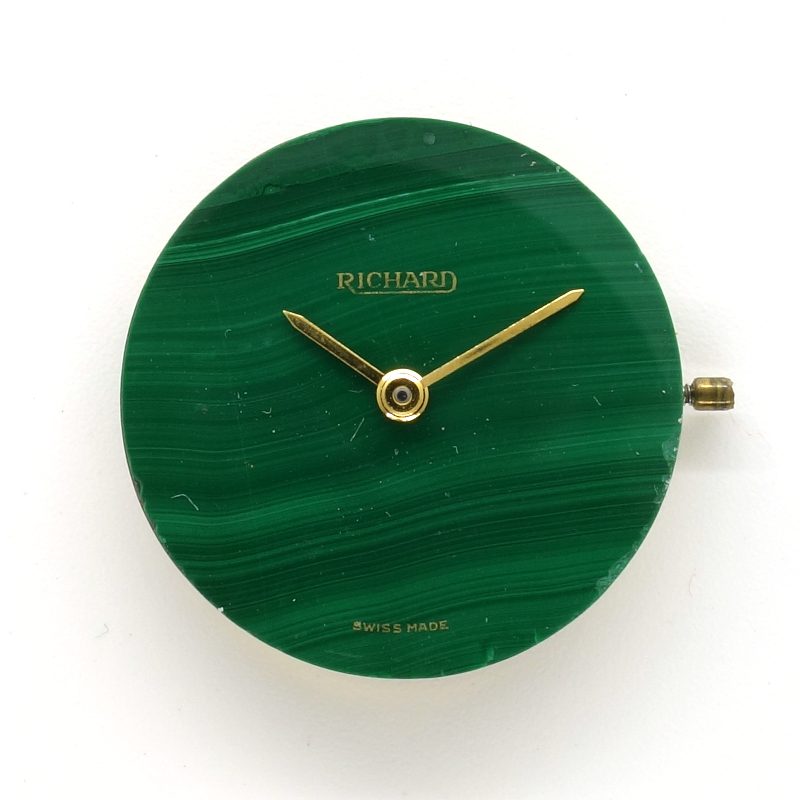

Richard ladies' watch (case missing)

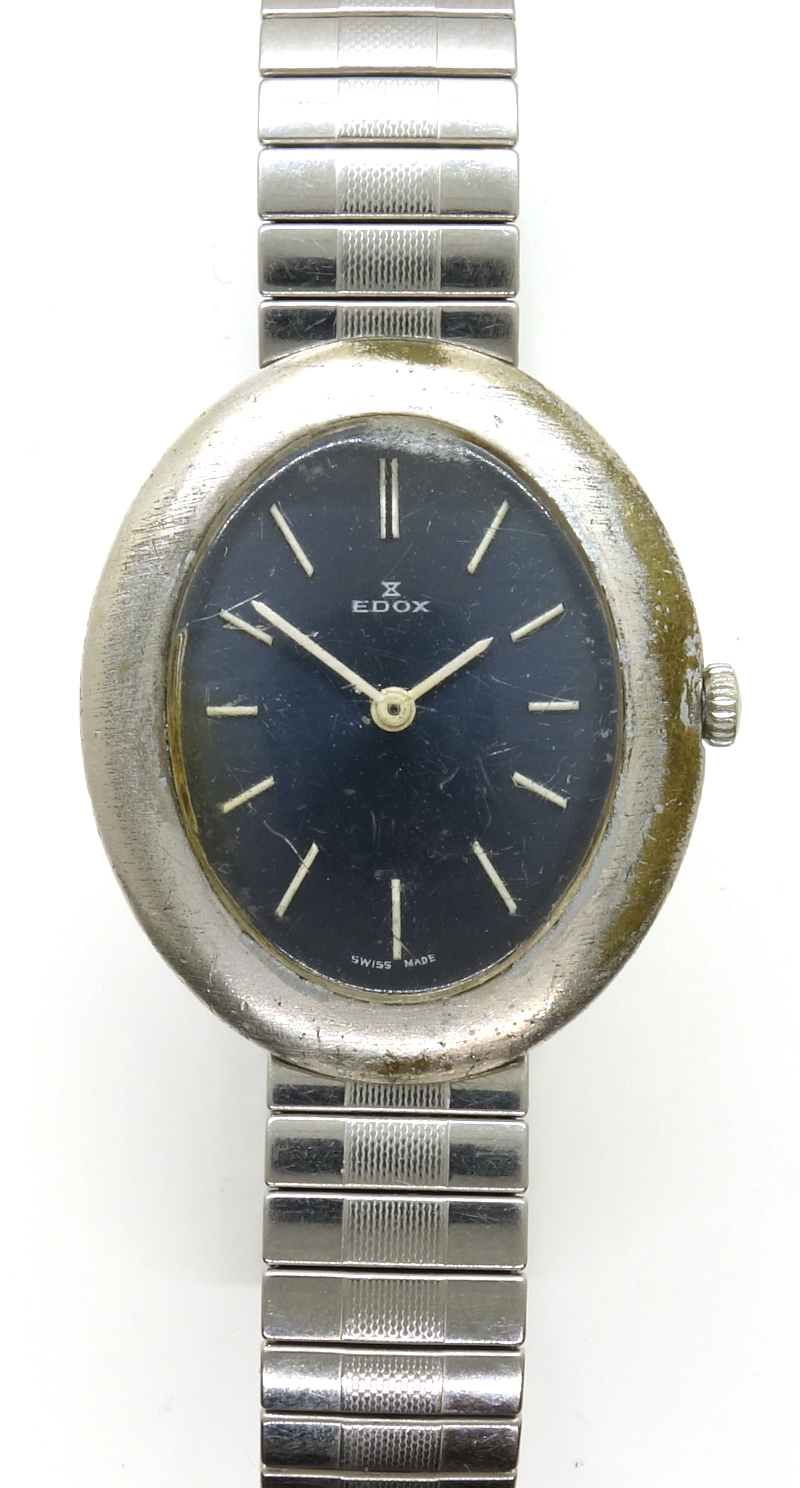

Edox ladies' watch

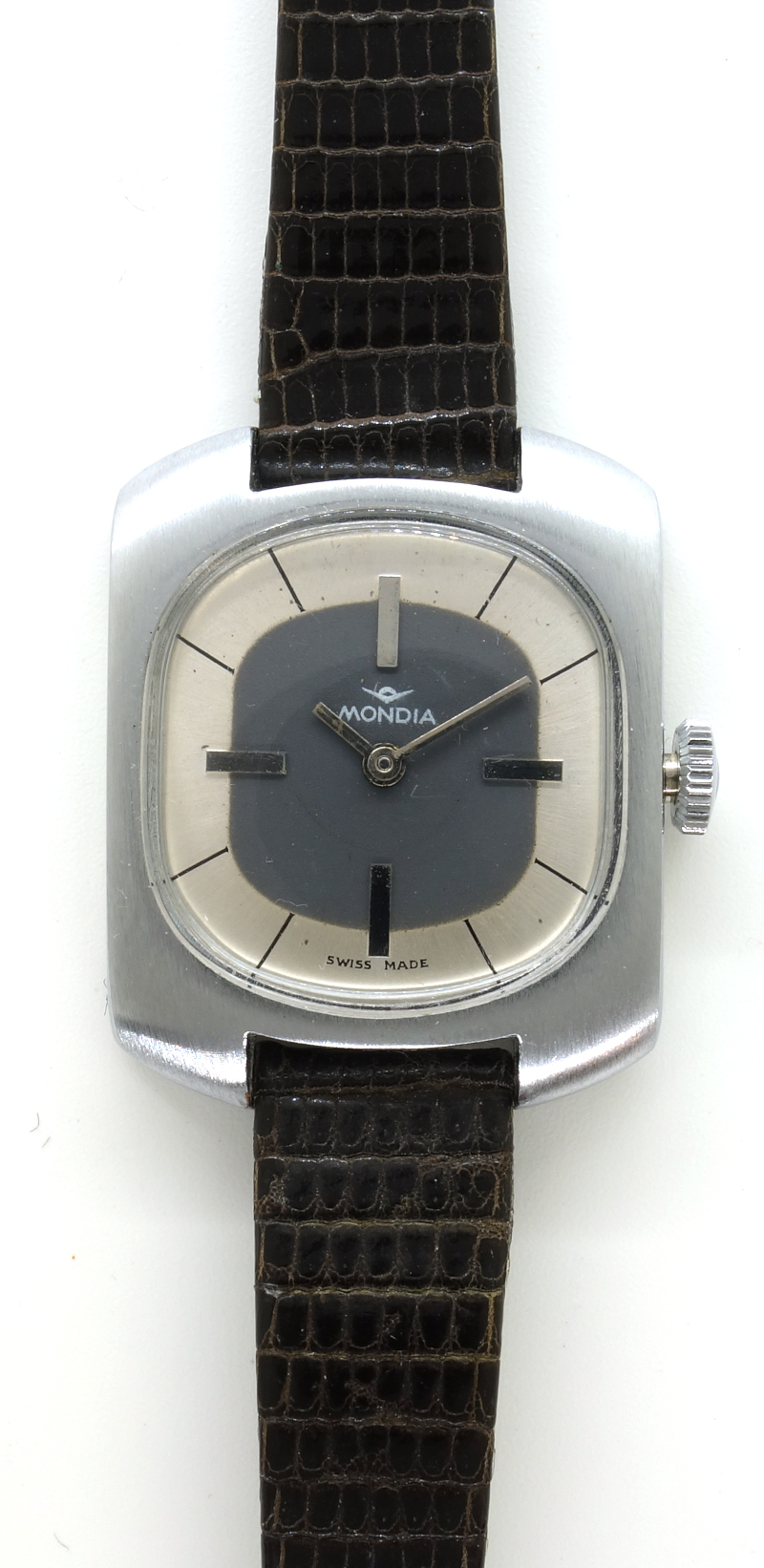

Mondia ladies' watch
Dugena ladies' watch

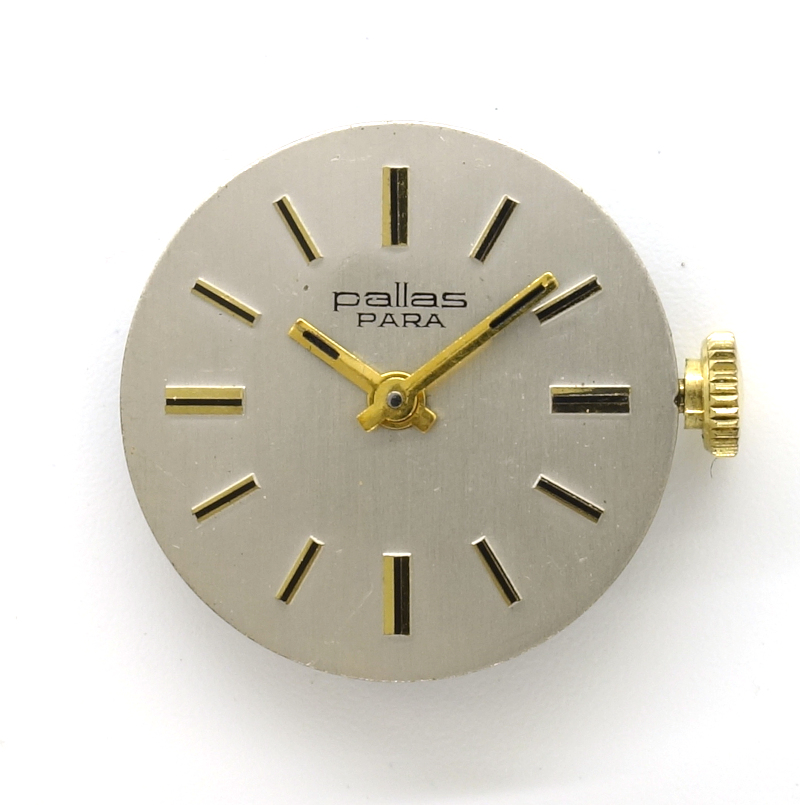

Pallas Para ladies' watch (case missing)
