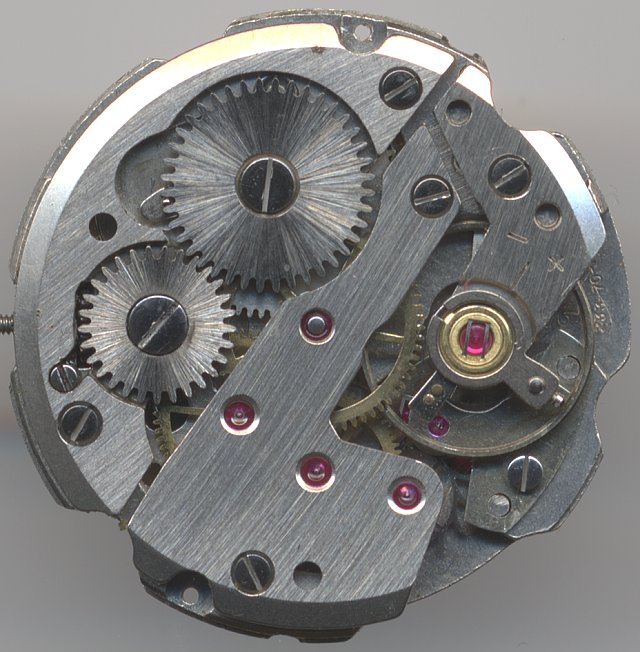

FE 233-70A


FE 233-70A

FE 233-70A

Description

The FE 233-70A is directly related to the caliber 233-60.

The rest of the construction is identical; the 233-70A uses a ring balance, which is beared in two M.T.-Antichoc shock protection systems, beats with only 18000 A/h and regulates a traditional pallet anchor movement. This movement would offer the ability for a decentral second indication at position “6”, but on the specimen shown here, it is not used.

The day and weekday indications change slowly, starting at 11pm with the weekday, but finishing first at 12am with the day. On turning back the time, the weekday can be turned back, too, but the day cannot be decreased. This makes it possible to detach the weekday from the date and allows a semi-fast correction of the date. Correcting the weekday though requires lots of turns of the crown, which is not optimal for any movement.

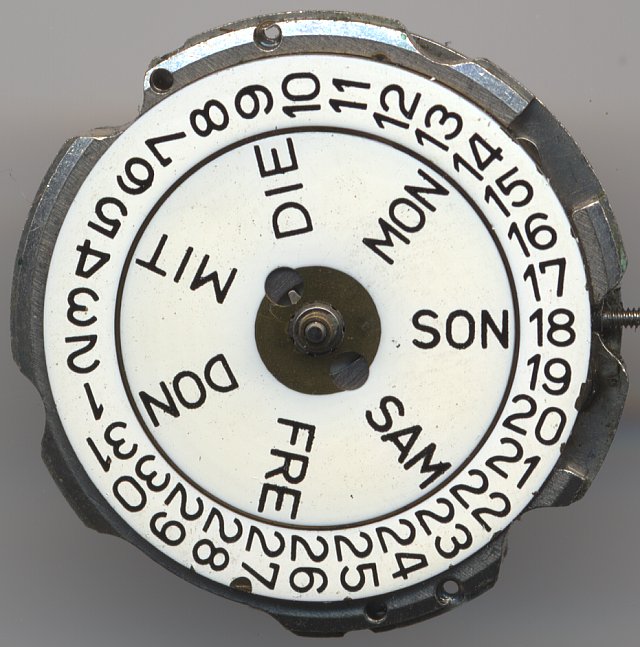

FE 233-70A dial side

FE 233-70A dial side

Technical data

Manufacturer:FE
Caliber:233-70A
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): ?
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Features:QG,JG,RDR
Functions:hour, minute, day, week day
A/h:18000
Size:11 1/2'''
Literature: Flume: K3N1 -

Usage gallery

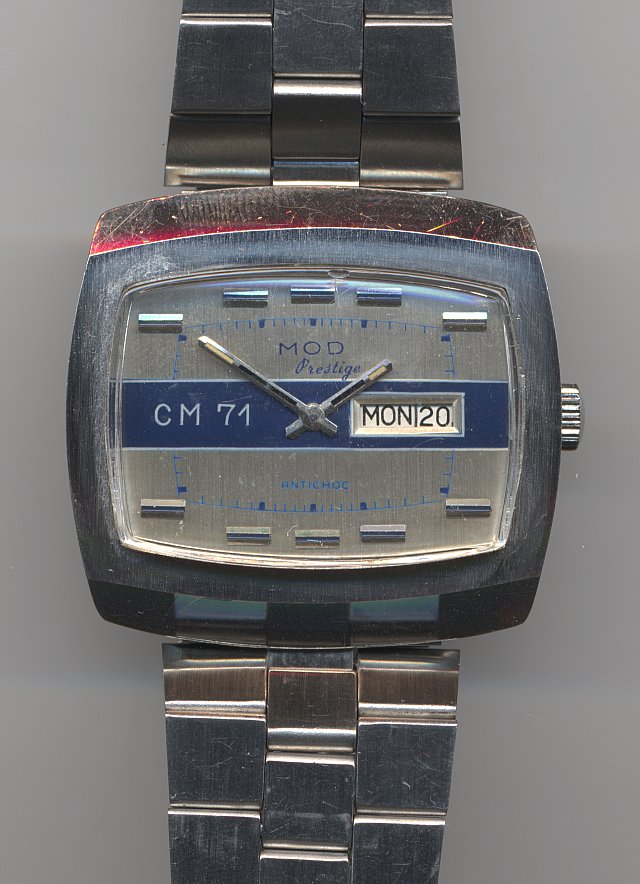

MOD Prestige CM71 gents watch

MOD Prestige CM71 gents watch
