Femga 45
Description
Tonneau-shaped, 5 1/2 ligne movements for ladies' watches were ubiqutous in the 1960s and 1970s. The Femga 45, which is such a kind of movement, however, is a bit rare in Germany, since it was made in France.

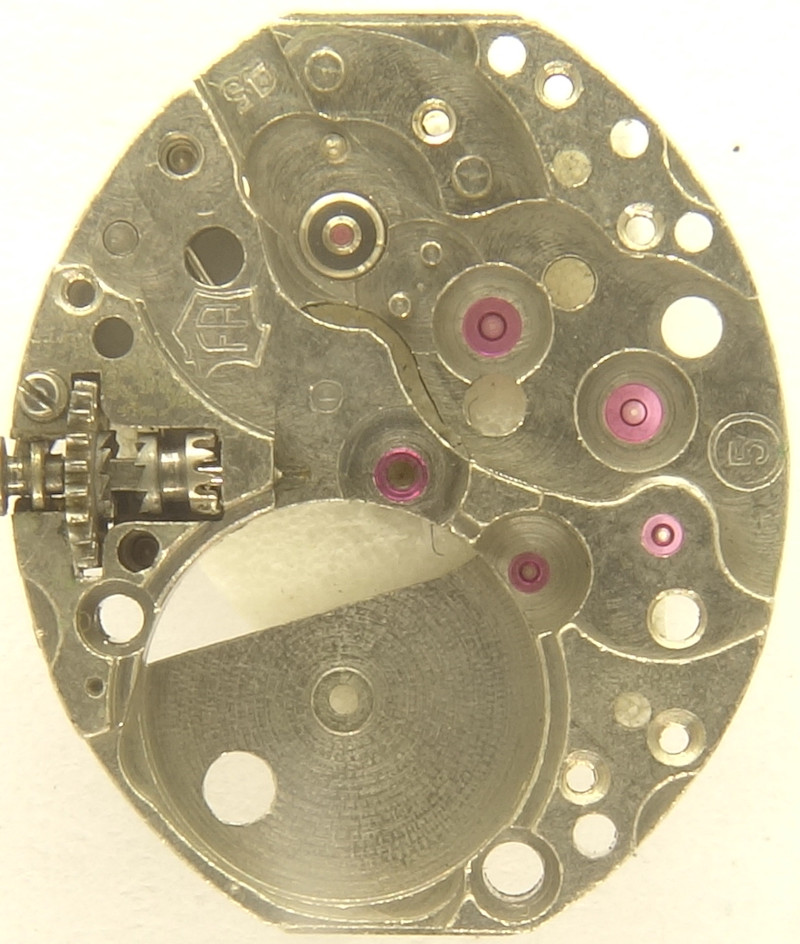

base plate
The quality of this movement is very well, and because of two ruby bearings for the minute wheel, no cap jewels were required to reach the “magical” number of seventeen jewels.

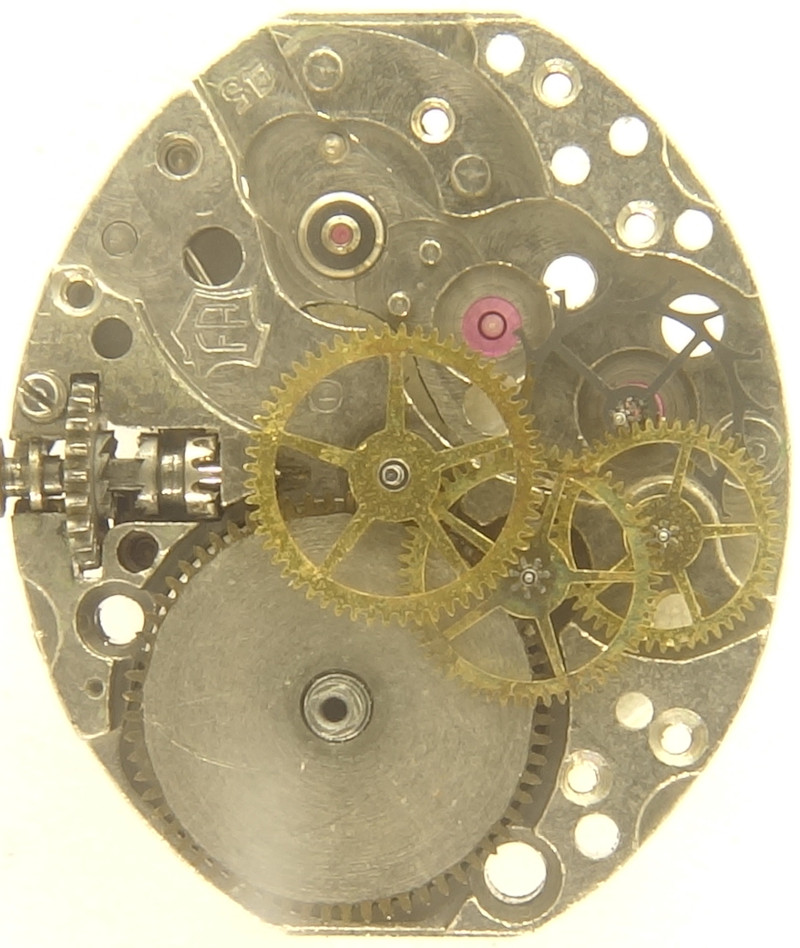

gear train
As common for this kind of movement, a classical, two-storey gear train is used with directly driven center minute wheel, third wheel and seconds wheel above the steel escape wheel.

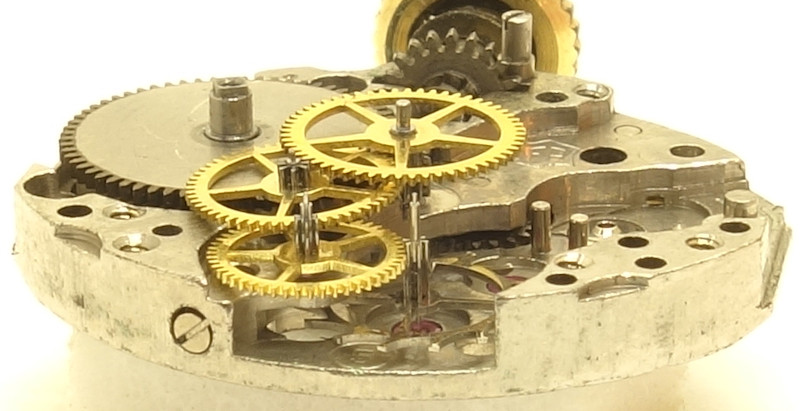

side view of the gear train

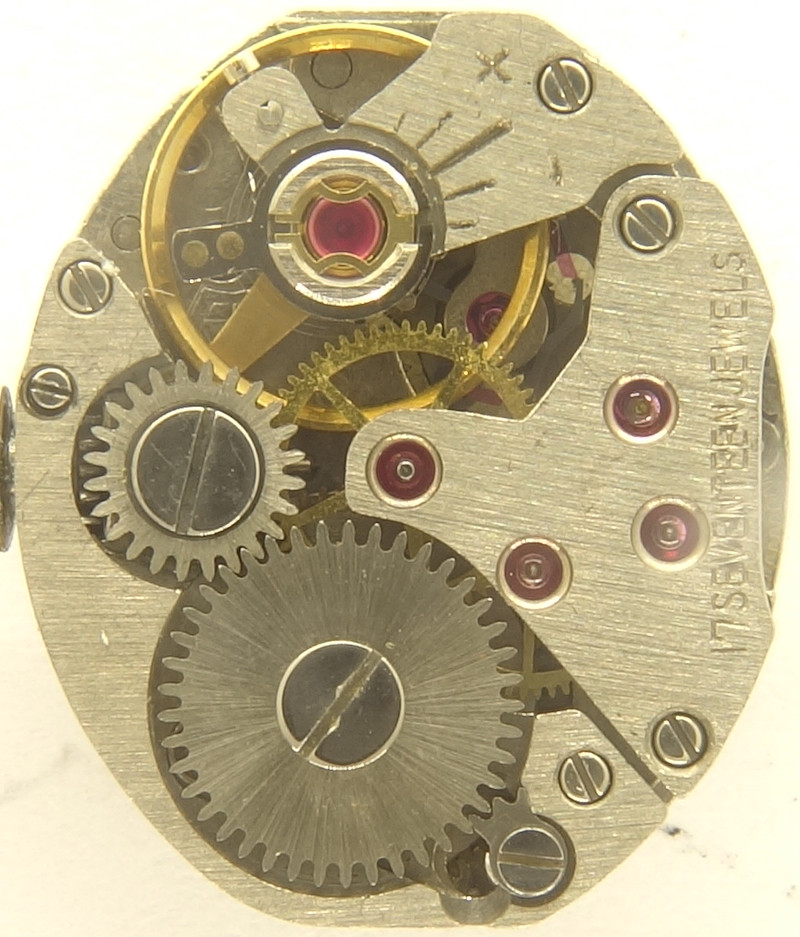

The golden-tones, two leg anular balance beats slowly with 18000 A/h and regulates a swiss pallet lever movement. It is shock-protected by two Incabloc bearings.

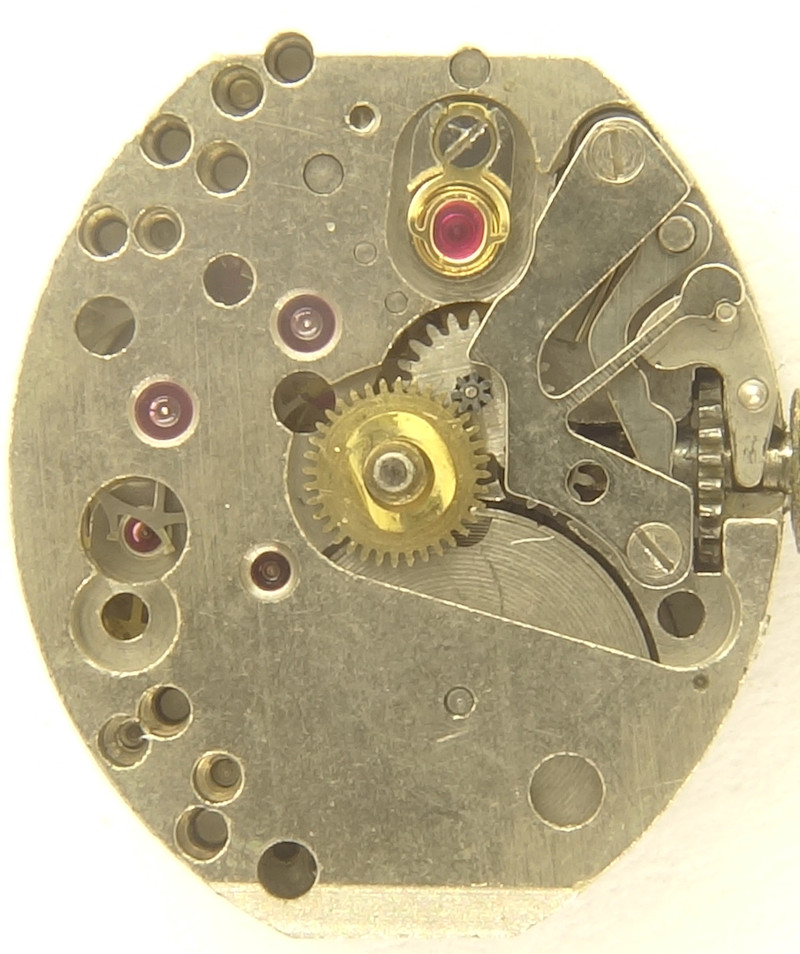

Femga 45: Dial side
Of course, the Femga 45 uses a yoke winding system, which you can see at position 3 o’clock.
Technical data
| Manufacturer: | Femga |
| Caliber: | 45 |
| Size: | 5 1/2''' (measured: 13,0 x 15,1mm) |
| A/h: | 18000 |
| Number of jewels: | 17 |
| Escapement: | Pallet lever |
| Balance types: |
monometallic anular balance (two legs) |
| Shock protection(s): |
Incabloc |
| Balance bearing / direction hairspring: | Counterclockwise |
| Moveable stud: | no |
| Adjust mechanism: | Hairspring key |
| Construction: |
|
| Construction type: | solid construction |
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 3 hole(s) |
| References: |
Flume: K2 1962 25 |
| Mentioning in literature (years): | 1964 |
| Inventory number: | 22030 |
Usage gallery

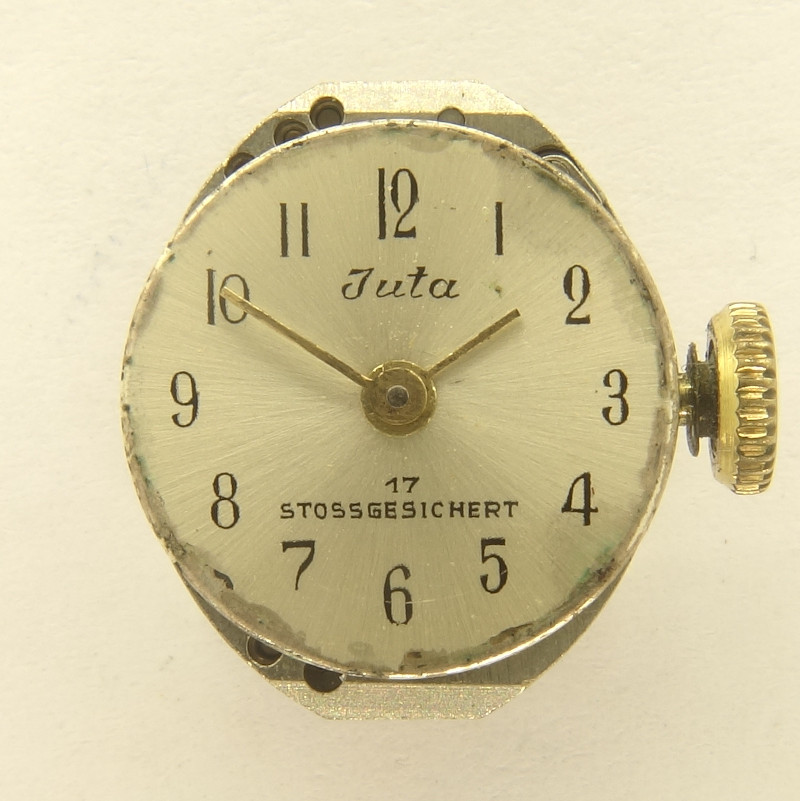

Juta ladies' watch (case missing)
