Femga 45

Femga 45 | 17jewels.info - The Movement Archive

Femga 45


Tonneau-shaped, 5 1/2 ligne movements for ladies' watches were ubiqutous in the 1960s and 1970s. The Femga 45, which is such a kind of movement, however, is a bit rare in Germany, since it was made in France.

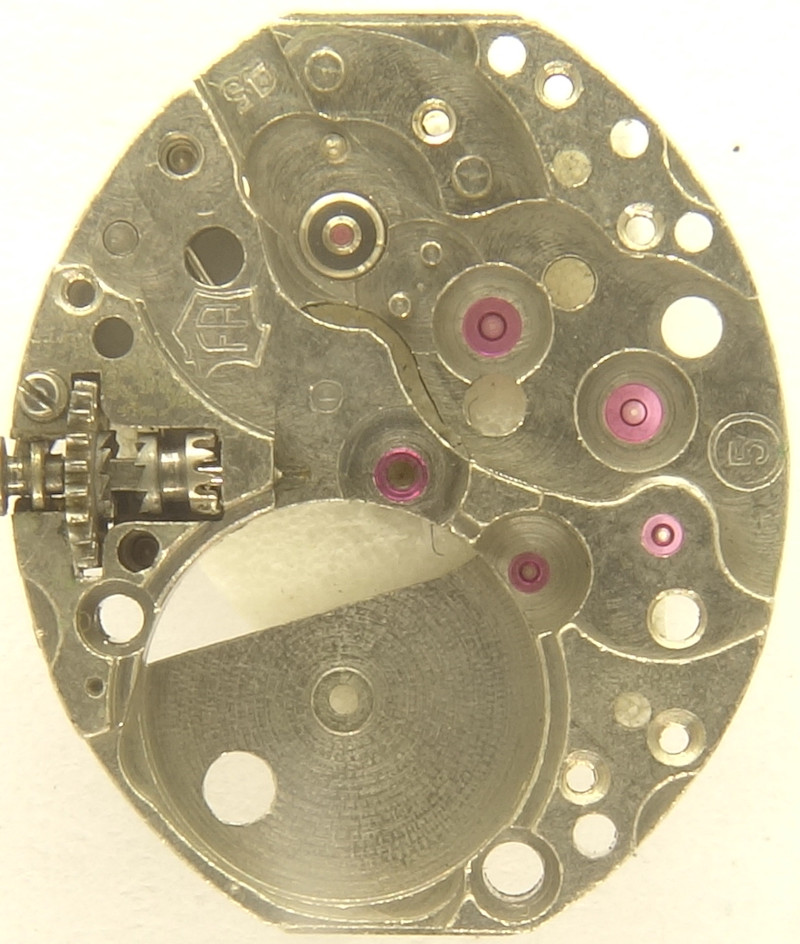

Femga 45: base plate

base plate

The quality of this movement is very well, and because of two ruby bearings for the minute wheel, no cap jewels were required to reach the “magical” number of seventeen jewels.

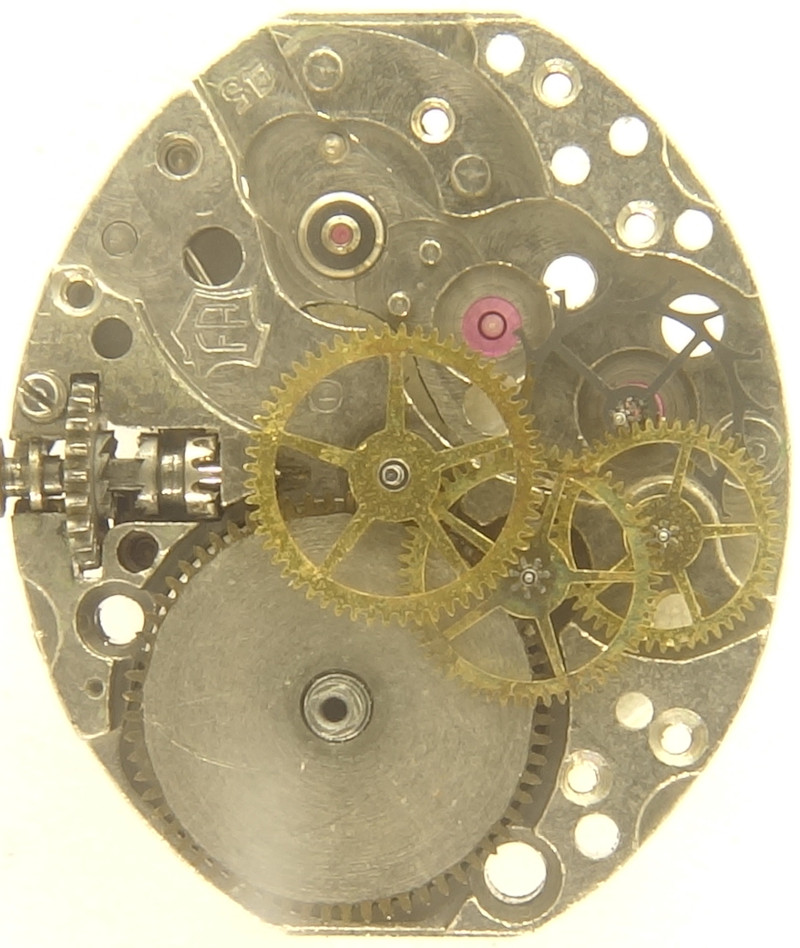

Femga 45: gear train

gear train

As common for this kind of movement, a classical, two-storey gear train is used with directly driven center minute wheel, third wheel and seconds wheel above the steel escape wheel.

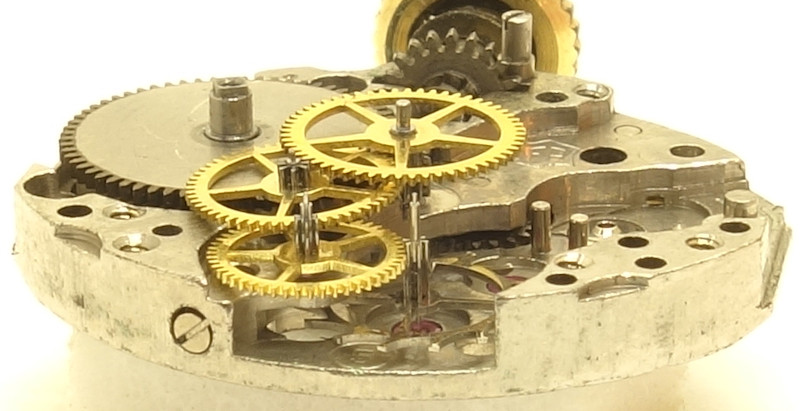

Femga 45: side view of the gear train

side view of the gear train

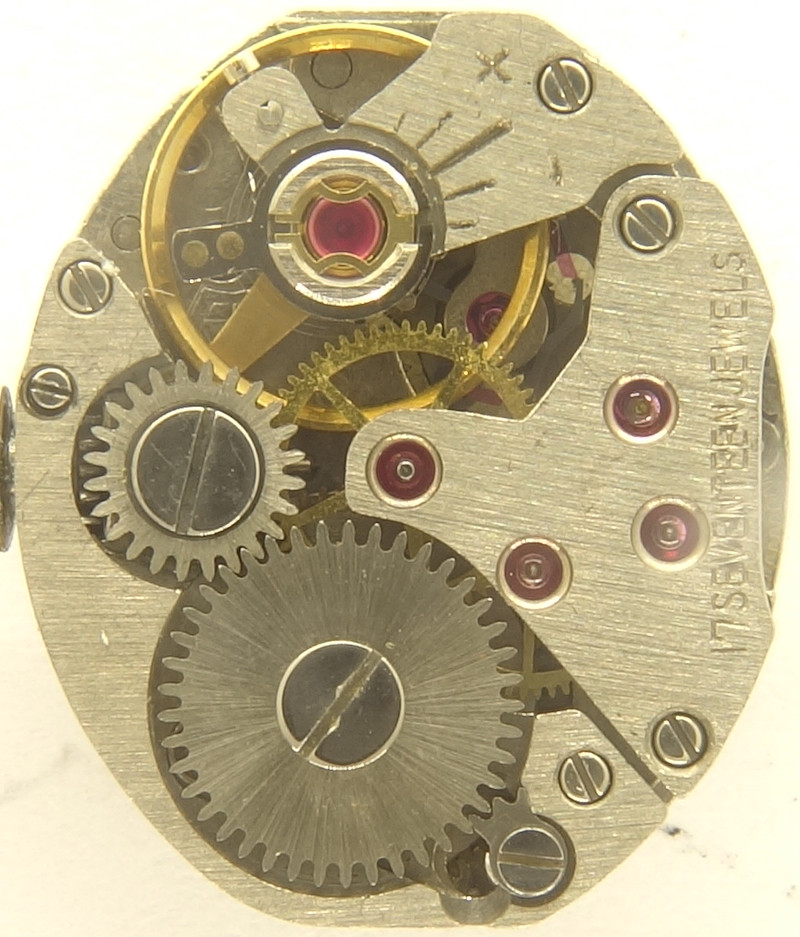

The golden-tones, two leg anular balance beats slowly with 18000 A/h and regulates a swiss pallet lever movement. It is shock-protected by two Incabloc bearings.

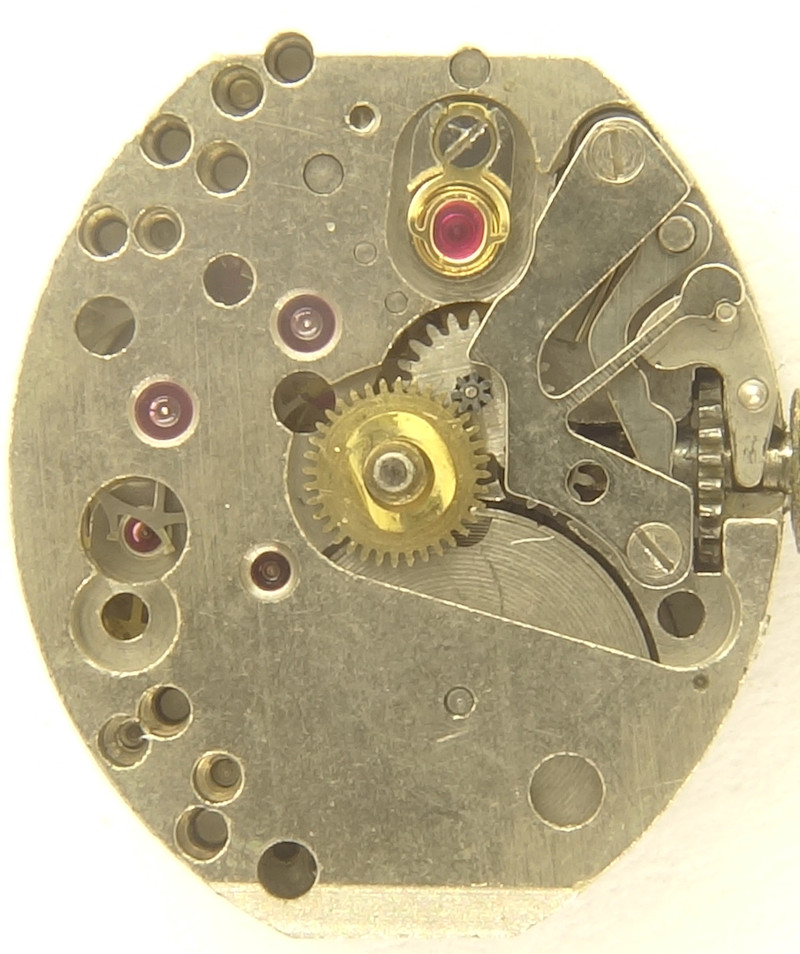

Femga 45: Femga 45: Dial side

Femga 45: Dial side

Of course, the Femga 45 uses a yoke winding system, which you can see at position 3 o’clock.

Technical data

Size:5 1/2''' (measured: 13,0 x 15,1mm)
Number of jewels:17
Escapement:Pallet lever
Balance types: monometallic anular balance (two legs)
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
References: Flume: K2 1962 25
Mentioning in literature (years): 1964
Inventory number:22030

Usage gallery

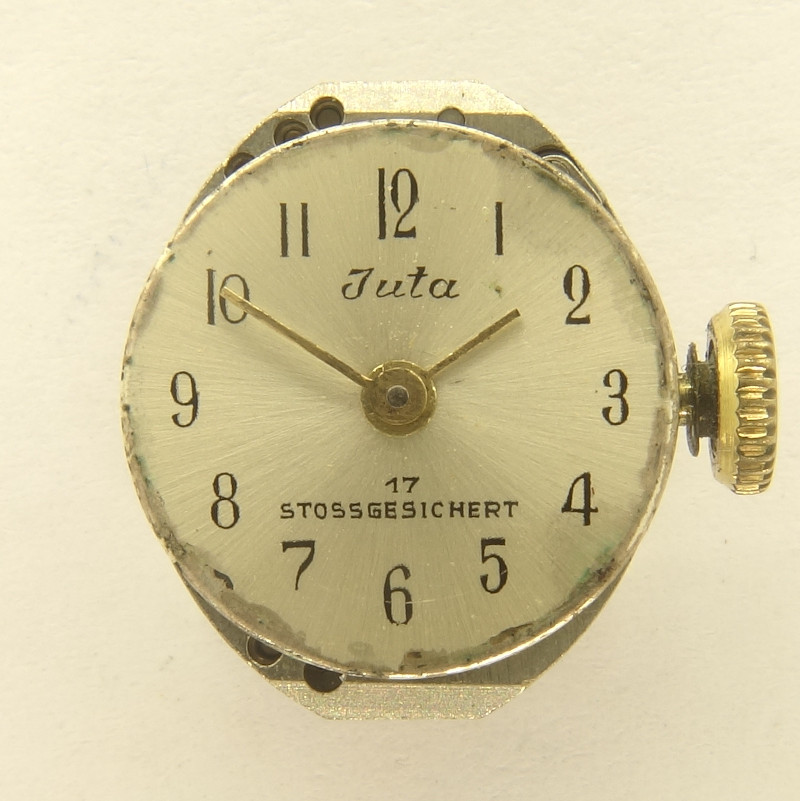

Femga 45: Juta ladies' watch  (case missing)

Juta ladies' watch (case missing)

This movement is a kind donation from Günther from Munich to the movement archive. Thank you very much for your kind support!
