Description

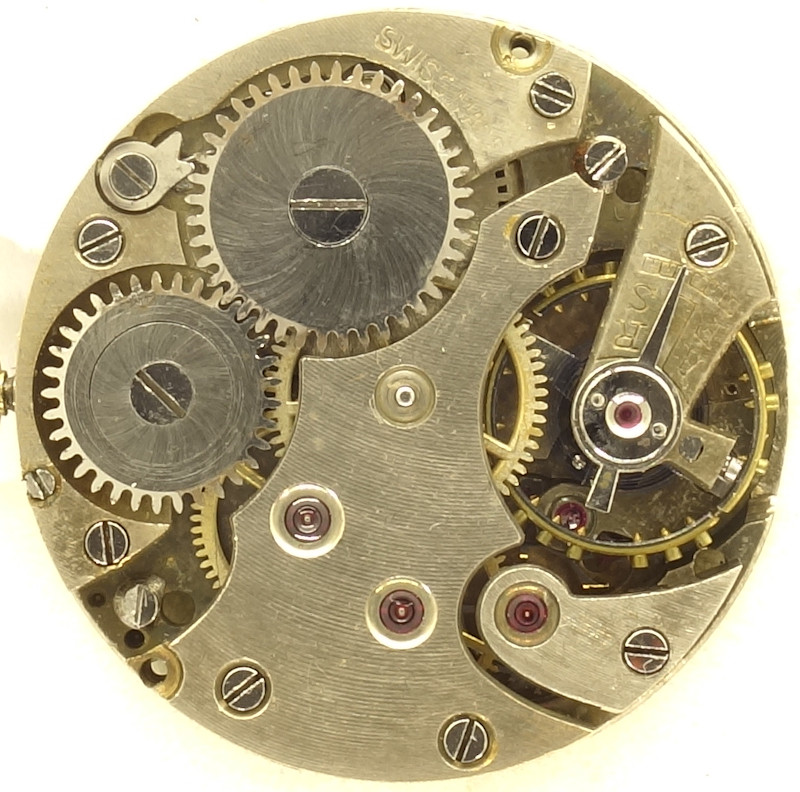

The FHF 1144 is an early windup movement and has got a diameter of 9 3/4 lignes.

With 15 jewels and a pallet lever escapement, it belonged to the upper class movements of that time, probably in the 1920s.

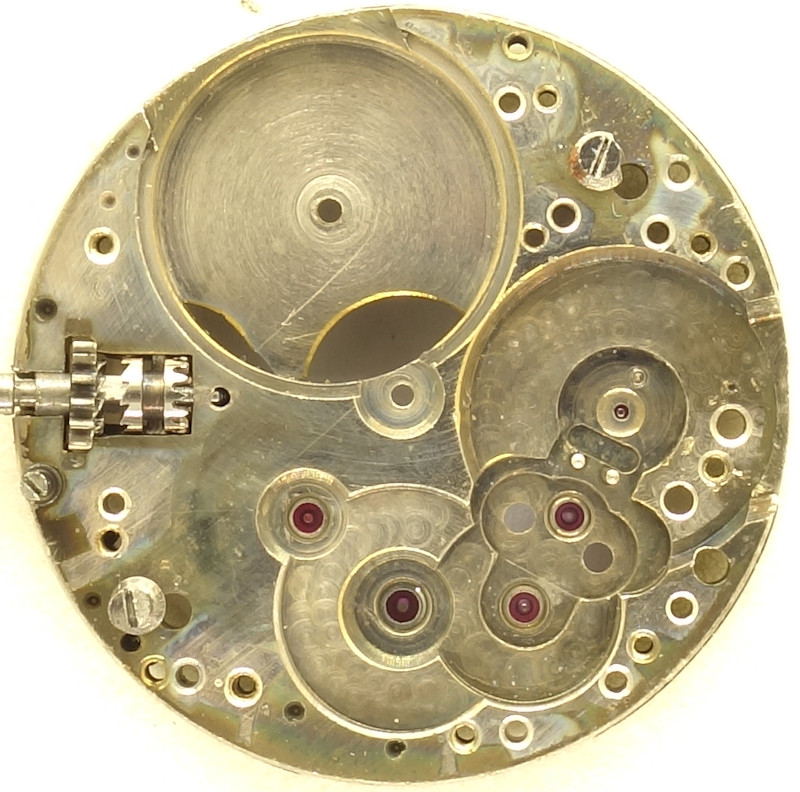

base plate

base plate

We have the classical gear train here: The mainspring barrel drives the center minute wheel, followed by third wheel, seconds wheel (at 6 o’clock to carry the decentral seconds indication hand) and the filigree steel escape wheel.

The latter one is, pretty old-fashioned, beared under its own cock, while seconds-, third and minute wheel are beared under a moderly shaped bridge.

Because of this, the chronologically classification is pretty hard, the best guess are the 1920s.

gear train

gear train

The slotted, two-leg Guillaume screw balance is not yet shock protected. On the balance cock, the beating frequency can be adjusted with a fine regulator arm.

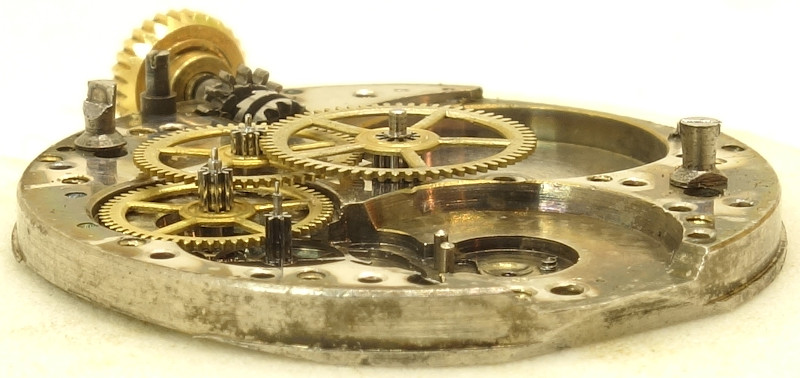

side view of the gear train

side view of the gear train

Because of its very characteristically shaped setting lever spring with its u-shaped cutout and the large balance wheel bearing plate, this movement could finally be identified as an FHF 1144.

Further characteristics are the vertical edge a 9 o’clock, which is known from pocket watch movements, and two flattenings at 6 and 12 o’clock, which were not photographable.

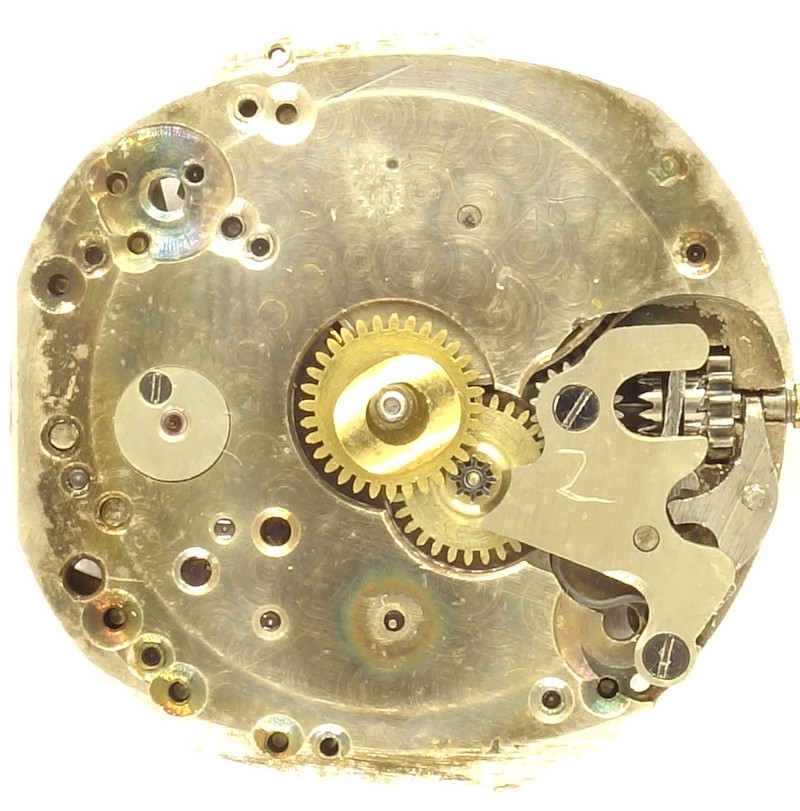

FHF 1144: dial side

FHF 1144: dial side

Technical data

Manufacturer:FHF
Caliber:1144
Size:9 3/4''' (measured: 21,8mm)
A/h:18000
Number of jewels:15
Escapement:Pallet lever
Balance types: Guillaume screw balance (two legs)
Shock protection(s): none
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel
  • seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:3 hole(s)
Features:
  • s (decentral seconds)
Inventory number:20051

Usage gallery

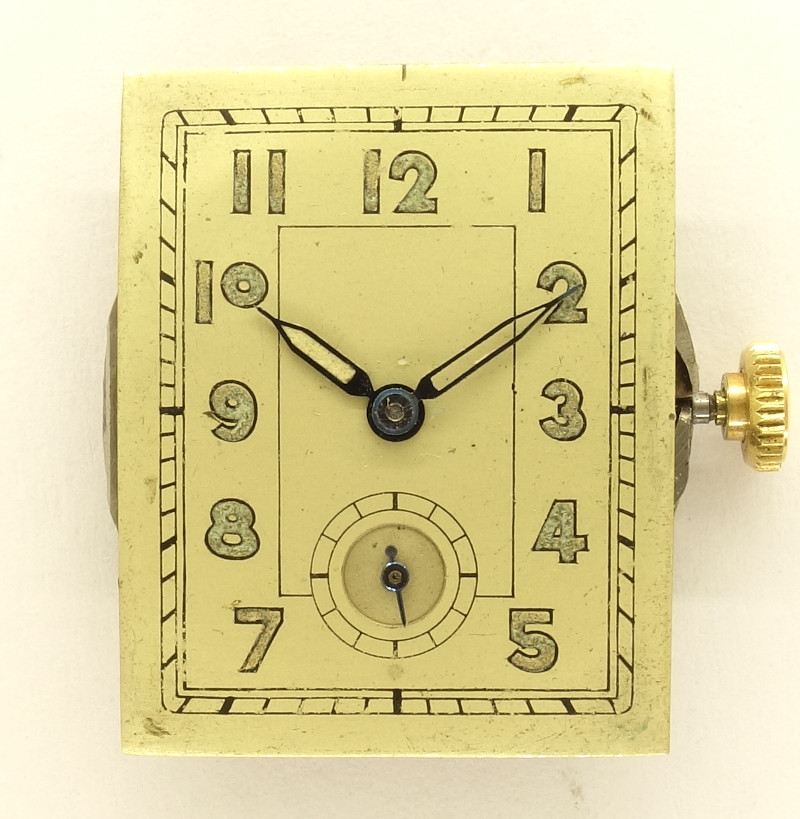

anonymous gents watch  (case missing)

anonymous gents watch (case missing)

This movement is a kind donation from Philipp Porter. Thank you very much for your great support!
