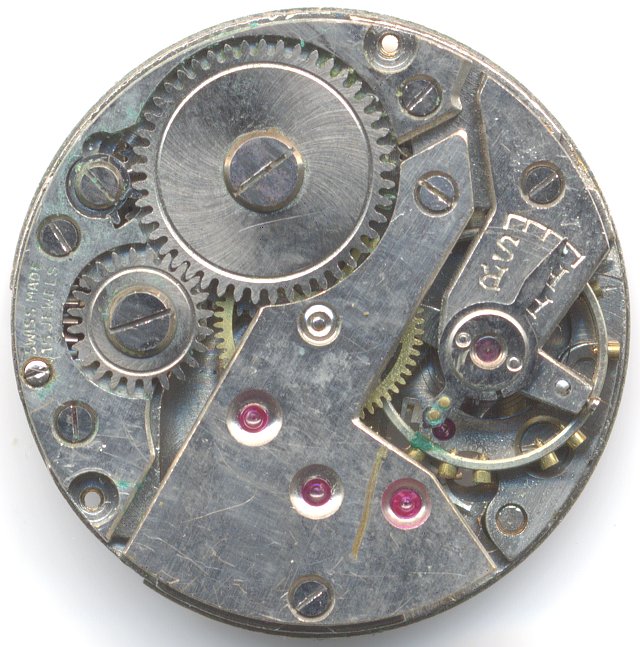

FHF 152
Description
The FHF 152 is a movement of the caliber series FHF 150, which was made between 1938 and 1952 in quantities of over 1.4 million items. For the time being, its execution was already pretty modern with clearly cut bridges, which were available in different shapes.
The base plate of this 10 1/2 ligne movement shows its good quality, all important bearings contain rubies:
base plate (FHF 150)
This movement uses the classical gear train with mainspring barrel, directly driven center minute wheel, third wheel, seconds wheel at 6 o’clock (which can carry the decentral seconds hand on the dial) and finally the escape wheel.
gear train (FHF 150)
The not shock protected screw balance regulates a swiss pallet lever movement. The hairspring is fix connected with the very flat balance wheel cock, and can be adjusted in its effective length with an old-fashioned designes regulator arm.
side view of the gear train (FHF 150)
The identification happens on the dial side only, but with the caliber number, you still don’t know the shape of the bridges, because in all cases, the movement is marked as “FHF 150”.

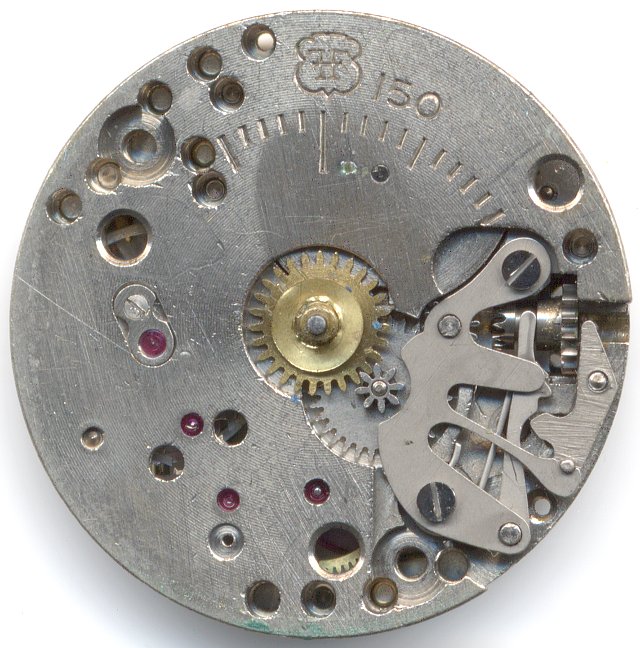

FHF 152: Dial side
Technical data
| Manufacturer: | FHF |
| Caliber: | 152 |
| Caliber base: | FHF 150 |
| Size: | 10 1/2''' (measured: 22,6mm) |
| A/h: | 18000 |
| Number of jewels: | 15 |
| Escapement: | Pallet lever |
| Balance types: | Nickel screw balance (two legs) |
| Shock protection(s): | none |
| Balance bearing / direction hairspring: | Clockwise |
| Moveable stud: | no |
| Adjust mechanism: | Long regulator arm |
| Construction: |
|
| Construction type: | solid construction |
| Winding mechanism: | yoke winding system |
| Setting lever spring: | 4 holes |
| Features: |
|
| Production period: | 1938 - 1952 |
| References: | Feilner: 151 Flume: 1947 33 |
| Inventory number: | 21024 |
Usage gallery

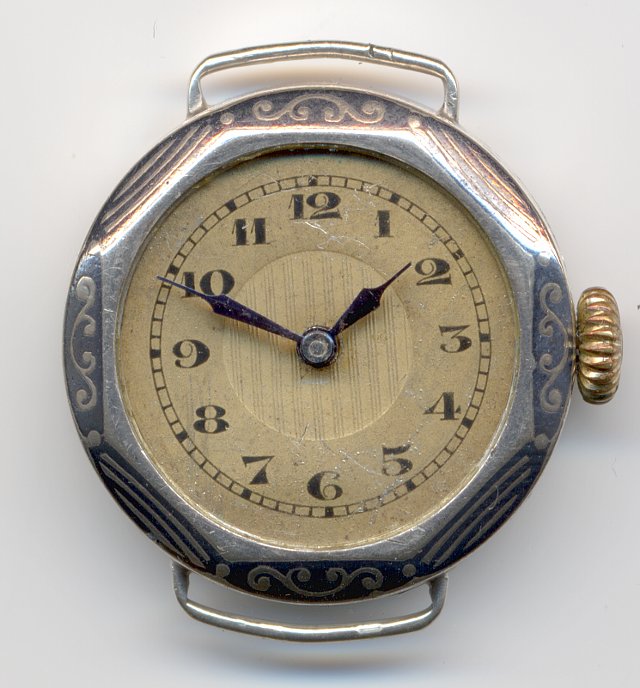

unmarked ladies' or gents watch (probably not with original movement)
