FHF 72

Description

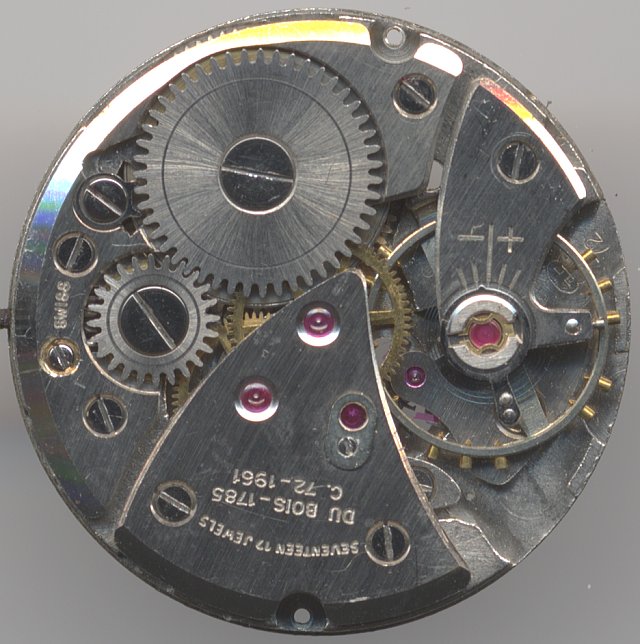

The FHF caliber 72, which is obviously a direct relative of the FHF 67, is a very nice classically constructed mens’ watch movement.

The center second of this flat movement is directly driven; the ring balance with screws uses a blue Nivarox-1 hairspring, which is still non-adjustable connected to the balance cock. The missing regulator arm gives it a slightly modern touch.

How rugged this movement is, can be seen on the specimen shown below: It survived an amateurisch skeletonize attempt by myself:

A youth sin: Self-skeletonized FHF 72

A youth sin: Self-skeletonized FHF 72

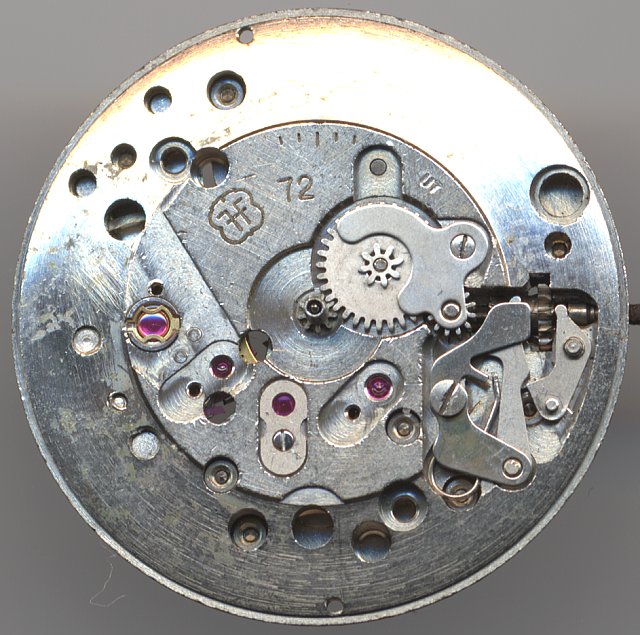

FHF 72 dial side

FHF 72 dial side

Technical data

Manufacturer:FHF
Caliber:72
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel screw balance
Shock protection(s): Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:SCD
Functions:hour, minute, second
A/h:18000
Size:11 1/2'''
Literature: Flume: 1962 8

Usage gallery

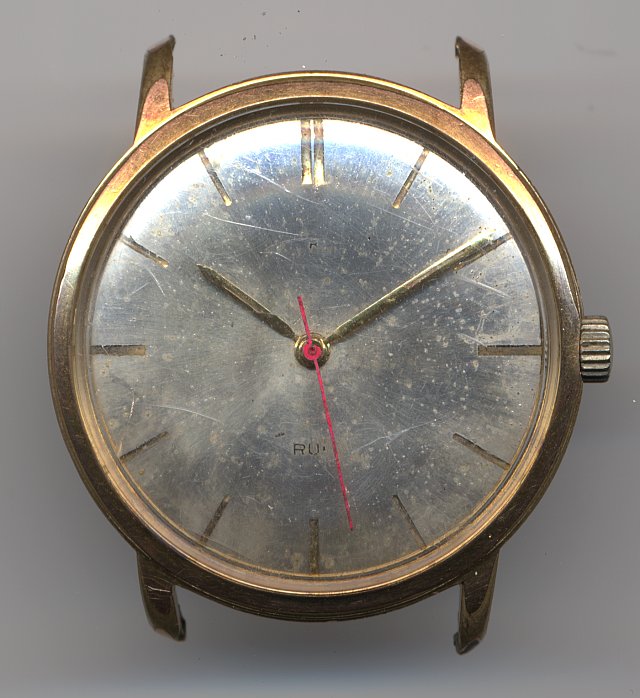

DuBois gents watch

DuBois gents watch
