FHF 96 (Standard)


FHF 96 (Standard) |

FHF 96 (Standard)

Description

The FHF (Standard) caliber 96, a men’s size movement, which was used frequently, is a direct relative of the vintage FHF 67, althogh the shape and decoration of the bridges is much more modern.

The center second hand is driven directly; the ring balance does not have a long regulator arm, but a quick release mechanism for the hairspring regulator - a very useful detail for a service.

On the dial side, you see the familiar yoke winding mechanism.

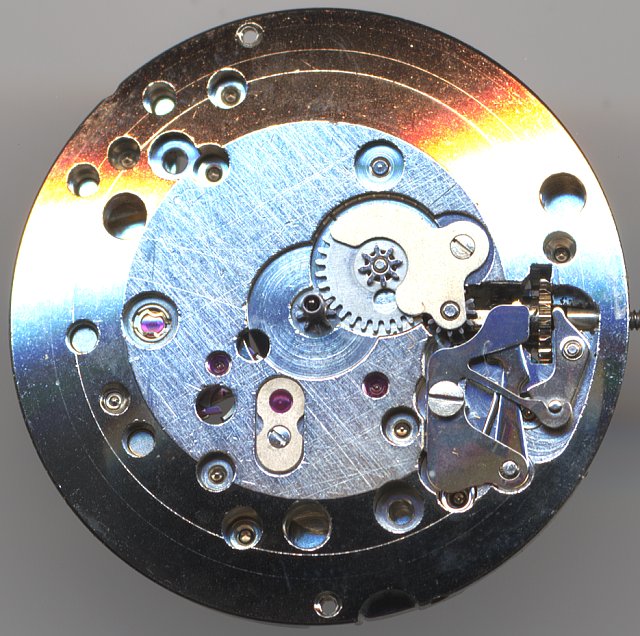

FHF 96 (Standard): FHF 96 dial side

FHF 96 dial side

Technical data

Manufacturer:FHF
Caliber:96 (ST)
Caliber base:FHF 96 (Standard)
Size:11 1/2'''
A/h:18000
lift angle:52°
Number of jewels:17
Escapement:Pallet lever
Balance types:Nickel anular balance
Shock protection(s):Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:yes
Adjust mechanism:Fonto
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 holes
Features:
  • SCD (direct center seconds)
References:Flume: K3 39
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

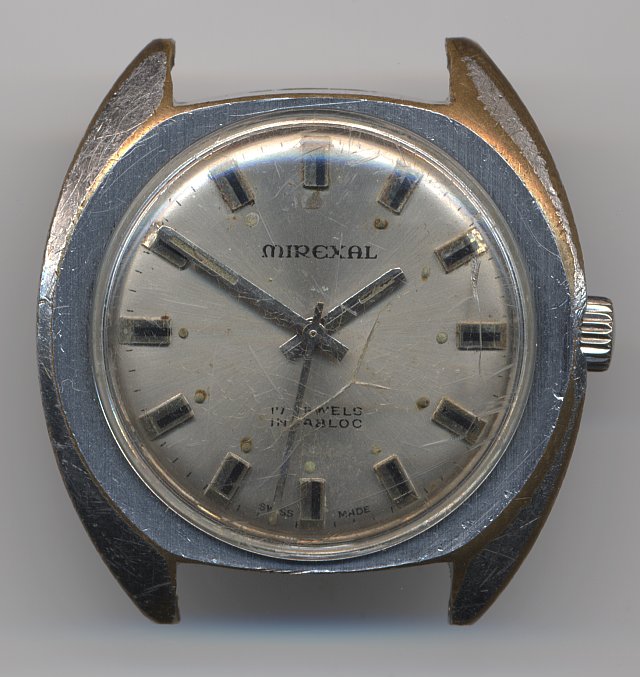

FHF 96 (Standard): Mirexal gents watch

Mirexal gents watch
