GUB 09-20

Description

Pretty sure, everyone once had a GUB 09-20 in his hands. It was produced 3.4m times by the VEB Glashütter Uhrenbetriebe. WIth its nominal size of 5 1/2 lignes (13.0 x 15.15mm) it was a perfect movement to used in the tiny ladies' watches, which were very popular then.

Less familiar is the fact, that this movement existed in four different versions at the same time. Some movements were produced in Glashütter (those with the engraving “Glashütte” on the movement bridge), some in Ruhla (those with the engraving “17 Jewels). Additionally, two shock protection systems were available, the inhouse GUB shock protection and the swiss Incabloc:

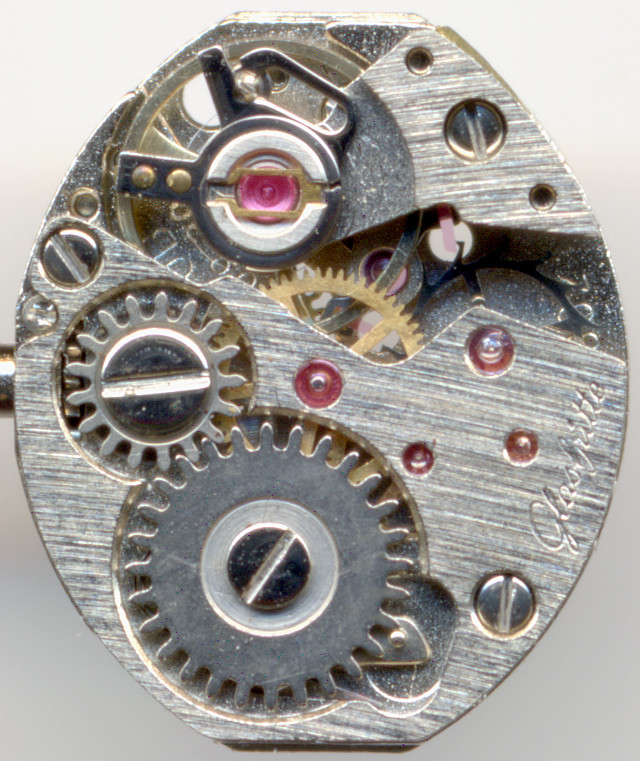

GUB 09-20: Glashütte, GUB shock protection

Glashütte, GUB shock protection

The GUB 09-20 was, as successor of the GUB 08-20 produced from 1972 until 1990 or 1991 (depending on the source) and was even used in gents watches, because since end of the 1970ies, no more manual wind gents movements were available from the GUB.

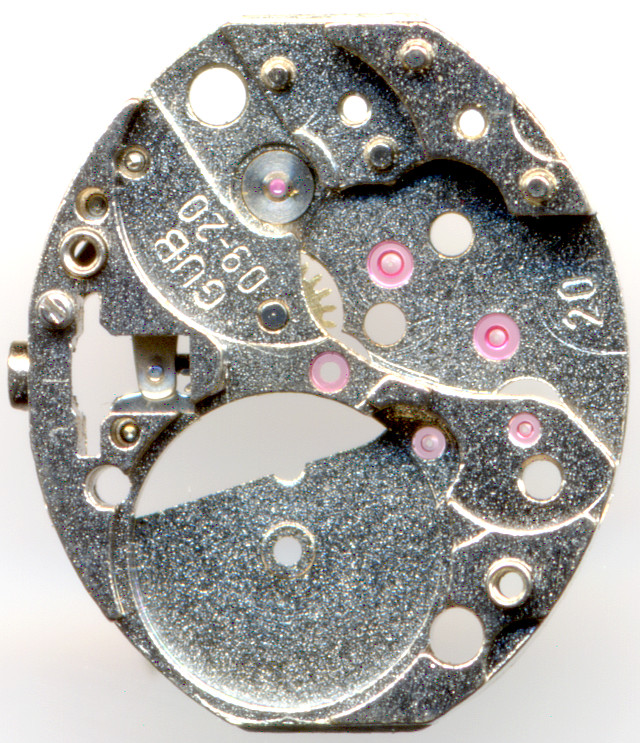

GUB 09-20: base plate

base plate

In all versions, the base plate is the same. You can see the high quality, because all bearings, even the center minute wheel bearing, are ruby-equipped. In total, these movements had 17 jewels.

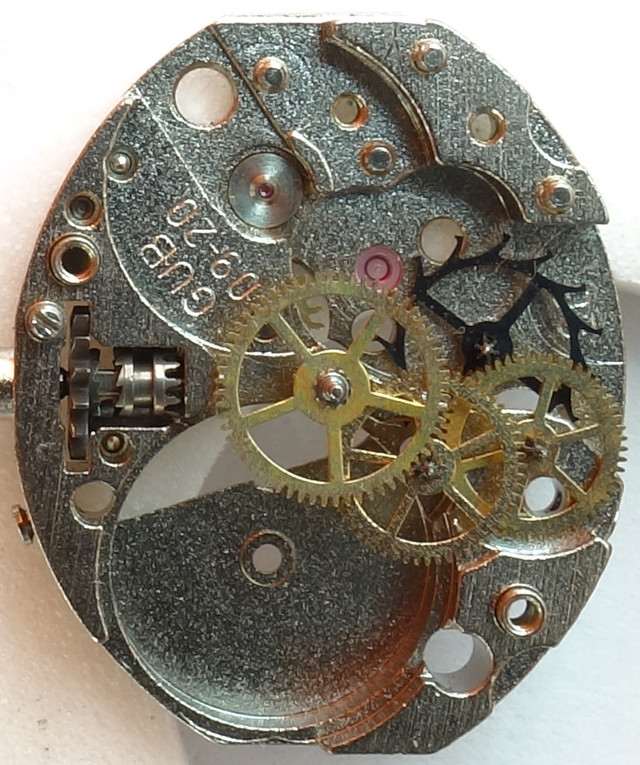

GUB 09-20: gear train

gear train

The gear train is very common for those tiny movements. It has got a directly driven center minute wheel and a multi-storey construction where the fourth wheel bearing is above the escapement wheel.

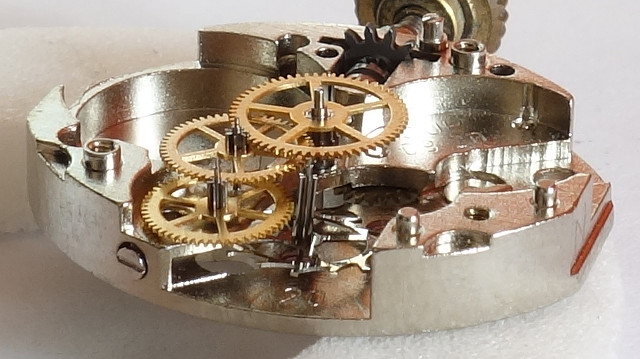

GUB 09-20: side view of the gear train

side view of the gear train

The GUB 09-20 has got a shock proected anular balance, which already beats with 21600 A/h. It regulates a conventional swiss pallet lever movement. Its hairspring is stuck into the hairspring stud.

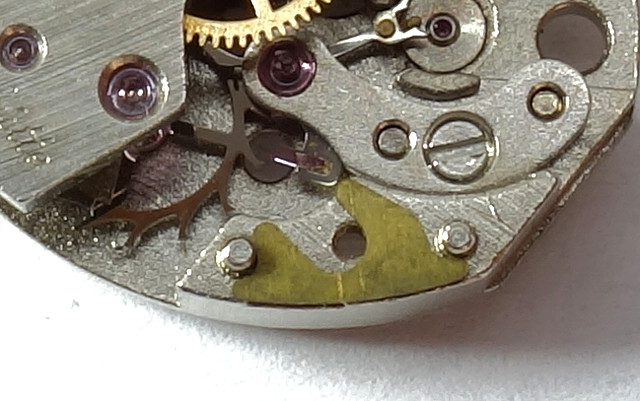

GUB 09-20: Spacer

Spacer

The height of the balance wheel cock is adjusted by a flat metal spacer. Maybe this is because of the different heights of the two different shock protections. A simple, but efficient solution.

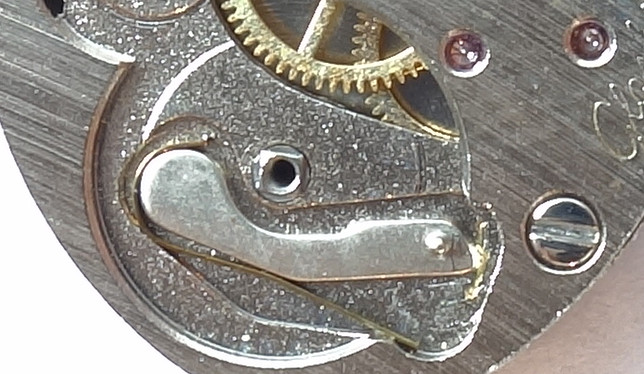

GUB 09-20: Detail: ratchet

Detail: ratchet

A simple but also efficient solution was found for the ratchet: It consists of only one part (plus spring) without axle, but with a large joint. It resides safely below the ratchet wheel.

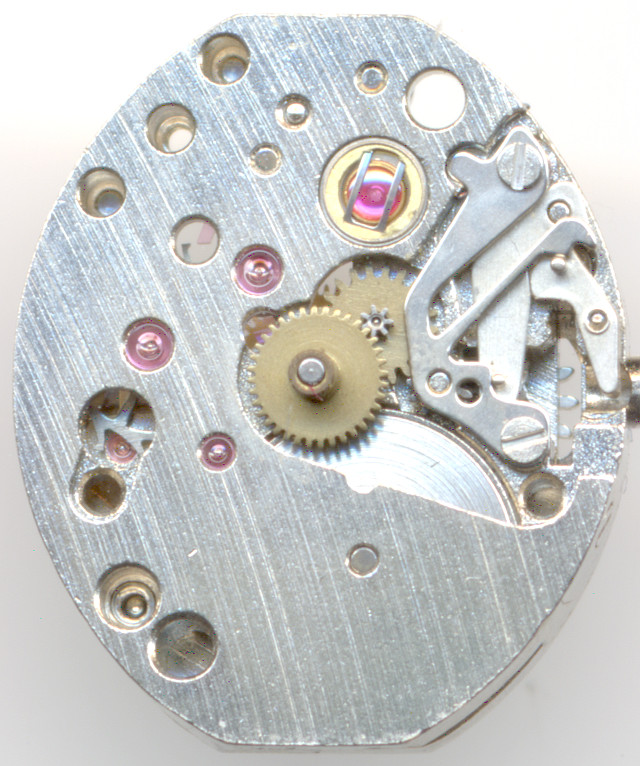

GUB 09-20: GUB 09-20: Dial side

GUB 09-20: Dial side

On the dial side, you can spot the yoke winding system and the GUB shock protection.

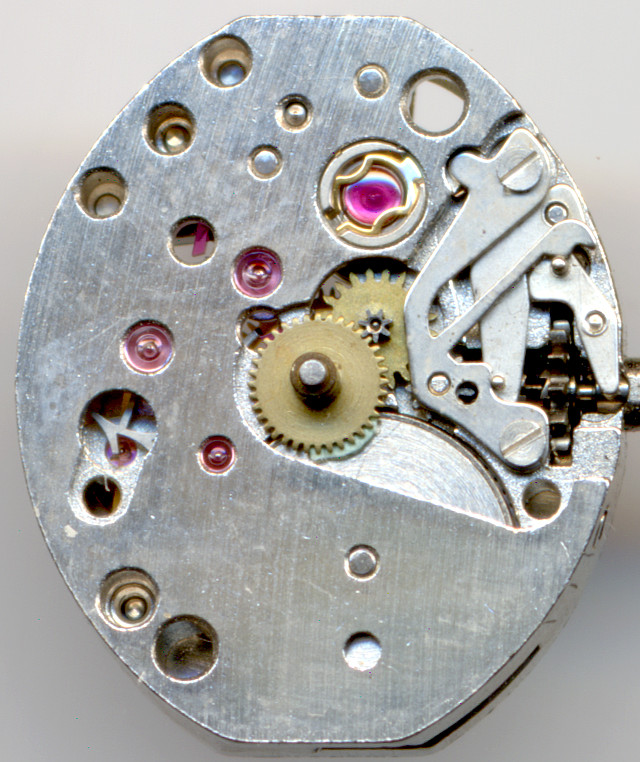

GUB 09-20: dial side with Incabloc shock protection

dial side with Incabloc shock protection

Technical data

Manufacturer:GUB
Caliber:09-20
Size:5 3/4 x 7'''
A/h:21600
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): GUB (Glashütter Uhrenbetrieb)
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:yes
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:yoke winding system
References: Flume: K3N1 -
Production years:1972-1991
Inventory number:17032

Usage gallery

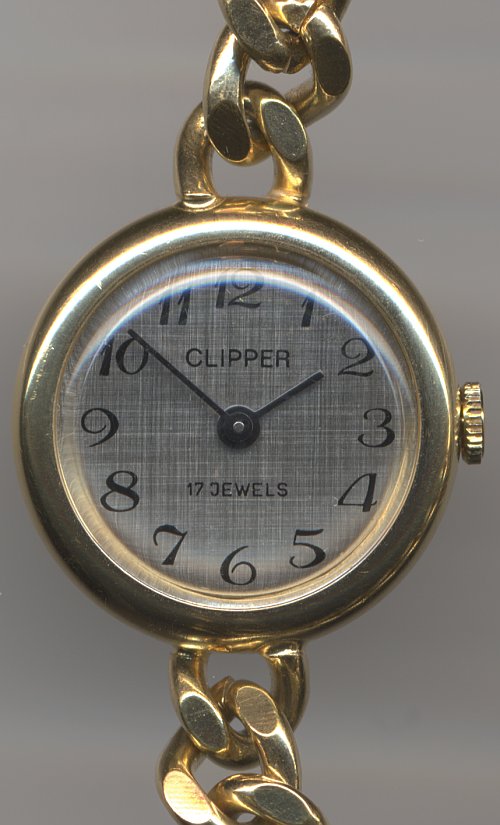

GUB 09-20: Clipper ladies' watch

Clipper ladies' watch

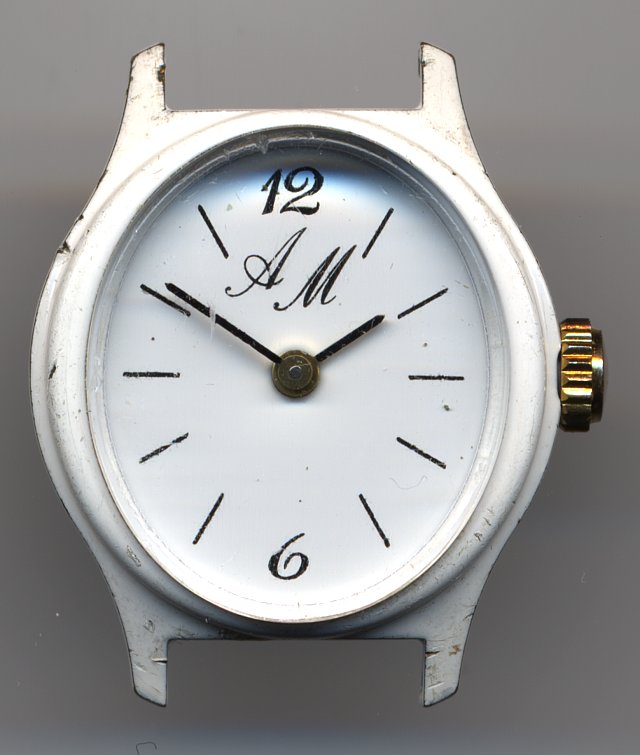

GUB 09-20: AM ladies' watch

AM ladies' watch

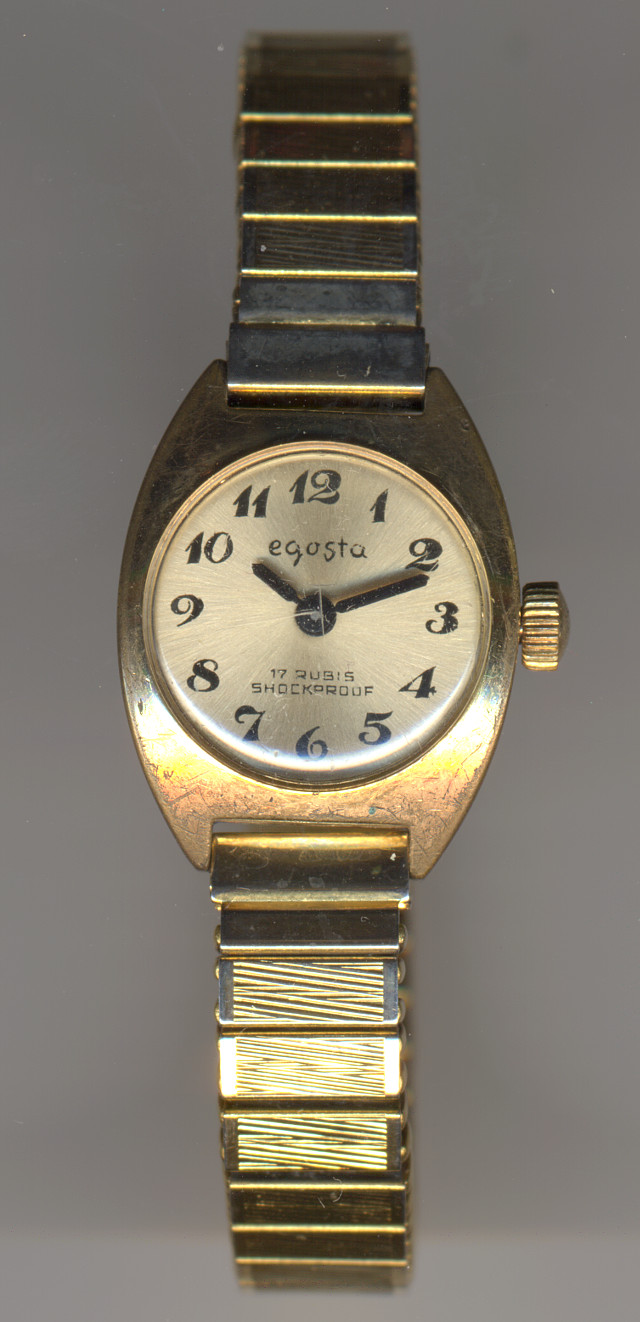

GUB 09-20: Egosta ladies' watch

Egosta ladies' watch

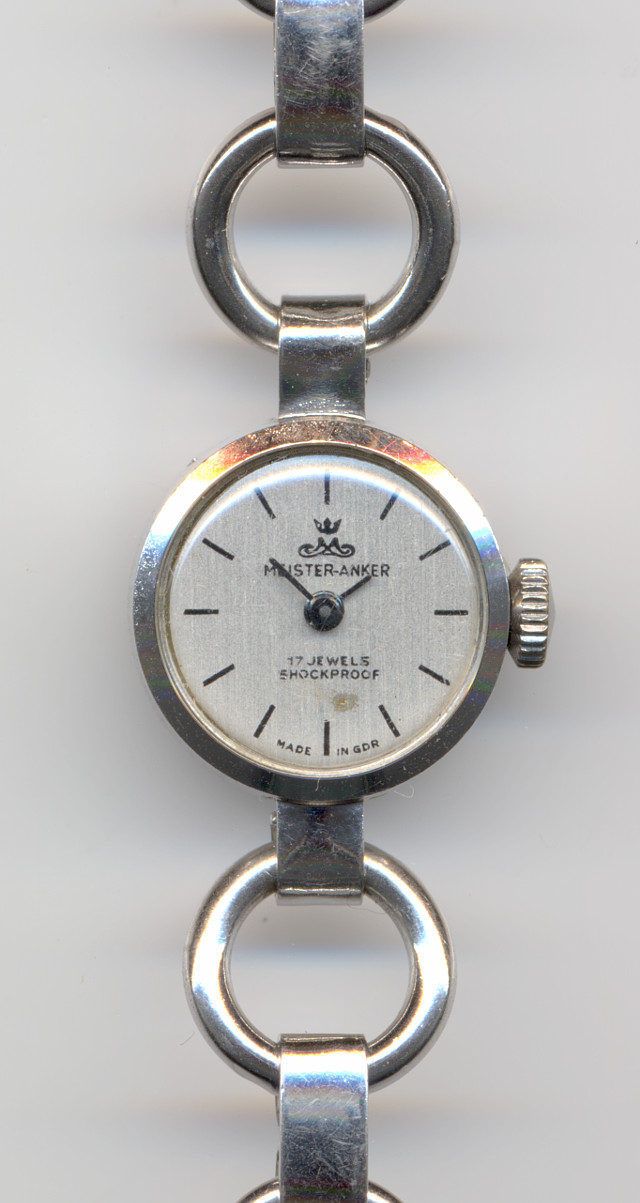

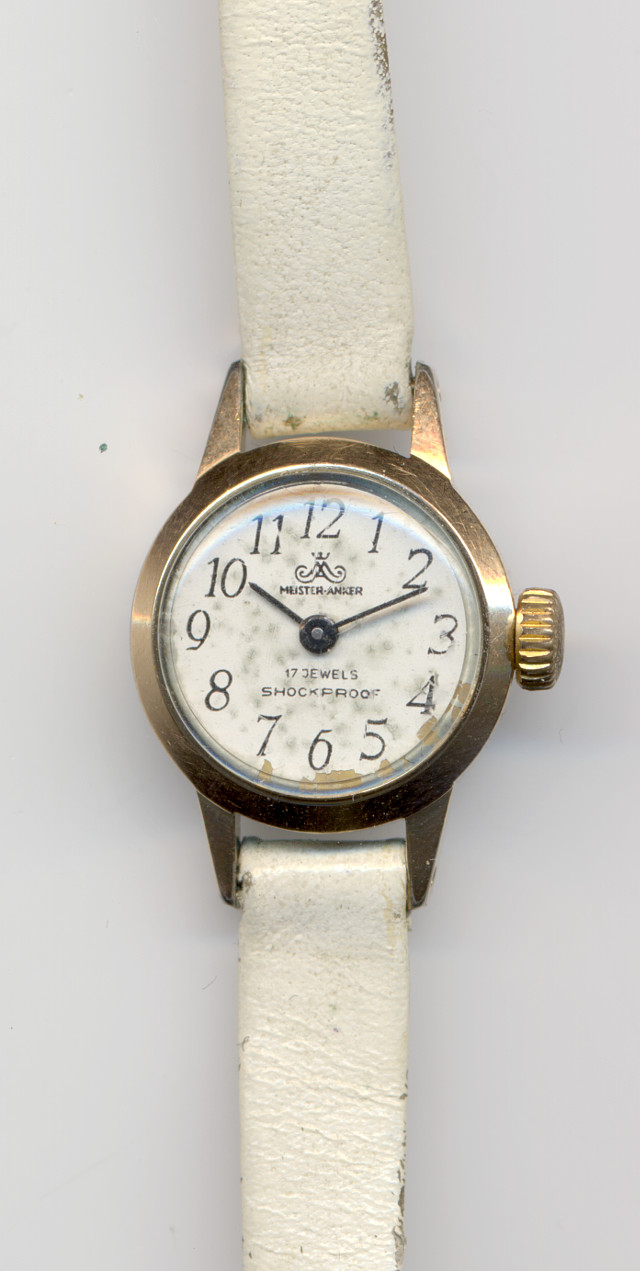

GUB 09-20: Meister-Anker ladies' watch

Meister-Anker ladies' watch

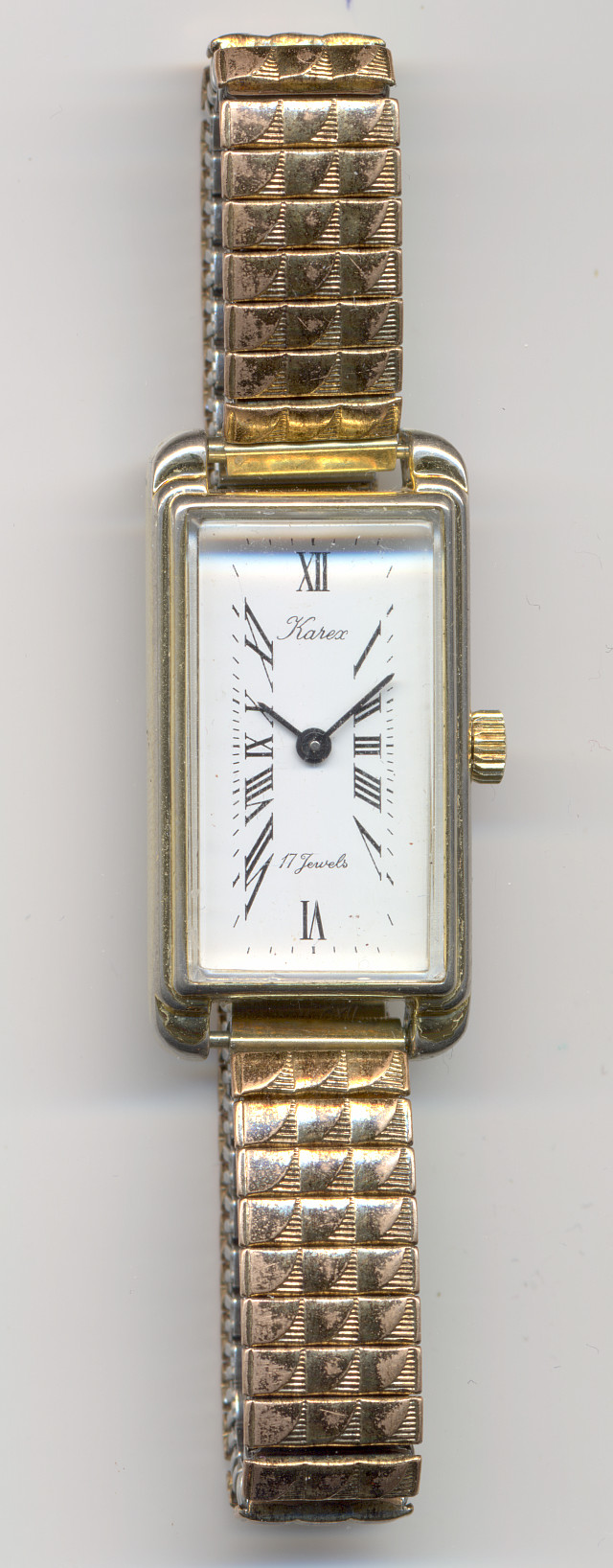

GUB 09-20: Karex ladies' watch

Karex ladies' watch

GUB 09-20: Meister-Anker ladies' watch

Meister-Anker ladies' watch

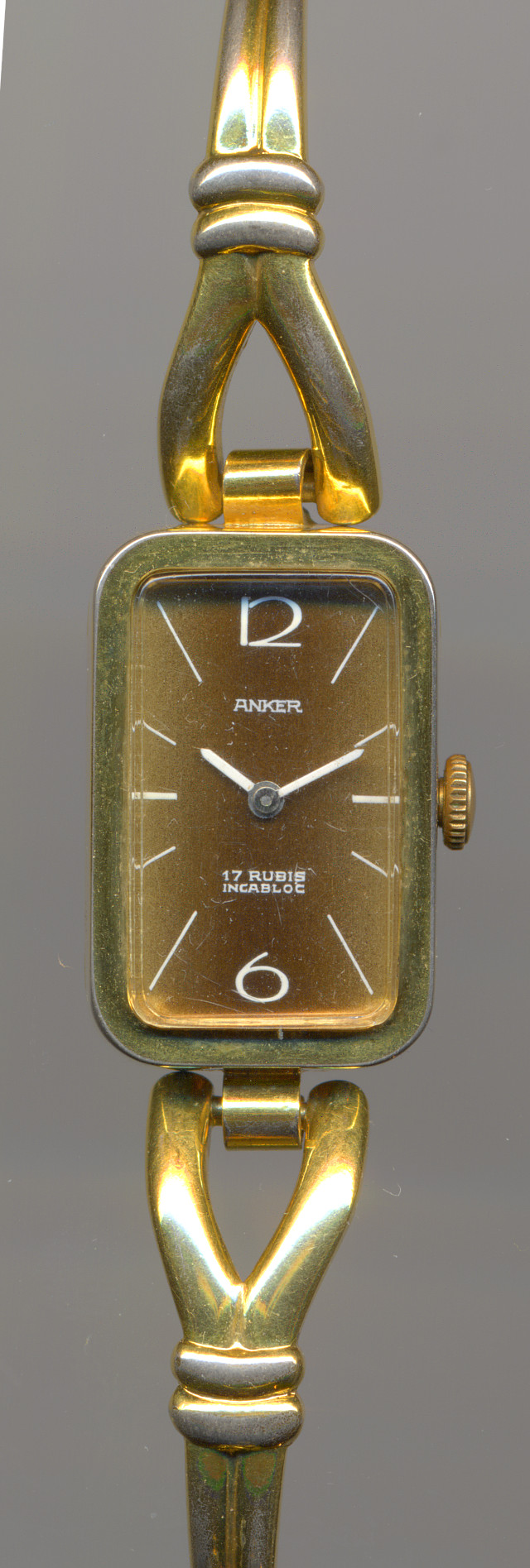

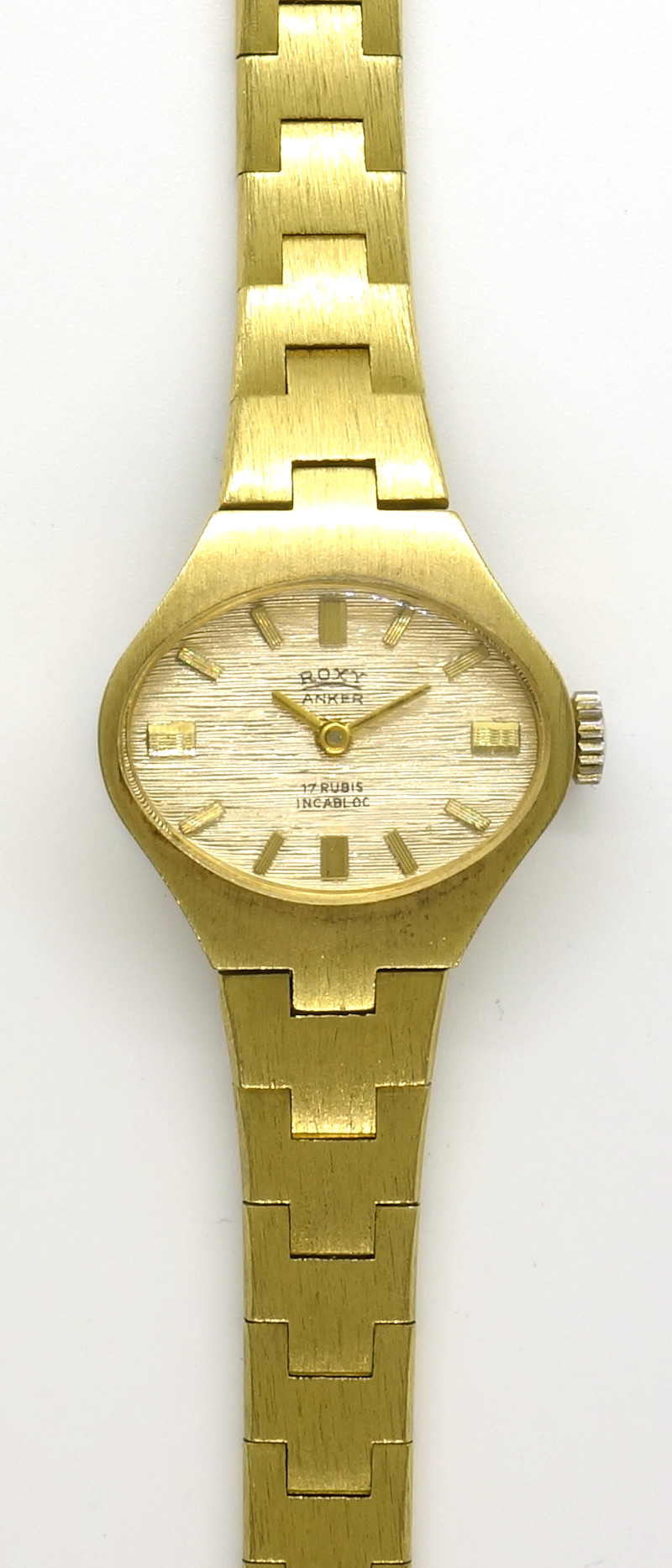

GUB 09-20: Anker ladies' watch

Anker ladies' watch

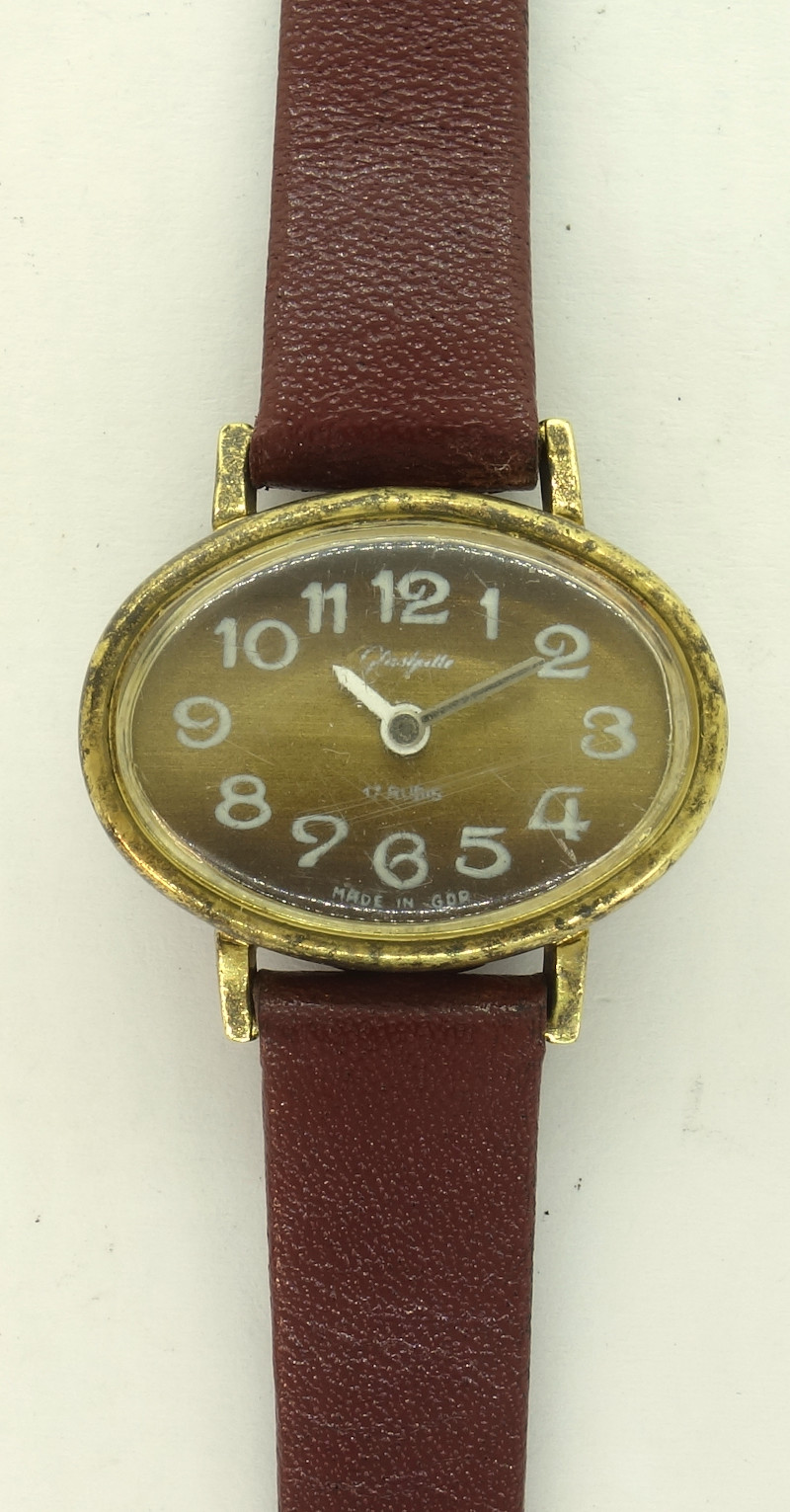

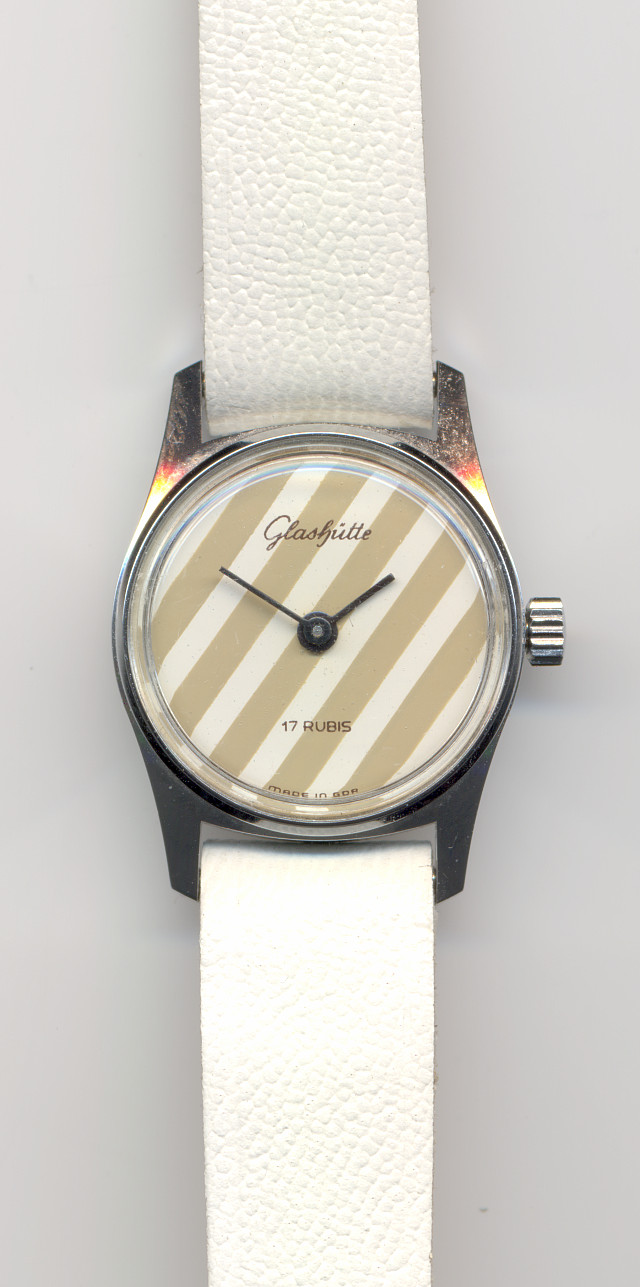

GUB 09-20: Glashütte ladies' watch

Glashütte ladies' watch

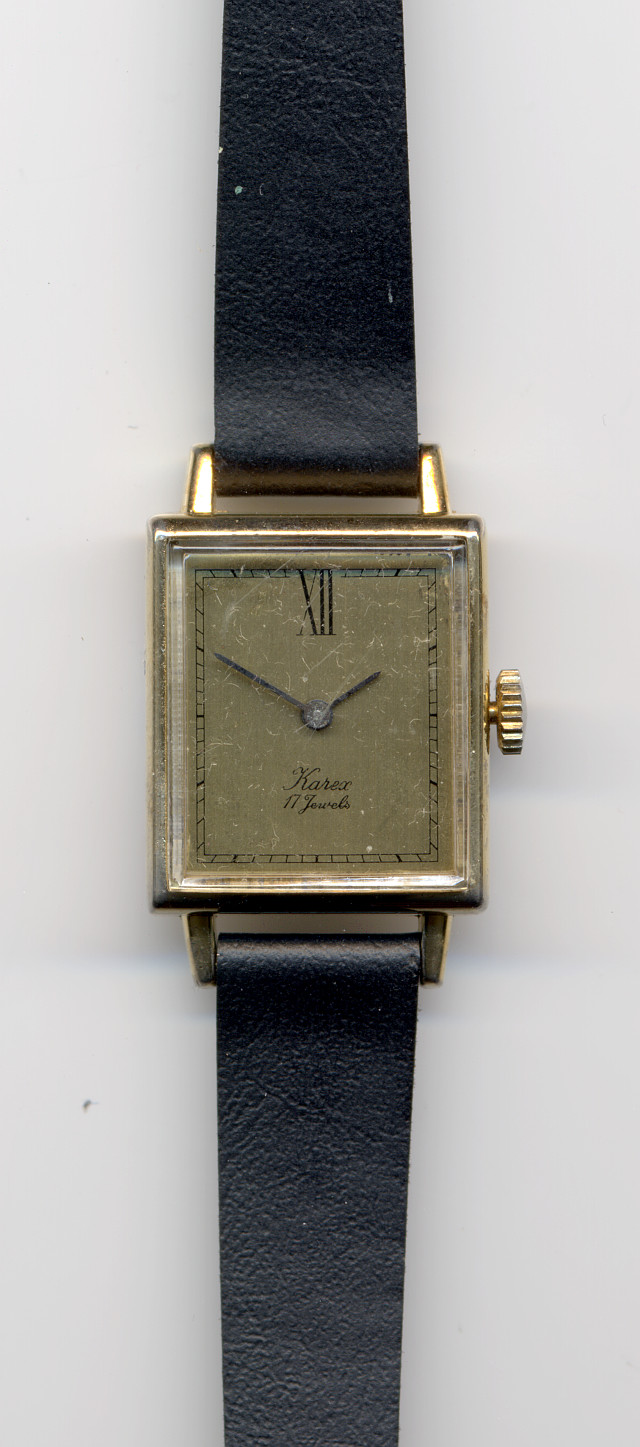

GUB 09-20: Karex ladies' watch

Karex ladies' watch

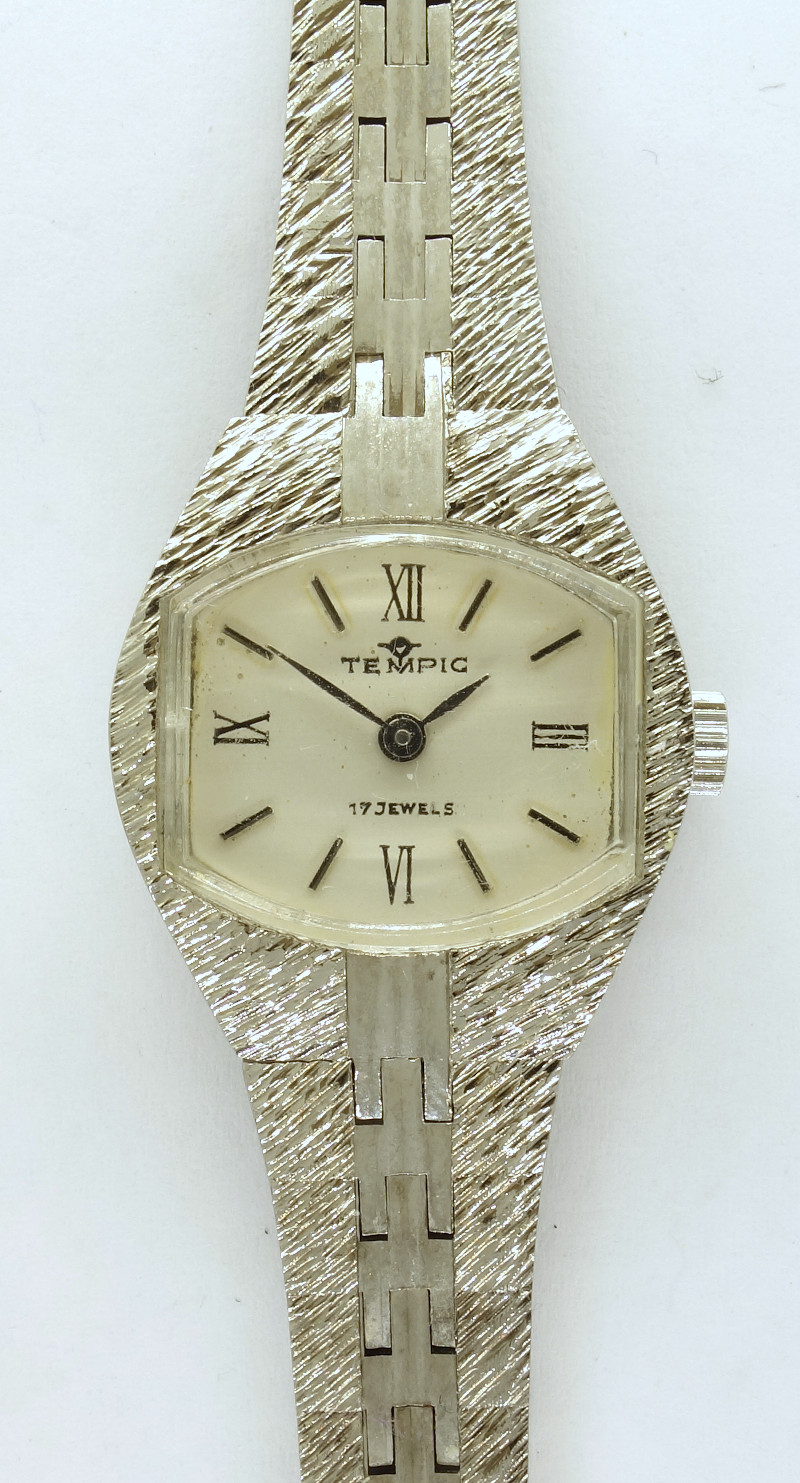

GUB 09-20: Tempic ladies' watch

Tempic ladies' watch

GUB 09-20: Glashütte ladies' watch (SNr. 352537)

Glashütte ladies' watch (SNr. 352537)

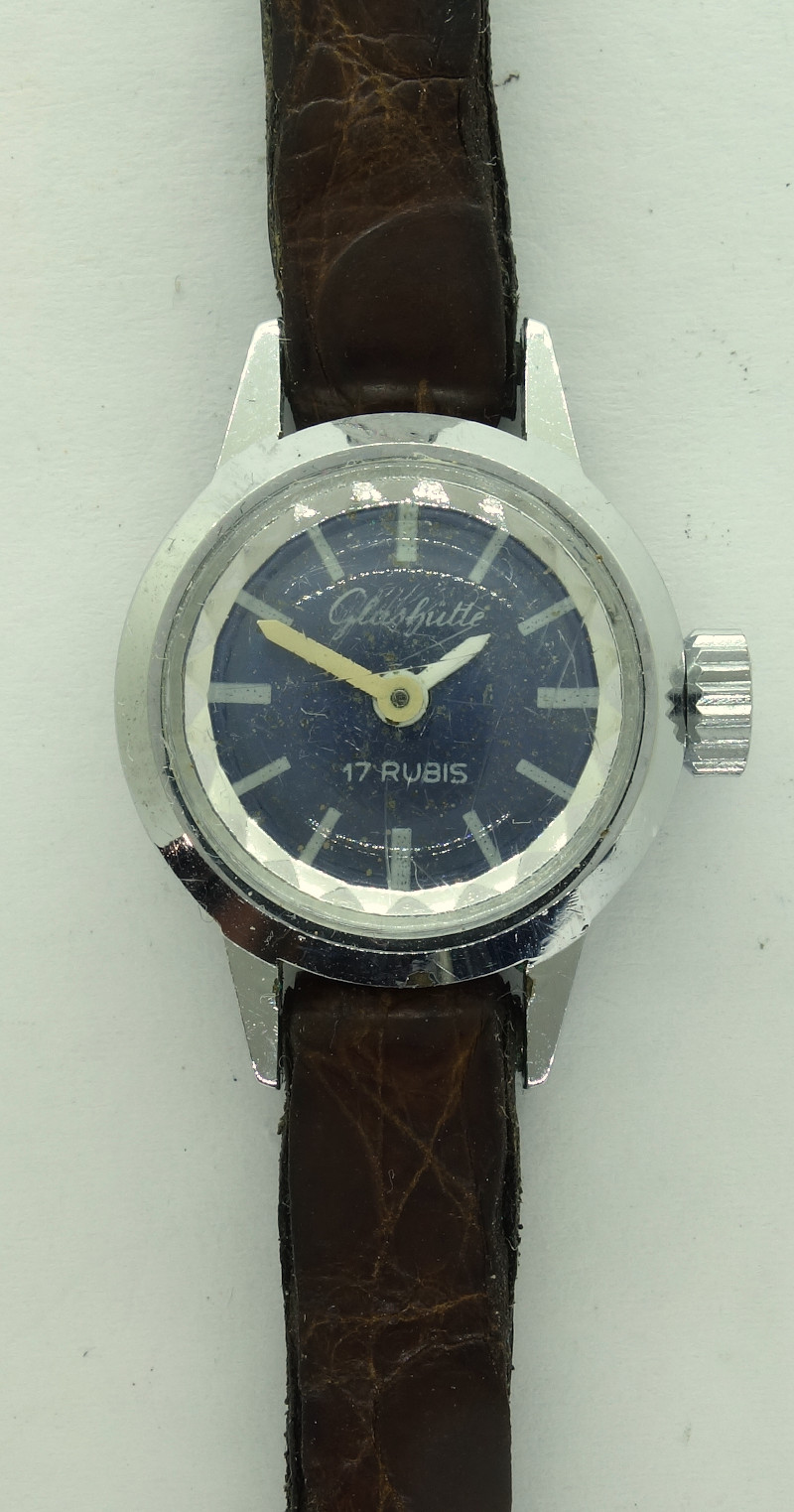

GUB 09-20: Glashütte ladies' watch

Glashütte ladies' watch

Some of the watches / movements were donated by Günter G., G.Keilhammer and Lars Schröder. Thank you very much for the support of the movement archive!
