Guba 1200

Description

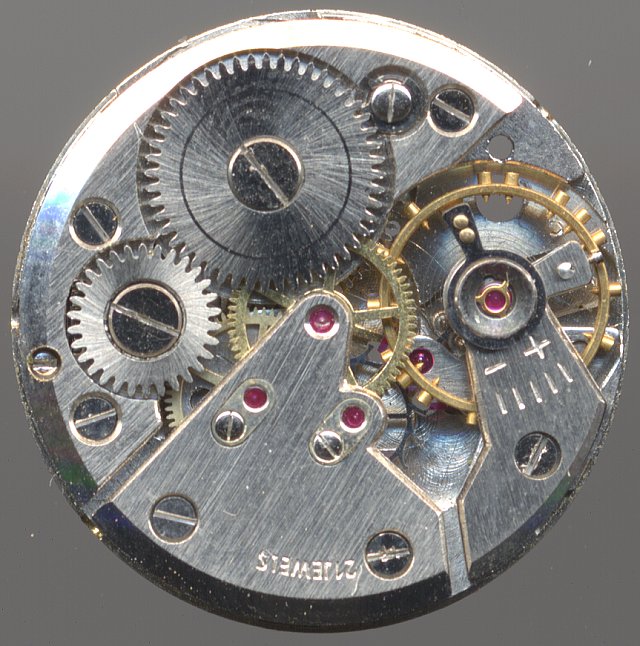

The Guba 1200 is a remarkable mens' size movement. In literature, the manufacturer Guba is almost unknown, neverthess, their movements, especially caliber 25 and the caliber 1200 descibed here are often found in watches of the fifties. Since this movements is not marked at all, it is quite difficult to identify, but thanks to its uniquely shaped setting lever spring, it was finally possible to determine its manufacturer and caliber number.

The Guba 1200 impresses with its golden-tone Glucydur balance with screws and the carefully crafted plates with beveled edges. These are all attributes of high-class movements.

The caliber 1200 was available in different versions, with seventeen jewels, with 21 jewels, with a Farr-II Shock protection, with a Trishock protection etc. Only the long regulator arm is missing in all versions, although the scale for it is engraved in the balance cock. Even more noteable is, that besides the 10 1/2 ligne version, there exists also a 11 1/2 ligne version with a larger main plate but the same caliber number.

Guba 1200: Guba 1200 11 1/2 ligne

Guba 1200 11 1/2 ligne

Technically resembles this movement with its directly driven center second hand and the yoke winding system on the dial side the technical state-of-the-art of the fifties.

Guba 1200: Guba 1200 dial side

Guba 1200 dial side

Technical data

Manufacturer:Guba
Caliber:1200
Size:10 1/2 / 11 1/2'''
A/h:18000
Number of jewels:17/21
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): Farr I
Ruby-Shock
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:
  • SCD (direct center seconds)
References: Flume: 1962 31

Usage gallery

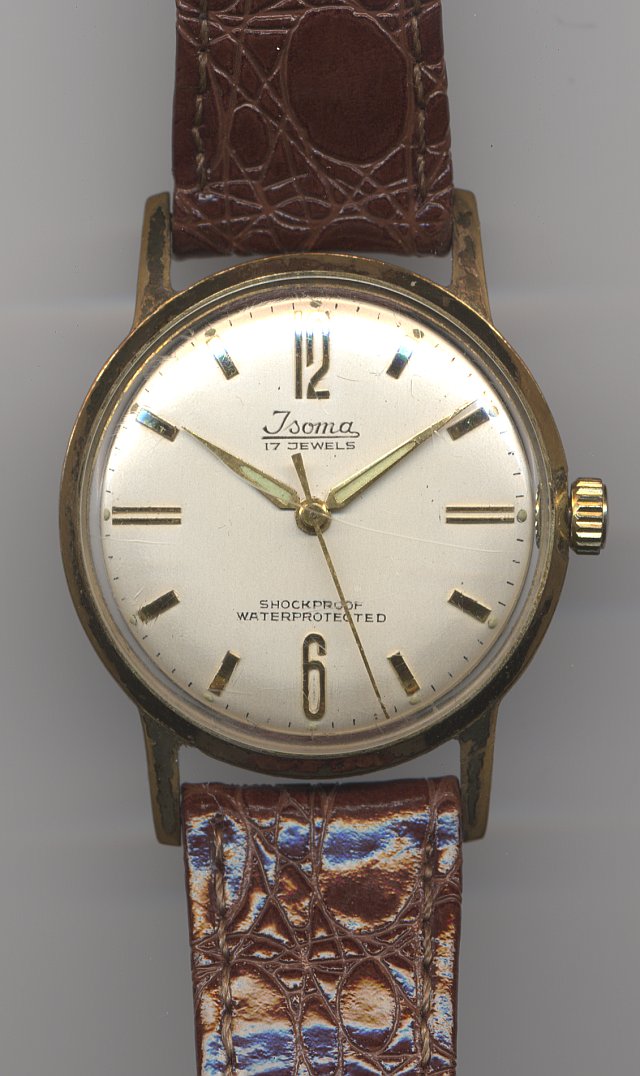

Guba 1200: Isoma gents watch

Isoma gents watch

Guba 1200: Küster gents watch

Küster gents watch
