HPP 114

Description

With the exception of the 600 / 6000 series, HPP movements are pretty rare to find. Maybe they were not produced in big quantities. The HPP 114 shown here is a pretty well made manual wind movement with a large diameter of 13 lignes, which was suitable for the popular extra flat watches in the 1960ies.

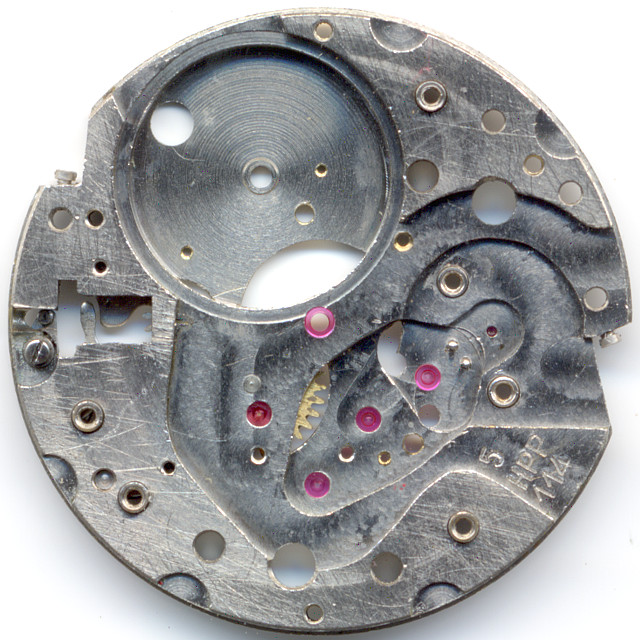

HPP 114: base plate

base plate

The HPP 114 uses 17 jewels, and since the minute wheel is ruby beared on both sides, too, there were no cap jewels required to achieve the “magical” number of 17 jewels.

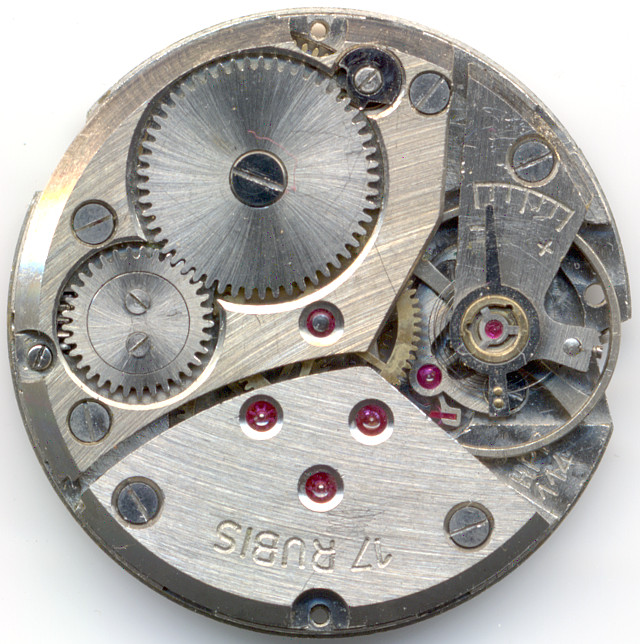

HPP 114: gear train

gear train

Thanks to the large plate, the movement train could be made one-storey and flat with a large mainspring barrel, directly driven center minute wheel, third wheel, seconds wheel and steel escape wheel.

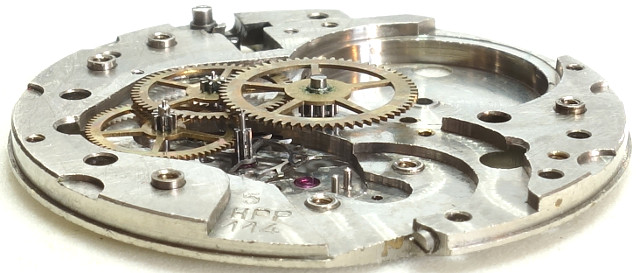

HPP 114: side view of the gear train

side view of the gear train

It already used a screw-less anular balance, which is secured in two inhouse “Hercules” shock protection bearings. It beats slowly with 18000 A/h and controls a classical swiss type pallet lever movement.

For regulation purposes, a long regulator arm with a scale on the balance wheel cock is used.

HPP 114: HPP 114: Dial side

HPP 114: Dial side

Since this movement has got no calendar mechanism, the dial side looks pretty simple. At 3 o’clock you can see the yoke winding system with the large setting lever spring, which covers the change wheel largely.

The only noteable detail is the “Hercules” shock protection at 9 o’clock, which is truely intetrated into the dial plate and for whose three-leg spring, there are undercover cutouts in the plate.

Technical data

Manufacturer:HPP
Caliber:114
Size:13''' (measured: 28,5mm)
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Hercules (Henzi & Pfaff)
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:4 hole(s)
References: Flume: K2 19
Inventory number:18033

Usage gallery

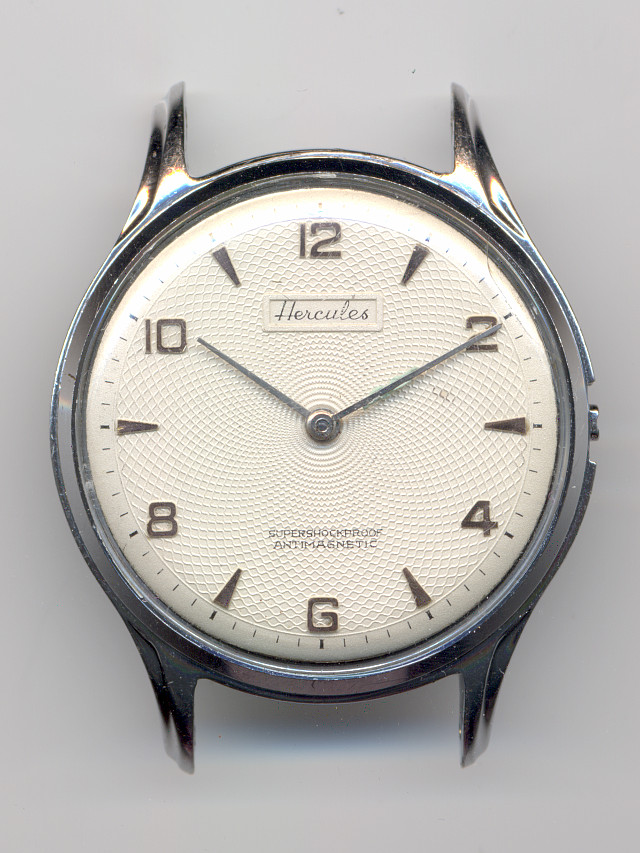

HPP 114: Hercules gents watch

Hercules gents watch

This movement and its watch is a kind donation from Klaus Brunnemer to the movement archive. Thank you very much for your great support!
