HPP 210


HPP 210 | 17jewels.info - The Movement Archive

HPP 210

Description

The Pforzheim based manufactury Henzi & Pfaff produced till the 1960ies rather small amounts of watches under their brand name “Hercules” and movements. One of the rare specimen of those movement is the mid-size ladies' caliber 210, which has got 21 jewels, even described in script typeface.

HPP 210: gears and trains

gears and trains

The construction of the HPP 210 is contemporary with directly driven center second hand and minute.

HPP 210: side view of the gears and trains

side view of the gears and trains

This movement offers an oddity: A lateral lever, probably used due to the reduced free space of this movement. On this type of lever, the pallets are not at the ends, like on a fork, but on the same side of the lever, while the other side is empty:

HPP 210: lateral lever

lateral lever

The lever is driven by a screw free balance (probably Glucydur), which beats slowly with only 18000 A/h.

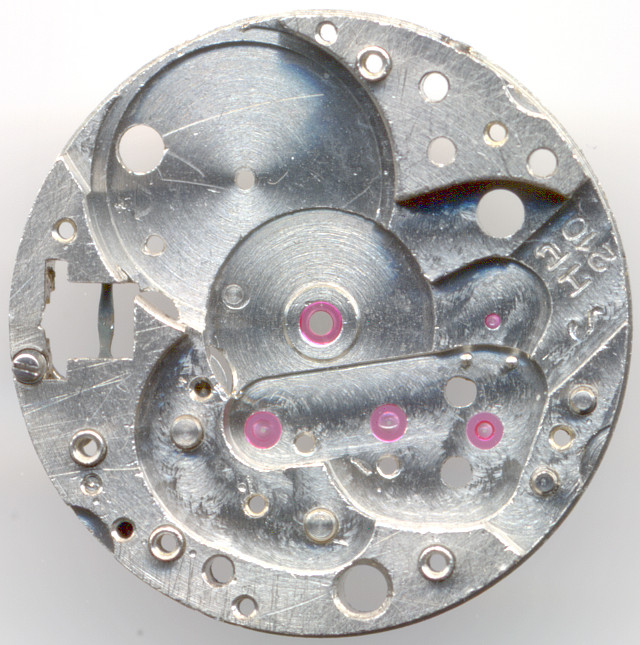

HPP 210: main plate

main plate

As you can see, the shock protection system of the HPP is insert directly into the main plate. So, there’s just a very small hole for the balance wheel.

HPP 210: empty dial side

empty dial side

Note the unusual shape of the setting lever!

HPP 210: HPP 210 dial side view

HPP 210 dial side view

Even on the dial side, there are two cap jewels. More is not possible!

In the lab

The specimen shown here was gummed and blocked by a part and so it got a full service with cleaning and oiling. Unfortunately due to the lack of a machine, it could not be demagnetized. The other problem of the balance is, that the hairspring key is broken.

Timegrapher result

Horizontally the rates are acceptable for a >50 year old watch, but the vertical rates are terrible!
crown right (12 up)

crown right (12 up)

crown up (3 up)

crown up (3 up)

crown left (6 up)

crown left (6 up)

crown down (9 up)

crown down (9 up)

dial up

dial up

dial down

dial down


horizontal positions
dial up-120 s/d
dial down+75 s/d
vertical positions
crown right (12 up)-300 s/d
crown up (3 up)- s/d
crown left (6 up)- s/d
crown down (9 up)- s/d
Timegrapher output

Technical data

Manufacturer:HPP
Caliber:210
Size:8 3/4'''
A/h:18000
Number of jewels:21
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Hercules (Henzi & Pfaff)
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Hairspring key
Construction:
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:
  • SCD (direct center seconds)
References: Flume: 1957 30

Usage gallery

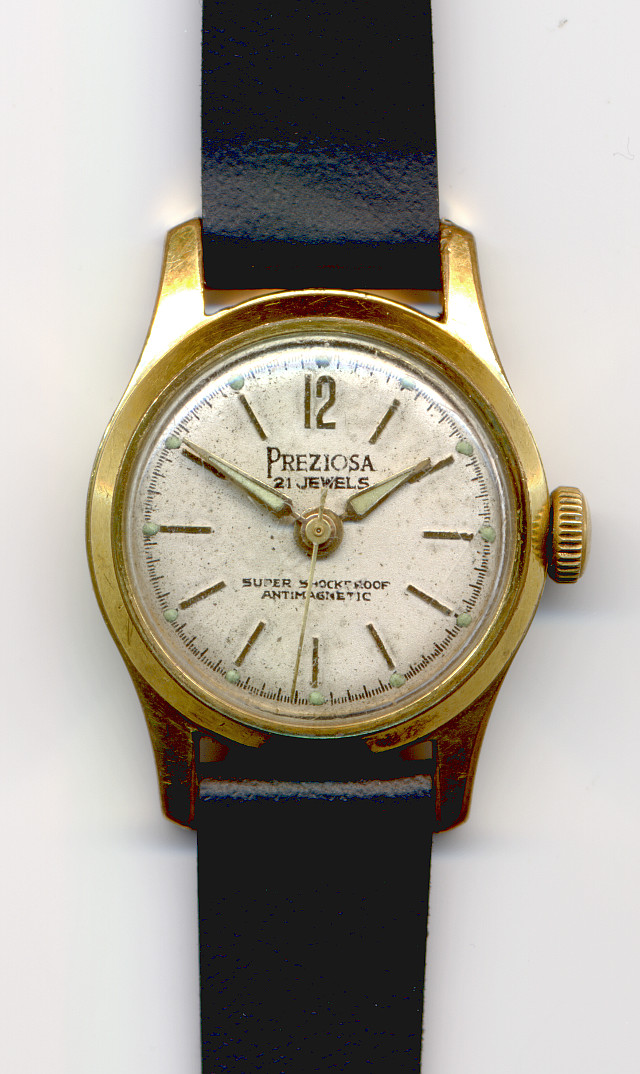

HPP 210: Preziosa ladies' watch

Preziosa ladies' watch
