Jäckle 19/50 / Intex 1055

Description

Even simple pin lever movements can be thrilling sometimes, such as the Jäckle caliber 19/50 described here. The brand Jäckle is very long time out of buisness and hence completely unknown today. Only in the Flume Werksucher K1, there’s a note, that this movement is in the meantime offerd by Intex under their caliber number 1055. And if you compare it with the Intex 2820, you will certainly see the similarities.

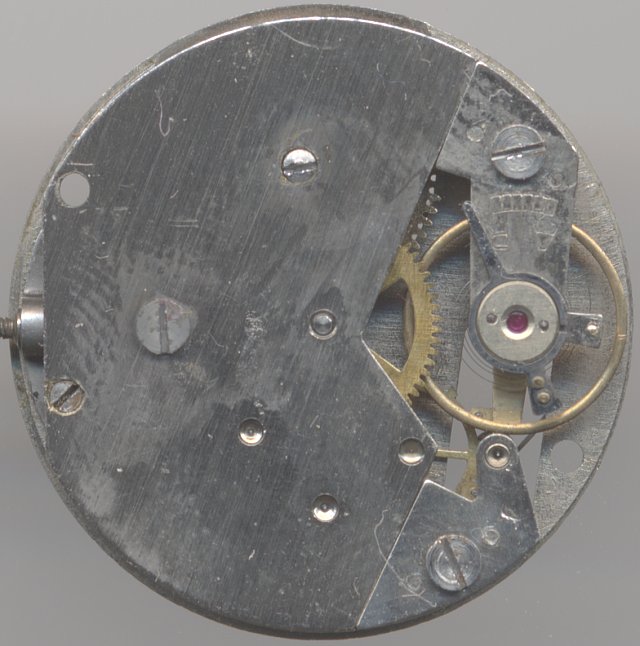

The Jäckle 19/50 is a simple pin lever movement with four jewels for the non shock-protected brass balance. As escapement, a pin lever escapement is used, which regulares a conventional movement with a small decentral second indication.

The mainspring can be released easily by losing one screw - an advantage, only a rocking bar winding mechanism can offer.

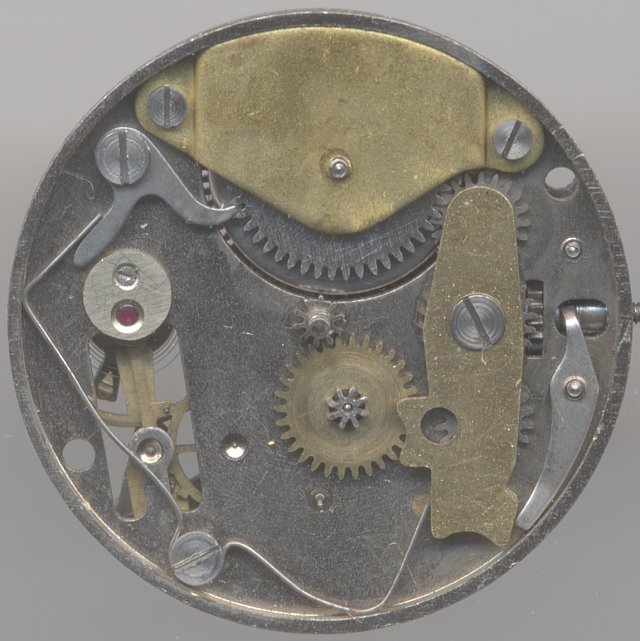

Jäckle 19/50 / Intex 1055: Jäckle 19/50 dial side

Jäckle 19/50 dial side

Technical data

Manufacturer:Jäckle
Caliber:19/50
Size:10 1/4'''
A/h:18000
Number of jewels:4
Escapement:Pin lever
Balance types: Nickel anular balance
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel, mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:2 hole(s)
Features:
  • s (decentral seconds)
References: Flume: 1952 27

Usage gallery

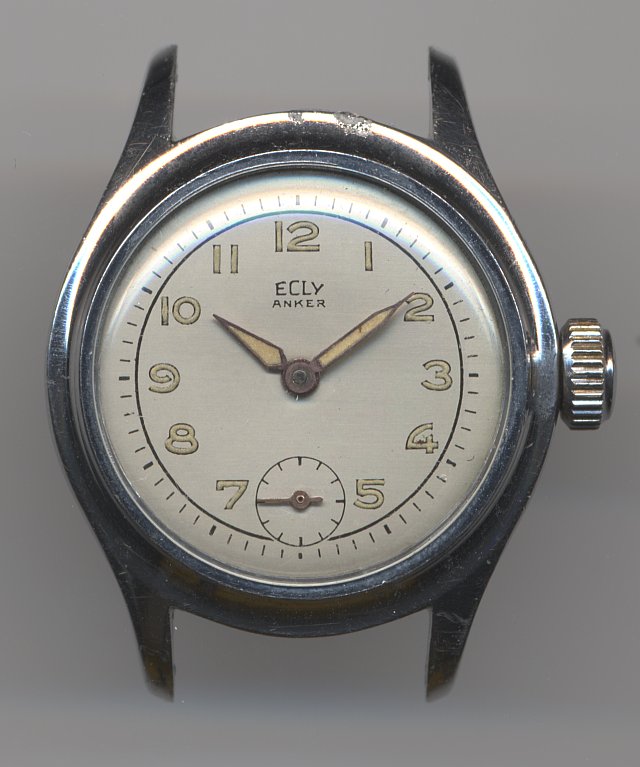

Jäckle 19/50 / Intex 1055: Ecly Anker gents watch

Ecly Anker gents watch
