Jeambrun 23D

Description

The Jeambrun 23D, a handwound movement of the fifties, which was used quite often, originates from France, from the village of Maîche of the departement Doubs near the northwest swiss border.

Video on YouTube

It was available in several versions, which differed by their decoration, the number of used jewels and shock protection systems.

All in common is the unusual construction, where the mainspring barrel is located at “6” and the balance is located at “12”. Hence the barrel arbour wheel is located to the right of the crown wheel and not, as usual, at the left.

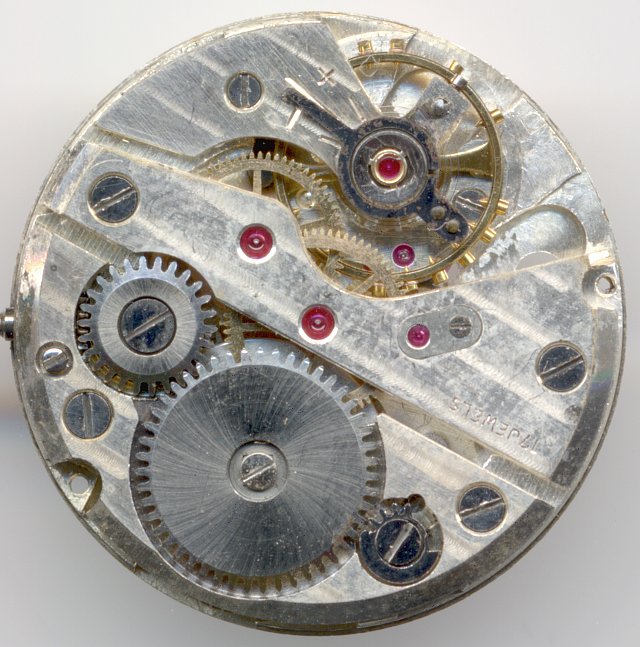

Jeambrun 23D: version with 17j

version with 17j

The golden toned Glucydur screw balance was beared in different shock protection systems, such as Incabloc, Ruby-Shock and others.

The hairspring is fix mounted at the balance cock and can be regulated in its effective length with the help of a long regulator arm. This helps slower beating watches (with 18000 A/h) to achive good timing results.

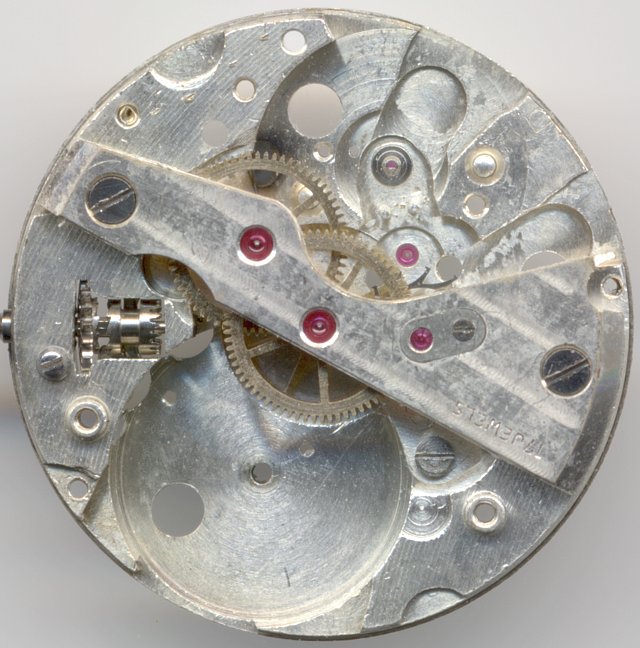

Jeambrun 23D: movement view without mainspring barrel

movement view without mainspring barrel

The train construction is pretty modern with its directly driven center second indication.

The minute wheel is located under an own bridge - pretty modern for the fifties. For a perfect bearing of the concentric second wheel, a loose(!) ruby was put onto the bridge.

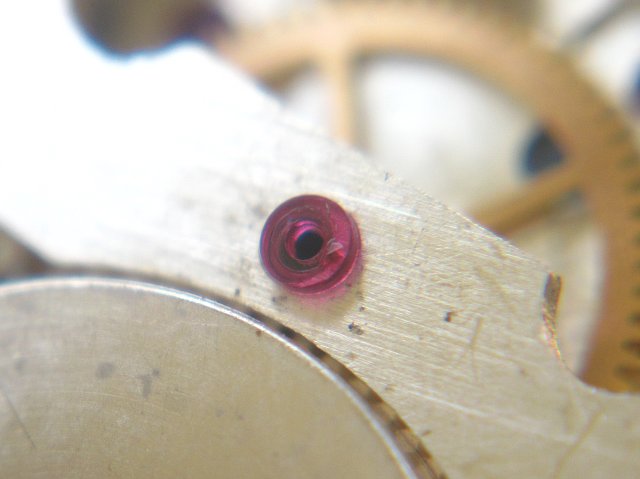

Jeambrun 23D: detail: lose center second wheel bearing jewels

detail: lose center second wheel bearing jewels

Of course, all bearings, except the mainspring barrel bearing, contain synthetic rubis. It the more elaborate version, even 6 of them have got cap jewels on their top. More functional rubis are hardly possible.

Jeambrun 23D: main plate

main plate

On the dial side, you see the yoke winding system with its characteristic setting lever spring, which contains only two holes.

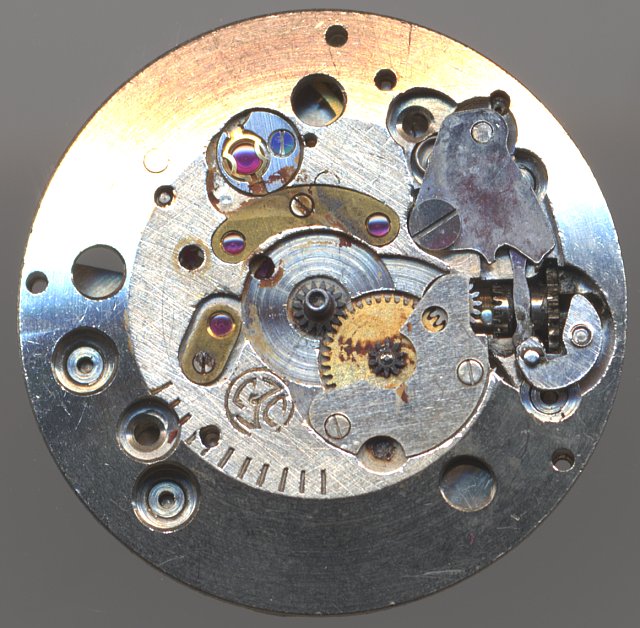

Jeambrun 23D: Jeambrun 23D dial side, 23j version

Jeambrun 23D dial side, 23j version

As usual on those old movements, the Jeambrun 23D contains a helping minute scale, which can be used for timing the watch without timegrapher.

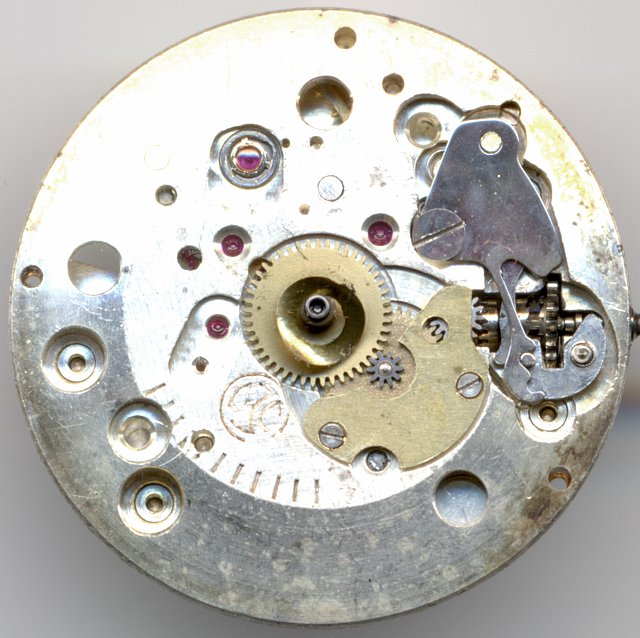

Jeambrun 23D: dial side view, 17j version

dial side view, 17j version

Technical data

Manufacturer:Jeambrun
Caliber:23D
Size:10 1/2''' (measured: 23,3mm)
A/h:18000
Number of jewels:17/23
Escapement:Pallet lever
Balance types: Glucydur screw balance
Shock protection(s): Ruby-Shock
Incabloc
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:
  • SCD (direct center seconds)
References: Flume: 1957 32

Usage gallery

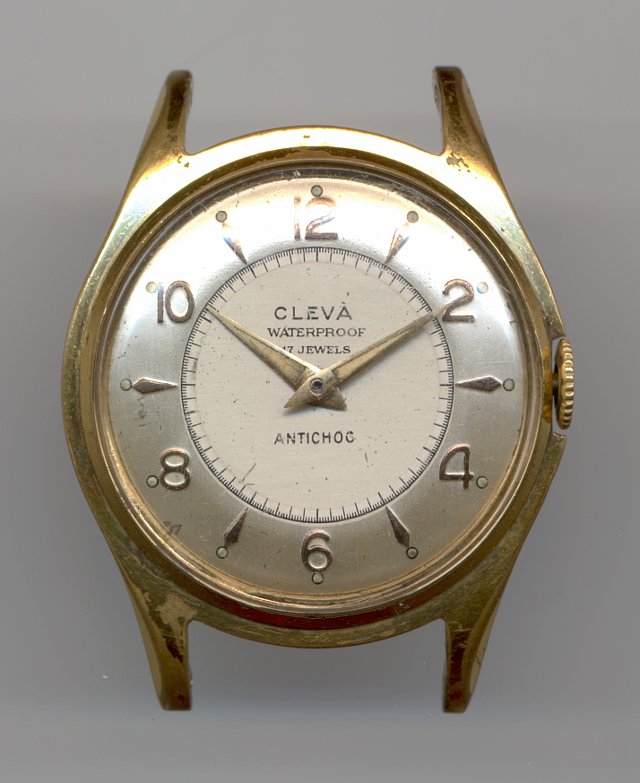

Jeambrun 23D: Cleva gents watch

Cleva gents watch

Jeambrun 23D: Surex Nautika gents watch

Surex Nautika gents watch
