Junghans J73


Junghans J73

Junghans J73

Description

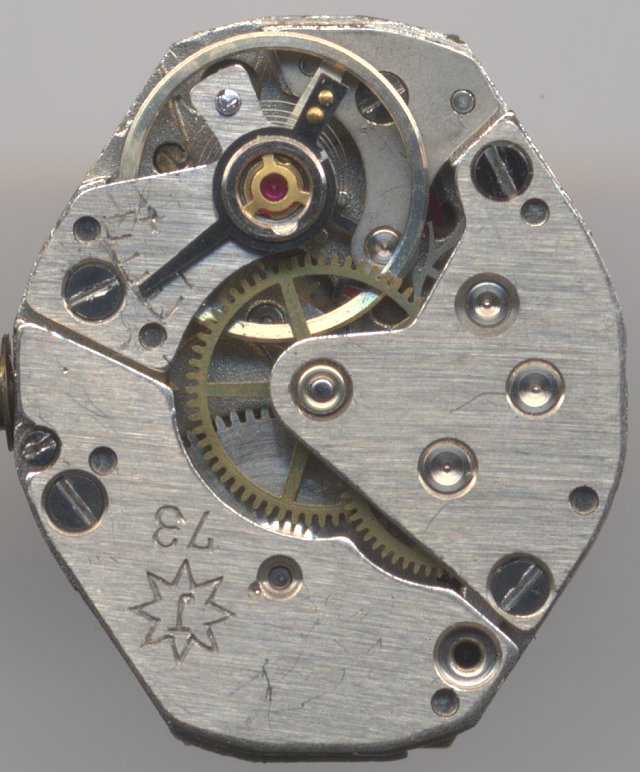

The small form caliber number J 73 is a fairly simple one. It uses an anchor escapement and a nickel balance, beared in a Junghans shock protection system, but all bearings only consist of metal instead of synthetic rubies. The windingsystem is simple, too, it it just a rocking system.
The large gears are remarkable, too. They allow a simpler design.

A different version of the caliber J 73 is fully equipped with 17 jewels, thus allowing a broad range from cheap to expensive watches with the same base movement.

version with 17 jewels

version with 17 jewels

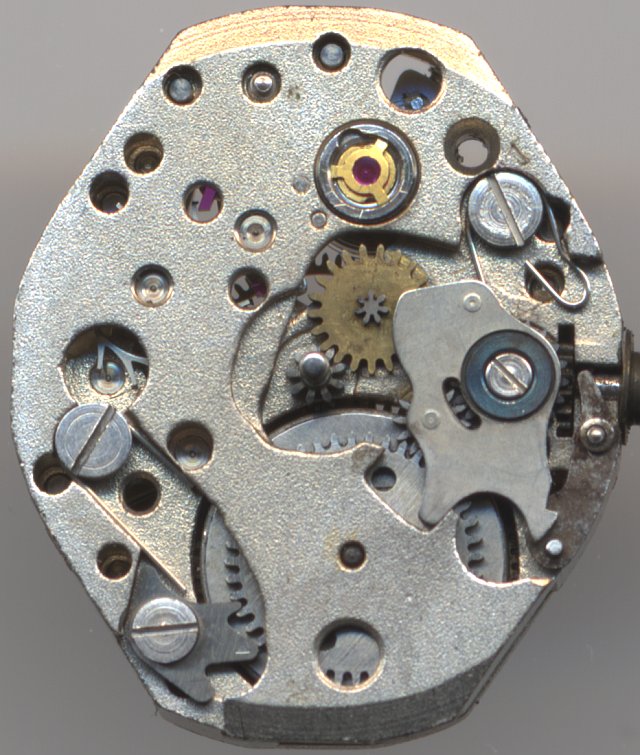

Junghans J73 dial side

Junghans J73 dial side

dial view of 17j version

dial view of 17j version

Technical data

Manufacturer:Junghans
Caliber:J73
Number of jewels:5/17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Junghans
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:2 hole(s)
Functions:hour, minute
A/h:18000
Size:6 3/4 x 8'''
Literature: Flume: 1957 48

Usage gallery

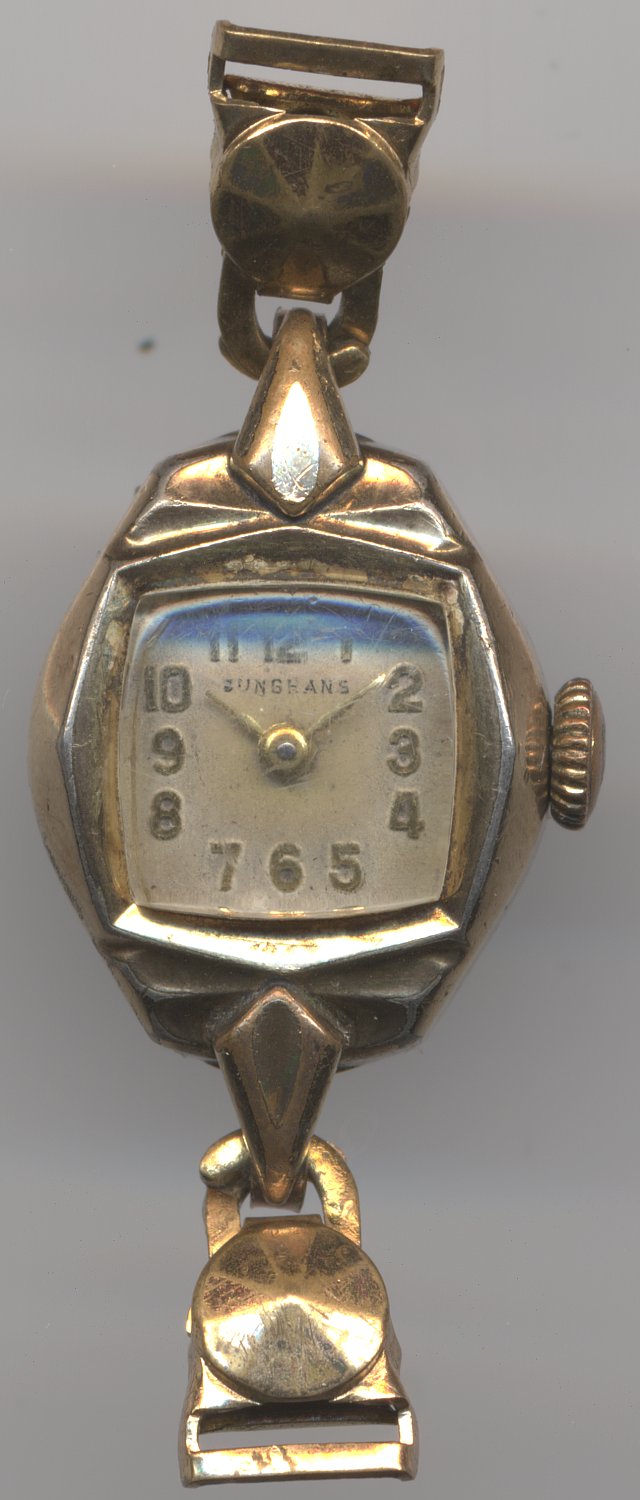

Junghans ladies' watch

Junghans ladies' watch

Junghans ladies' watch

Junghans ladies' watch
