Junghans J93/1 (693.83)

Description

The Junghans caliber J93/1 was often used in the fifties. It was available in different versions, with and without date, with different number of jewels and with and without center second.

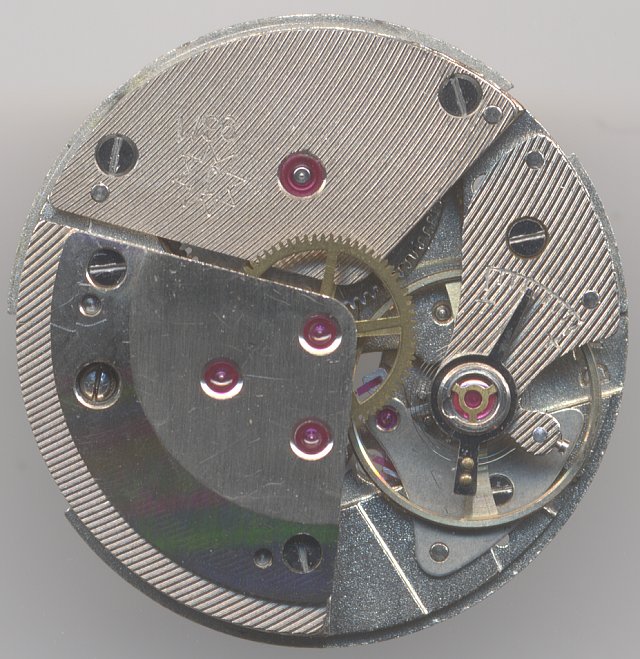

The large Glucydur balance is beared in an inhouse proction sytem with its typical large cap jewels. By using a large adjusting arm, the effective length of the hairspring can be regulated precisely, thus achieving the best possible performance.

Another typical feature of this movement is its quarter plate, which holds the anchor wheel with its long axle, the directly driven center second wheel and the third wheel. This construction is very service friendly. The specimen shown here uses seventeen jewels. To achieve this, the mainspring barrel runs in a jewel on the deck side. There’s no technical neccessity for this, but it was required for marketing the “must” of “17 Jewels”.

Another advantage of this movement was, that it could be put into the case, using the Trilastic shock absorbing system. For this system, there are three holes on the side, which can carry the elastic ends of this system.

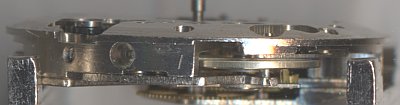

Junghans J93/1 (693.83): Detail: Preparation for Trilastic shock protection

Detail: Preparation for Trilastic shock protection

On the dial side, a rocking bar winding mechanism is used, as on many other Junghans movements, too. This winding mechanism is simpler and cheaper than a yoke mechanism, but might suffer on an outworn winding wheel.

Nevertheless, the winding mechanism on this movement is pretty well made, especially the spring-loaded click is a detail, which belongs to a “better” watch.

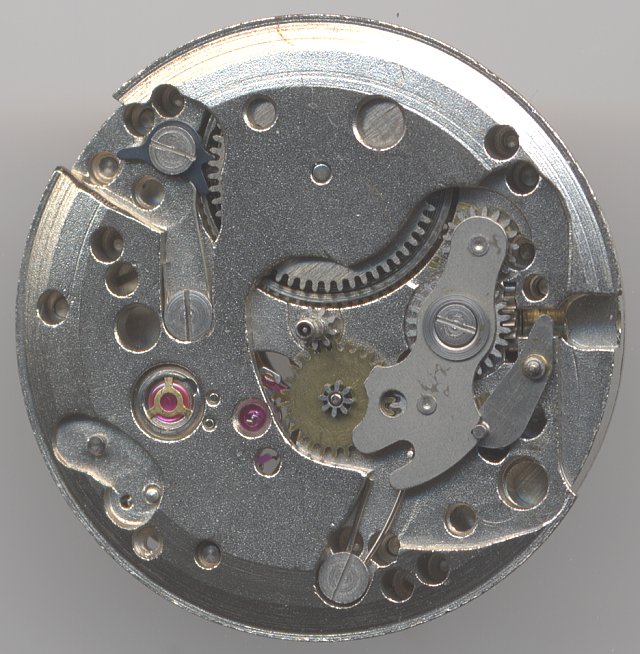

Junghans J93/1 (693.83): Junghans J93/1 dial side

Junghans J93/1 dial side

Technical data

Manufacturer:Junghans
Caliber:J93/1 (693.83)
Size:11 1/4'''
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Glucydur anular balance
Shock protection(s): Junghans
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:2 hole(s)
Features:
  • SCD (direct center seconds)
Production period:1954 - 1966
References: Flume: 1957 -
Mentioning in literature (years): 1954

Usage gallery

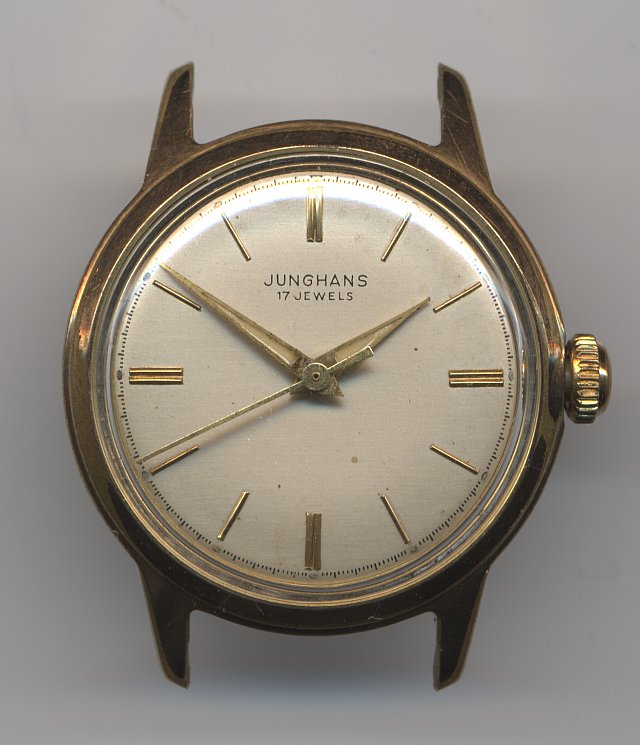

Junghans J93/1 (693.83): Junghans gents watch

Junghans gents watch
