Junghans J93S10 (693.02)

Description

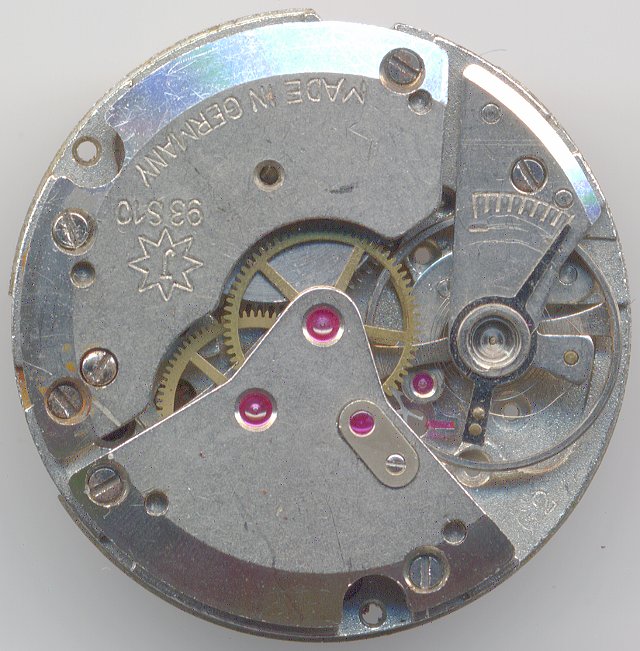

The Junghans J93S10 with date is one of the latest and last representative of the caliber 93 series, which was the base caliber for mens' watches for many years.

The specimen shown here is from 1962 and is “competely” equipped with 17 jewels (minute wheel is beared on both sides; the escapement wheel got a cap jewel on the movement side), a directly driven center second and a date indication.

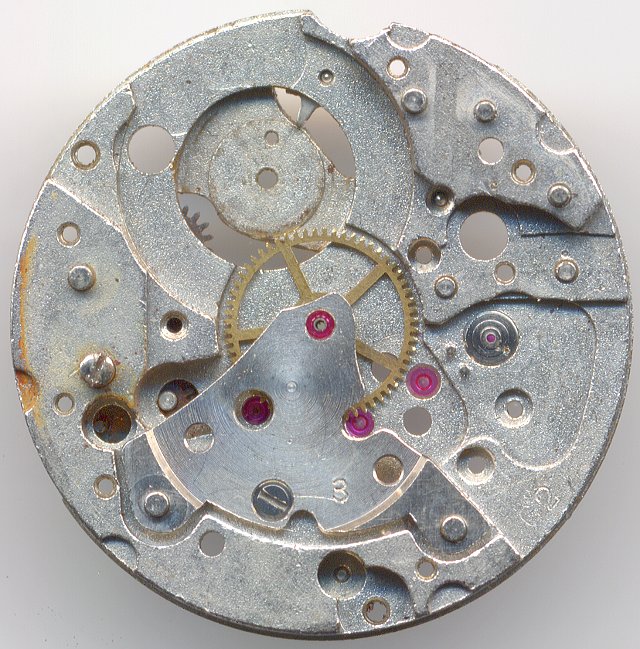

Junghans J93S10 (693.02): minute wheel bridge

minute wheel bridge

The 93S10 was a modern construction, since it already contains minute wheel cock, which allowed (unlike for example the J93/1 a flat construction although a directly driven center second was used.

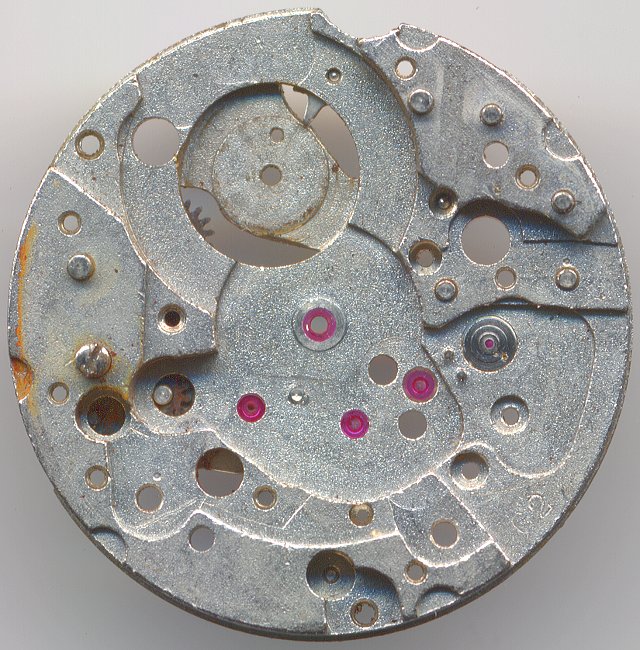

Junghans J93S10 (693.02): main plate

main plate

The rest of the movement construction is typical for Junghans with the very large two-arm ring balance and the long regulator arm on the balance cock, which helps in adjusting the effective length of the hairspring. The hairspring is fix connected with the balance cock.

Of course, the usual inhouse shock protection with the large cap jewel is used.

The escapement is a conventional pallet lever escapement.

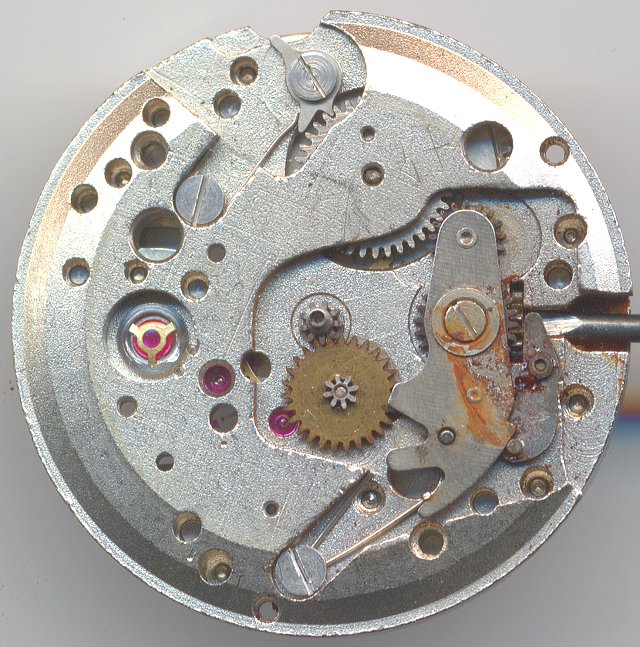

Junghans J93S10 (693.02): dial side view without date indication

dial side view without date indication

On the dial side, you see the rocking bar winding mechanism - a rather cheap, but here well made construction with an elaborate click mechanism.

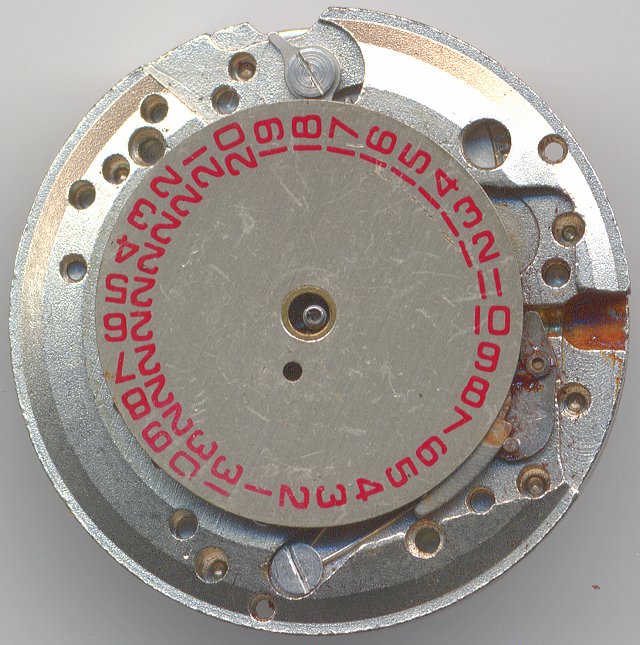

Junghans J93S10 (693.02): Junghans J93S10 dial side

Junghans J93S10 dial side

Technical data

Manufacturer:Junghans
Caliber:J93S10 (693.02)
Size:11''' (measured: 24,8mm)
A/h:18000
Number of jewels:17
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Junghans
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel
  • center minute wheel
  • mainspring barrel
Construction type:solid construction
Winding mechanism:rocking bar winding system
Setting lever spring:1 hole(s)
Features:
  • SCD (direct center seconds)
  • QG (date indication (aperture))
Production period:1954 - 1966

Usage gallery

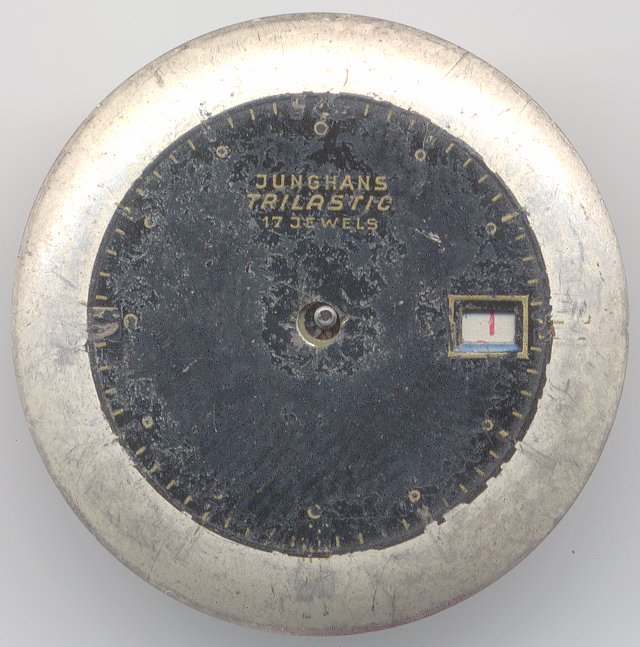

Junghans J93S10 (693.02): Junghans Trilastic gents watch  (dial only)

Junghans Trilastic gents watch (dial only)
