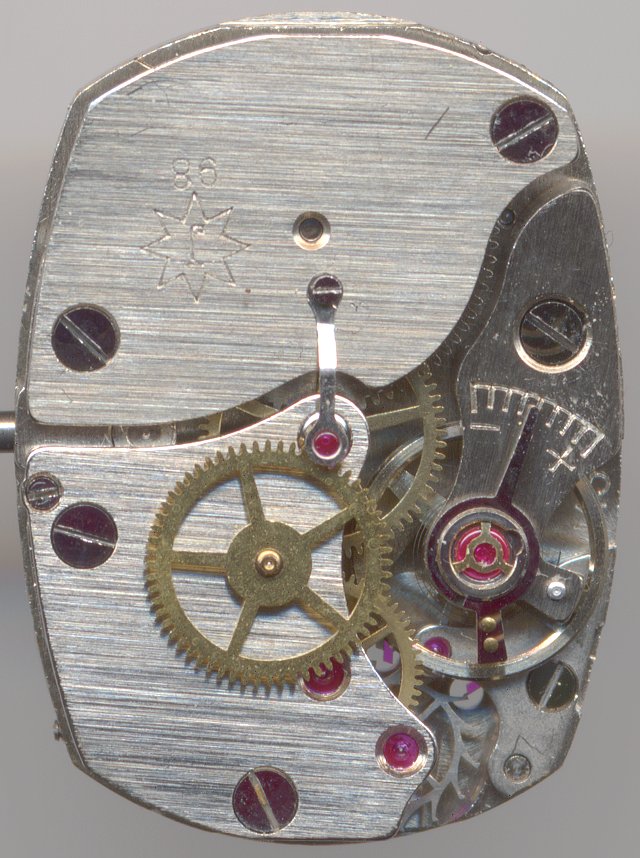

Junghans J98/3 (698.71)


Junghans J98/3 (698.71)

Junghans J98/3 (698.71)

Description

In the beginning of then 1950ies, Junghans launched the caliber 98, a form movement, which was very reliable and rugged due to its construction.

It uses a screwless(!) balance, which is secured by the two large inhouse shock protections, a pallet lever escapement and jewels on every axle, except the minute gear.

Additionally, the Junghans J98 has got an indirectly driven center second hand, which is beared in a flexibly held ruby.

base plate

base plate

The movement is constructed in a cost-efficient way and contains a rocking bar winding mechanism on the dial side.

This movement was so reliably, that was later also available in a selfwinding version.

Junghans J98/3 dial side

Junghans J98/3 dial side

Technical data

Manufacturer:Junghans
Caliber:J98/3
Size:8 3/4 x 12'''
A/h:18000
Number of jewels:16
Escapement:Pallet lever
Balance types: Nickel anular balance
Shock protection(s): Junghans
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Construction type:pillar construction
Winding mechanism:yoke winding system
Setting lever spring:2 hole(s)
Features:
  • SCI (indirect center seconds)
Production period:1952 - 1955
References: Flume: 1952 36

Usage gallery

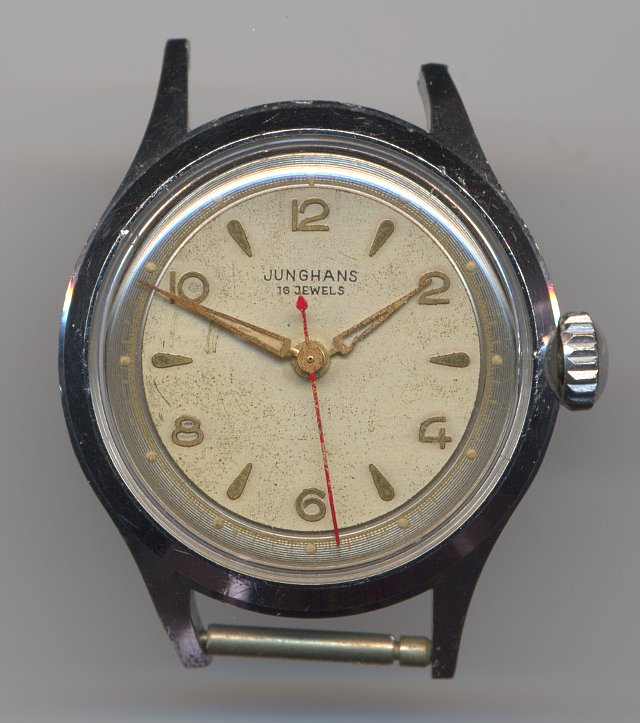

Junghans gents watch

Junghans gents watch
