Kasper 100


Kasper 100

Kasper 100

Description

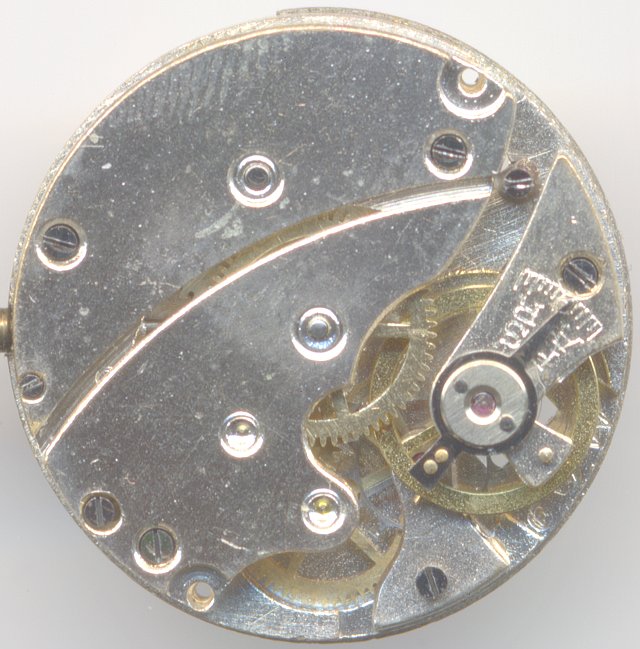

The cylinder movement Kasper 100 is from german pre-WWII production.

Unlike most other contemporary cylinder movements, this one already uses silver-toned plates and bridges.

Video on YouTube

Of course, the ring balance is not shock protected.

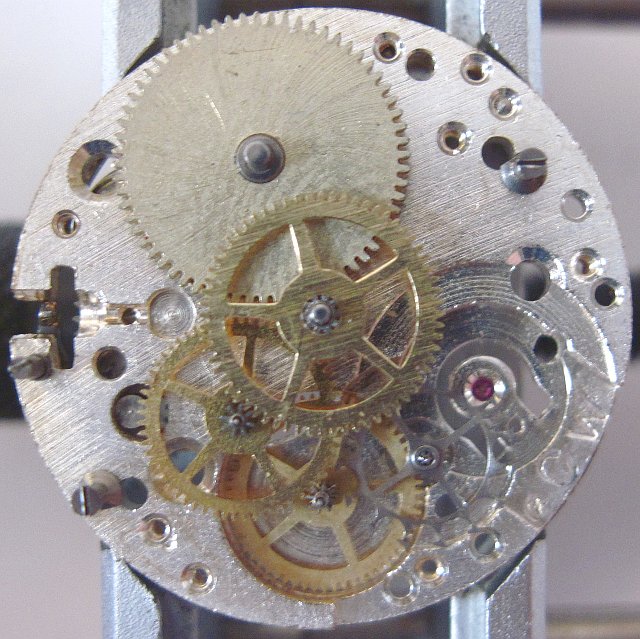

gear train

gear train

The Kasper 100 uses 6 ruby bearings / cap jewels: Four for the balance and two for the bearing of the cylinder wheel.

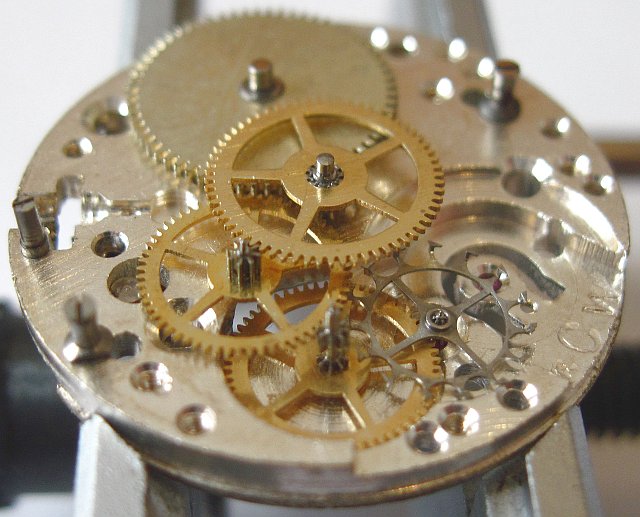

Seitenansicht des Räderwerks

Seitenansicht des Räderwerks

Even though the specimen shown here runs pretty strong and steady after a revision, it shows a completely irregular pattern on the timegrapher. This is the result of the tips of the cylinder wheel permantly having contact with the balance cylinder. The noise of it completely fools the timegrapher.

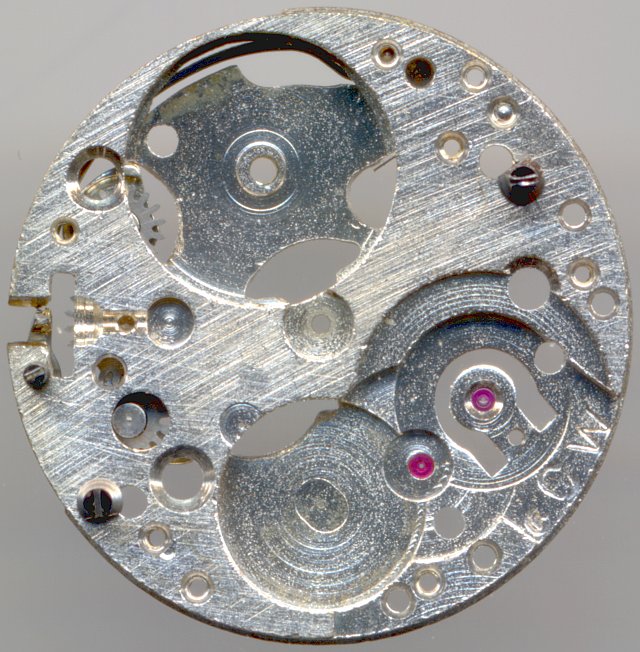

main plate

main plate

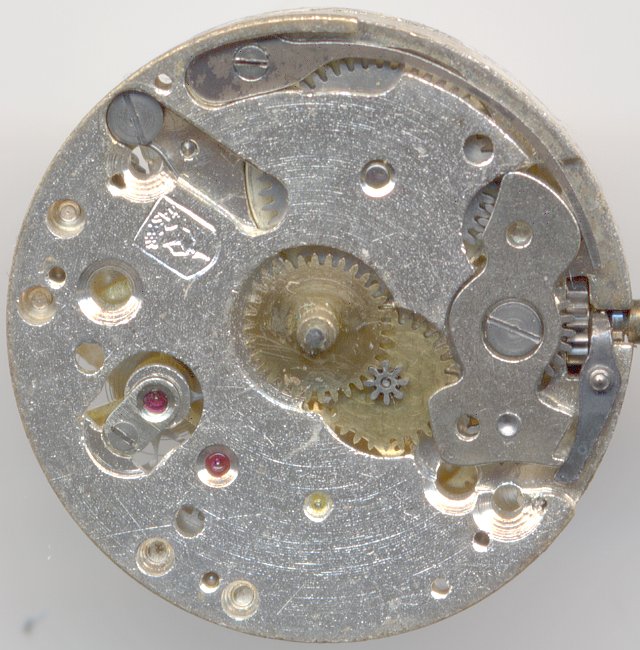

On the dial side, you can see the rocking bar winding mechanism and the very simple click mechanism, which consists only of a simple spring.

Kasper 100 dial side

Kasper 100 dial side

Technical data

Manufacturer:Kasper
Caliber:100
Number of jewels:6
Escapement:Cylinder
Shock protection(s): none
Balance bearing / direction hairspring:Clockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • escape wheel
  • seconds wheel, third wheel, center minute wheel, mainspring barrel
Construction type:solid construction
Winding mechanism:rocking bar winding system
Setting lever spring:4 hole(s)
Functions:hour, minute
A/h:18000
Size:8 3/4''' (measured: 19,0mm)
Literature: Flume: 1947 98

Usage gallery

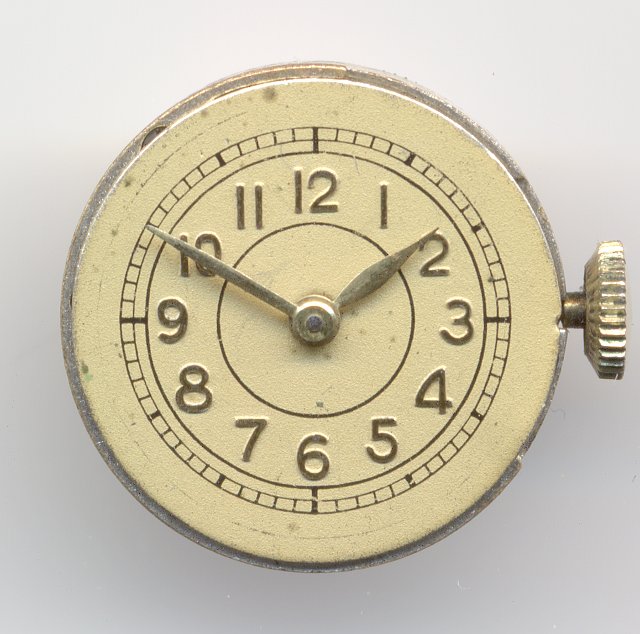

anonymous ladies' watch  (dial only)

anonymous ladies' watch (dial only)
