Kasper 600


Kasper 600 |

Kasper 600

Description

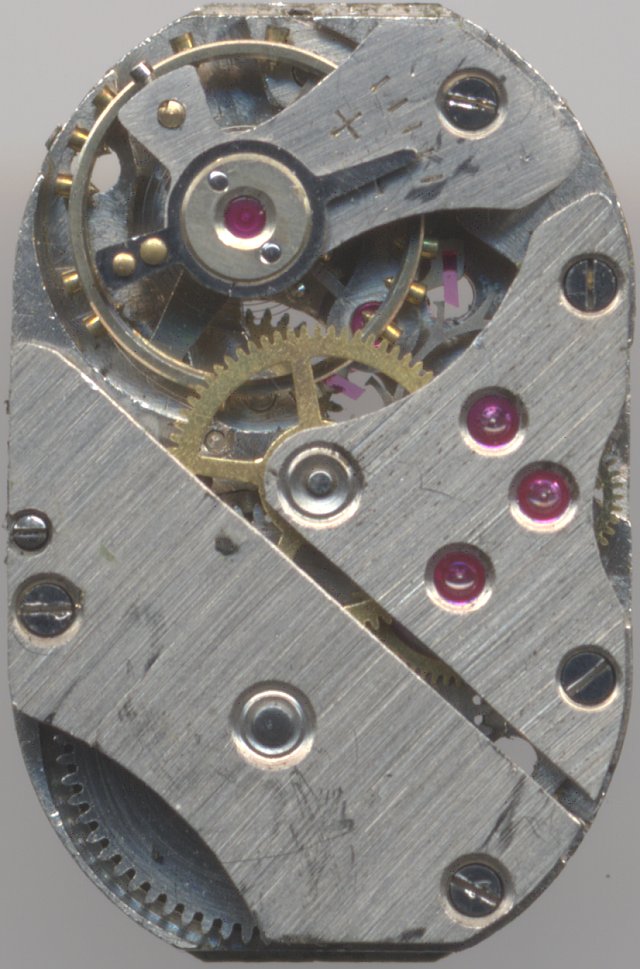

The Kasper 600 is a typical ladies’ watch form movement, made in Germany.

On the construction side, everything is very familiar: With the non shock-protected screw balance, the movement with 15 jewels and the rocking bar winding mechanism on the dial side, this is a very common middle-class movement of the 1950ies.

The version shown here is the newer version of this movement with a thickness of the plate of 2.3mm

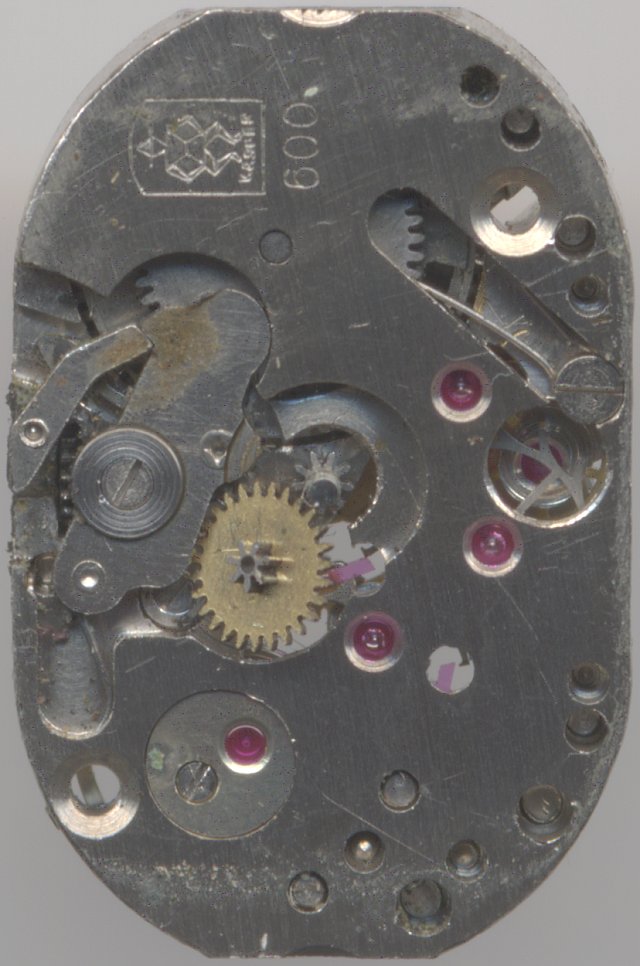

Kasper 600: Kasper 600 dial side

Kasper 600 dial side

Technical data

Manufacturer:Kasper
Caliber:600
Size:5 3/4 x 8 3/4'''
A/h:18000
lift angle:40°
Number of jewels:15
Escapement:Pallet lever
Balance types:Nickel screw balance
Shock protection(s):none
Balance bearing / direction hairspring:Counterclockwise
Moveable stud:no
Adjust mechanism:Long regulator arm
Construction:
  • lever
  • escape wheel, seconds wheel, third wheel, center minute wheel
  • mainspring barrel
Winding mechanism:rocking bar winding system
Setting lever spring:1 hole
References:Flume: 1957 48
Hint: The jewel count, the types of balances used, and the shock protections employed refer only to the specimens held in the archive and are therefore not relevant for the precise identification of the movement.

Usage gallery

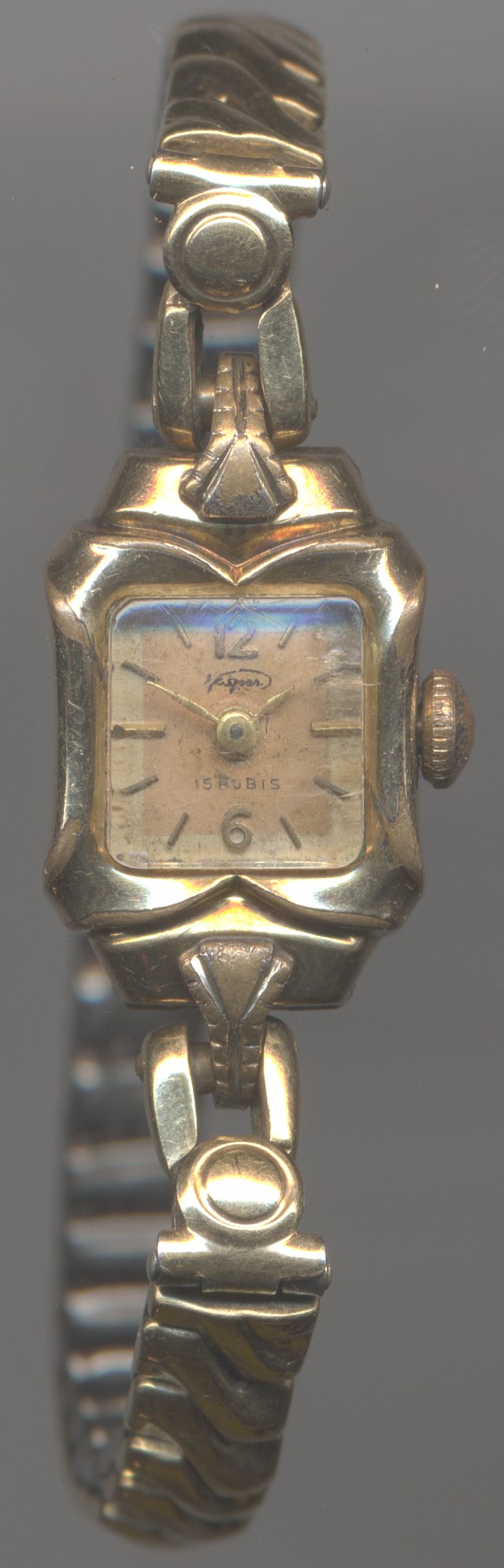

Kasper 600: Kasper ladies' watch

Kasper ladies' watch
